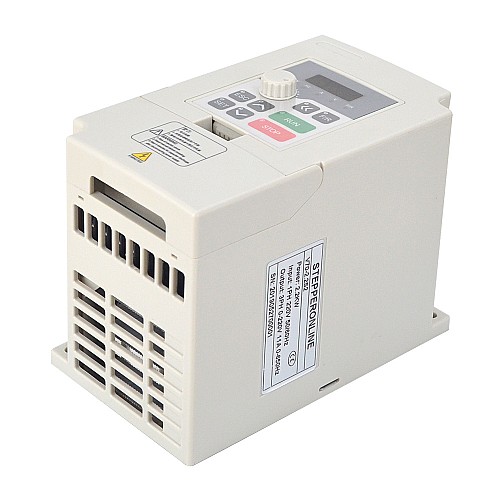

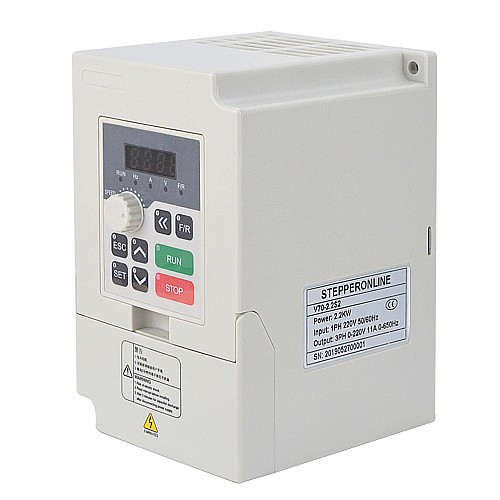

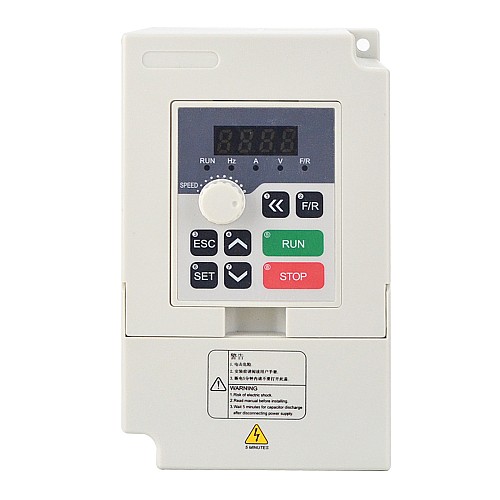

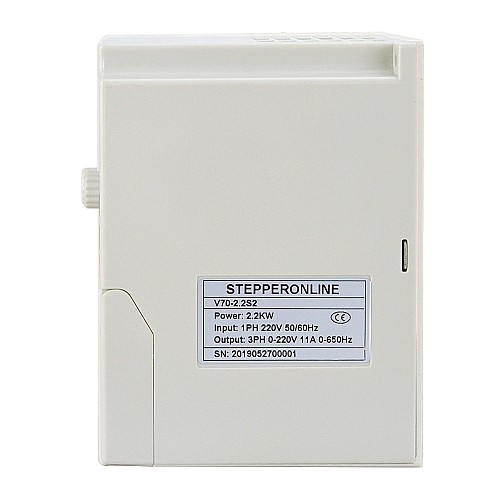

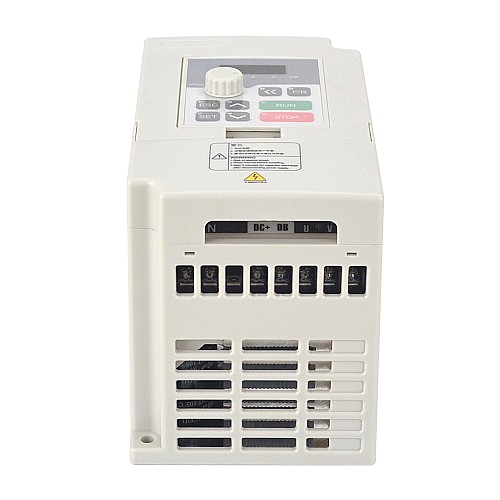

STEPPERONLINE CNC VFD 2.2KW 3HP 20A 110V Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control

0 reviews - Write a review

A$0.00

In Stock: 1
Model: V70-2.2S1
Gross Weight: 1.30kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specifications:

Manufacturer Part Number: V70-2.2S1
Input Voltage: 110V(Single-phase)
Input Frequency: 50/60Hz
Power: 2.2KW
Capacity of driver: 4.4KVA
Output current: 20A
Applicable motor: 2.2KW
Control mode: V/F, Vector control
Communication control: RS-485
Operating temperature: -10 - 40℃
Humidity: 0 - 95%(without condensation)
Vibration: Less than 0.5G
Overload protection: Electric relay protection motor driver(constant torque: 150% per minute, fans: 120% per minute)
FUSE protection: When the fuse blows, the motor stops
Over-voltage protection: DC voltage > 200V
Low-voltage protection: DC voltage < 100V

Frequency Control:

Frequency Range: 0.1 - 1000Hz
Accuracy: 0.1%(-10 - 40℃) for digital; 0.1%(25 ± 10℃) for analog
Setting Resolution: 0.1Hz for digital; 1% of Max. operating frequency for analog
Output Resolution: 0.1Hz
Keyboard Setting Mode: Set as ← ▲ ▼ directly
Analog Setting Mode: External voltage 0 - 5V, 0 - 10V, 4 - 20mA, 0 - 20mA
Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively

Variable Frequency Drive Specification
Capacity of Driver	4.4
Horsepower(Hp)	3
Input Frequency	50 - 60Hz
Input Voltage	1PH 110VAC
Output Current	20A
Output Power	3HP / 2.2Kw
