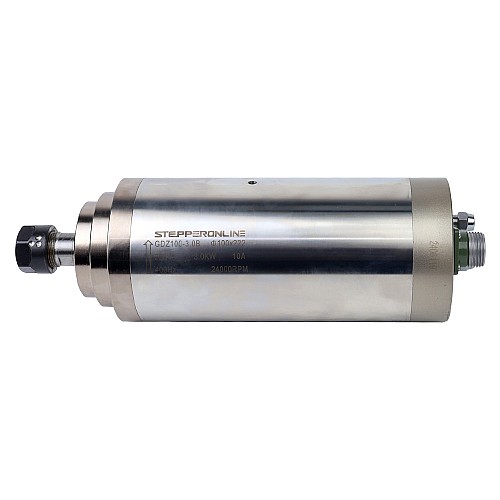

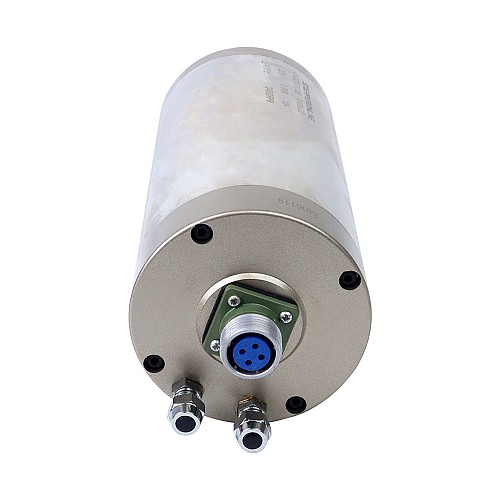

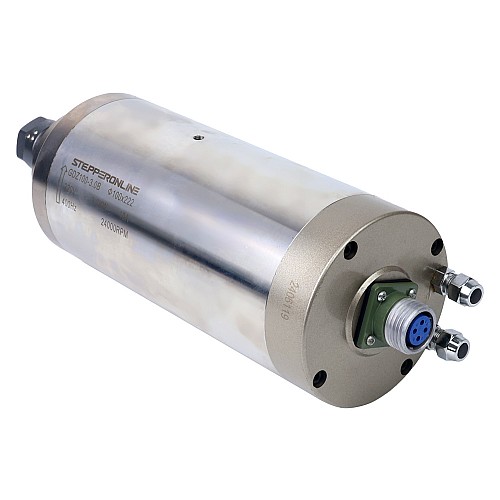

CNC Spindle Motor Water Cooled 220V 3.0KW 24000RPM 400Hz ER20 Collet

0 reviews - Write a review

A$273.30

5 + A$265.33

10 + A$257.79

50 + A$250.69

100 + A$243.95

In Stock: 200
Model: GDZ100-3.0B
Gross Weight: 9.50kg
Certificated: ISO

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

Manufacturer Part Number: GDZ100-3.0B
Material: Stainless steel
Size: Ø100x222(Middle body diameter: 100mm, Length: 222mm)
Power: 3KW
Voltage: 220VAC
Current: 12A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Bearings: 2x7005C(P4 ), 1x7003C(P4)
Weight: 9.1kg

Operating Environment
Cooling Method	Water cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Collet Size	ER20
Diameter(mm)	100
Material	Stainless steel
Power(Kw)	3.0
Shape	Round
Voltage(VAC)	220
Electrical Specification
Current(A)	12
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7005C(P4 ), 1x7003C(P4)
Inventory Method	Dedicated Inventory
Weight(Kg)	9.1
