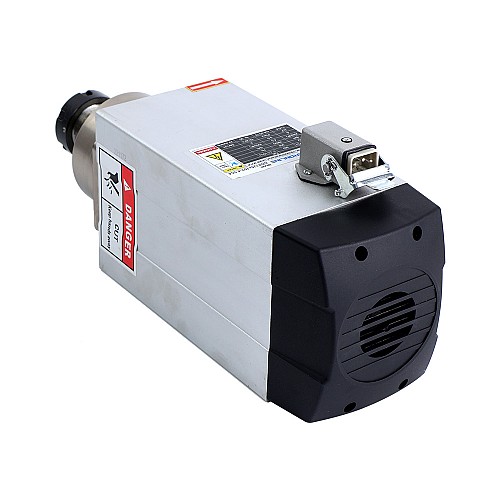

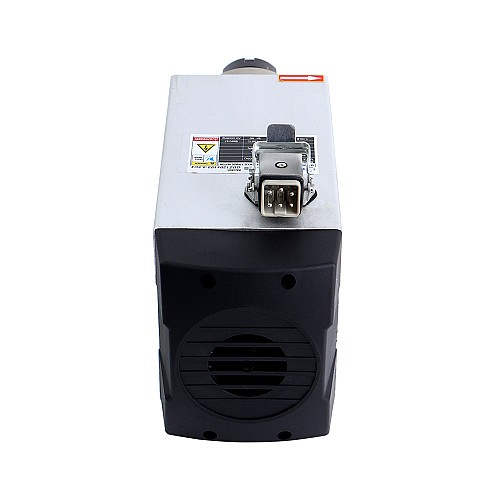

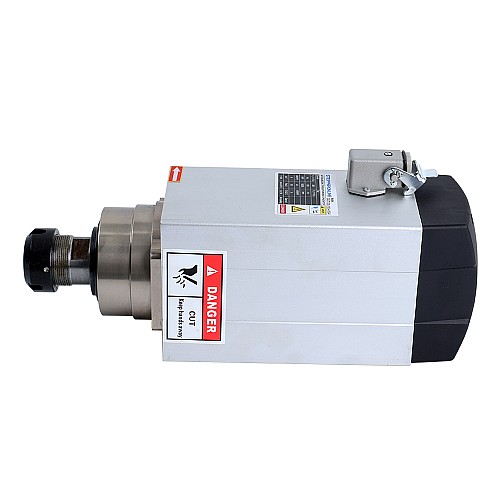

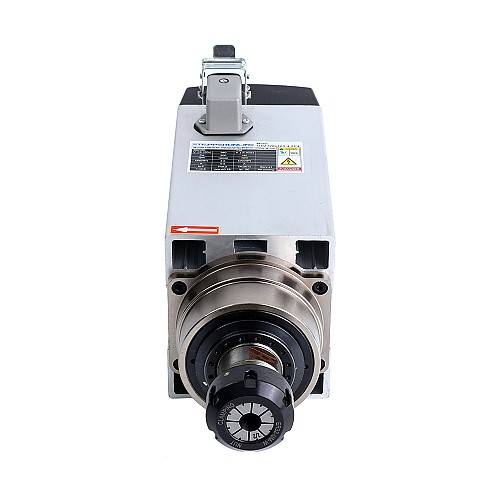

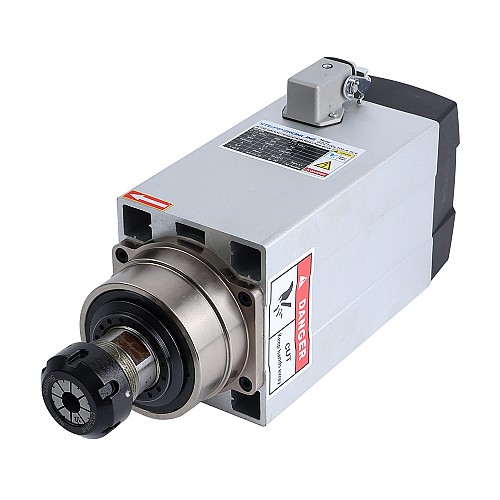

Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Machine

Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 380V AC Spindle 4 Bearings - GDZ120x103-4.5C4 | StepperOnline AU
Square Spindle Motor Air Cooled 380V 4.5KW 18000RPM 300Hz ER32 Collet CNC Machine
0 reviews - Write a review
A$0.00
  • In Stock: 1
  • Model: GDZ120x103-4.5C4
  • Gross Weight: 12.90kg
  • Certificated: ISO
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

  • Manufacturer Part Number: GDZ120x103-4.5C4
  • Material: Stainless steel
  • Size: 191x103(Length: 191 mm, Width:103 mm)
  • Power: 4.5 KW
  • Voltage: 380 VAC
  • Current: 9.5 A
  • Frequency: 0 ~ 300 Hz
  • Speed: 0 ~ 18000 RPM
  • Cooling: Air cooled
  • Runout off: Less than 0.005 mm
  • Bearing Lubrication: Grease
  • Collet size: ER32 Collet(6 mm, 12.7 mm)
  • Bearings: 2x7008C(P4), 2x7004C(P4)
  • Weight: 12.4 kg
Operating Environment
Cooling Method Air cooled
Spindle Motor Specification
Bearing Lubrication Grease
Body Height(mm) 120
Body Length(mm) 191
Body Width(mm) 103
Collet Size ER32
Material Stainless steel
Power(Kw) 4.5
Shape Square
Voltage(VAC) 380
Electrical Specification
Current(A) 9.5
Frequency(Hz) 0 - 300
Speed(rpm) 0 - 18000
Physical Specification
Bearings 2x7008C(P4), 2x7004C(P4)
Weight(Kg) 12.4
File Size
GDZ120103-4.5C4_Full_Datasheet.pdf 93.96KB Download
