Name: RS-25-5 | RS-25-5 MEANWELL 25W Single Output Switching Power Supply | StepperOnline AU
Brand: MEANWELL
SKU: RS-25-5
Price: 15.25 AUD
Availability: InStock

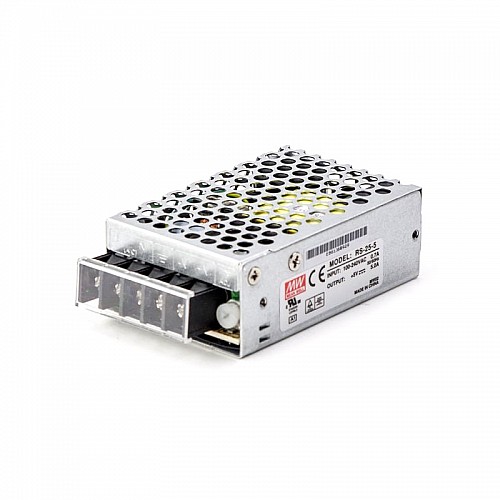

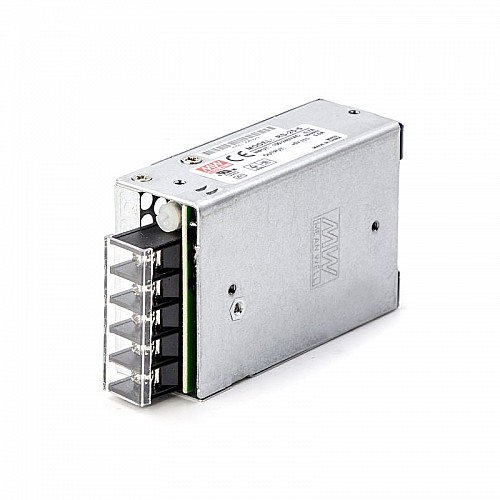

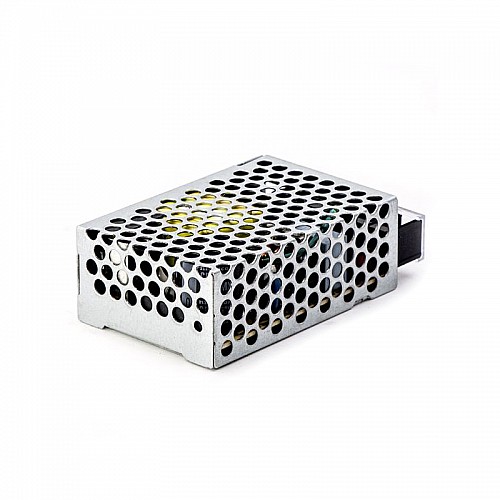

RS-25-5 MEANWELL 25W Single Output Switching Power Supply

0 reviews - Write a review

A$15.25

5 + A$14.82

10 + A$14.38

50 + A$13.98

100 + A$13.62

In Stock: 200
Brand: MEANWELL
Model: RS-25-5
Gross Weight: 0.27kg
Certificated: ISO, CE, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Features

Brand MEANWELL
5V DC 5A output
AC input voltage range: 88 ~ 264VAC
Rated power: 25W
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up tp 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Electrical Specification
Efficiency(%)	78.5%
Max. Output Current(A)	5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	78 x 51 x 28
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	88 - 264 / 125 - 373
Output Voltage(VDC)	5
PFC Function	No
Power Type	Switching Power Supply
Power(W)	25
Physical Specification
Inventory Method	Dedicated Inventory
