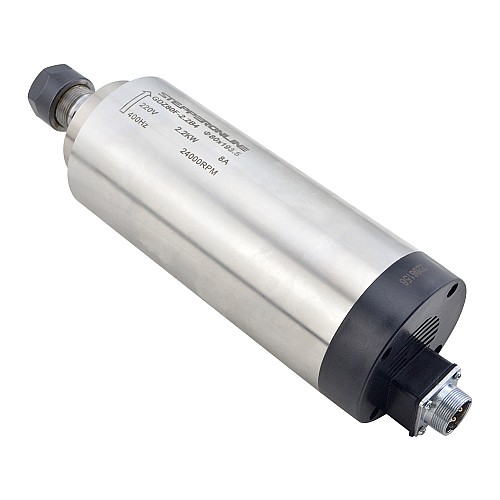

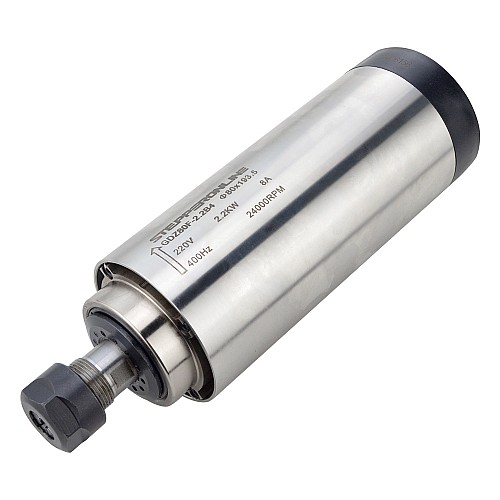

Spindle Motor Air Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet Wood Engraving Milling Machine 4 Bearings
0 reviews - Write a review
A$184.32
5 + A$178.94
10 + A$173.86
50 + A$169.07
100 + A$164.53
  • In Stock: Pre-order
  • Model: GDZ80F-2.2B4
  • Gross Weight: 5.15kg
  • Certificated: ISO

Click country for live inventory

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Specification

  • Manufacturer Part Number: GDZ80F-2.2B4
  • Material: Stainless steel
  • Size: Ø80x193.5(Middle body diameter: 80 mm, Length:193.5mm)
  • Power: 2.2KW
  • Voltage: 220VAC
  • Current: 8A
  • Frequency: 0 ~ 400Hz
  • Speed: 0 ~ 24000RPM
  • Cooling: Air cooled
  • Bearing Lubrication: Grease

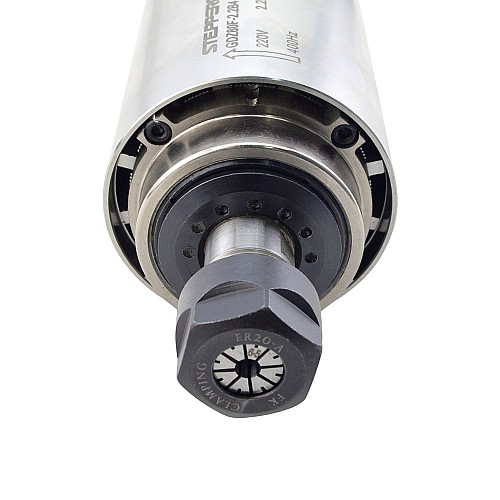

  • Collet size: ER20 Collet(6mm)
  • Weight: 4.75kg

Resources

Operating Environment
Cooling Method Air cooled
Spindle Motor Specification
Bearing Lubrication Grease
Body Length(mm) 193.5
Collet Size ER20
Diameter(mm) 80
Material Stainless steel
Power(Kw) 2.2
Shape Round
Voltage(VAC) 220
Electrical Specification
Current(A) 8
Frequency(Hz) 0 - 400
Speed(rpm) 0 - 24000
Physical Specification
Bearings 2x7005, 2x7002
Weight(Kg) 4.75
File Size
GDZ80F-2.2B4_Full_Datasheet.pdf 80.54KB Download
GDZ80F-2.2B4.STEP 3.17MB Download
