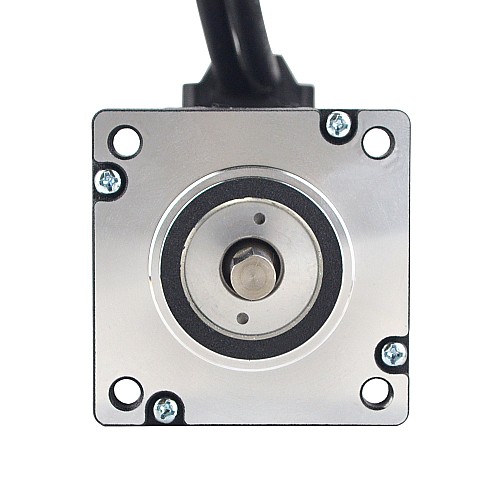

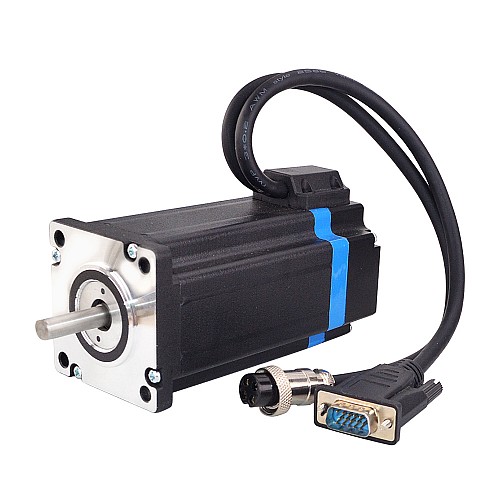

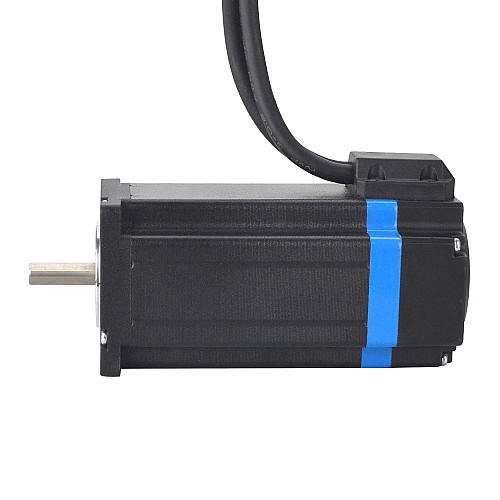

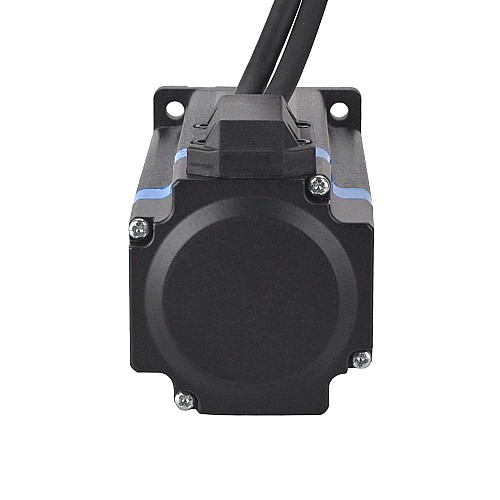

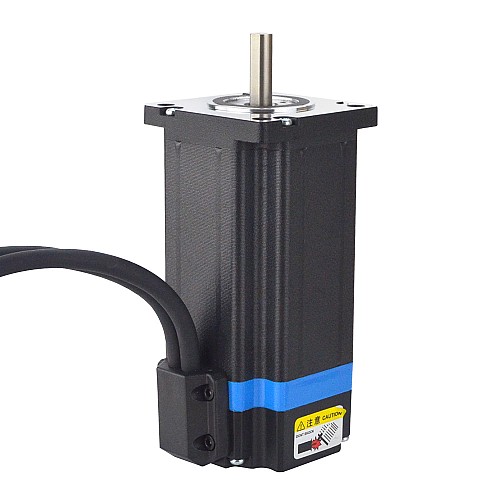

S Series Nema 24 Closed Loop Stepper Motor 4.25 Nm/601.97 oz.in Encoder 1000PPR(4000CPR)

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 24HS40-5804D-E1000
Gross Weight: 2.00kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Motor Specification

Manufacturer Part Number: 24HS40-5804D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Frame Size: 60 x 60mm
Holding Torque: 4.25 N.m(601.97 oz.in)
Rated Current/phase: 5.8 A
Shaft Diameter: Φ8 mm
Full D-cut Shaft Length: 25 mm
Phase Resistance: 0.82 ohm
Inductance: 2.7 mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 300 mm

Encoder Specification

Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : Φ8mm
Output Frequency : ≤1MHz
Running Speed : ≤5000rpm
IP Protection : IP20

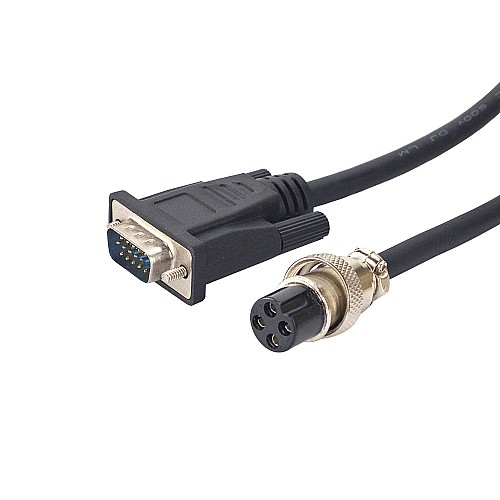

Connection

A+	A-	B+	B-
White	Green	Blue	Black

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 24HS40-5004D-E1000.
