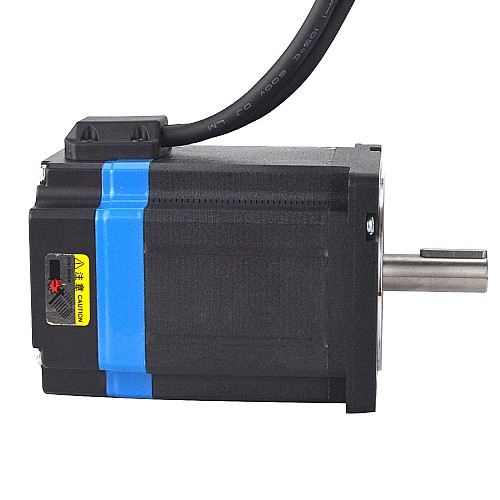

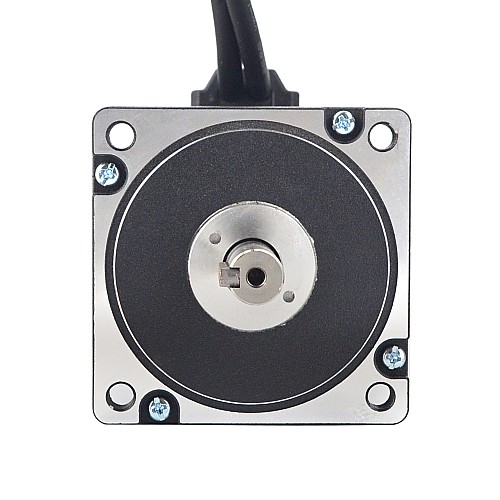

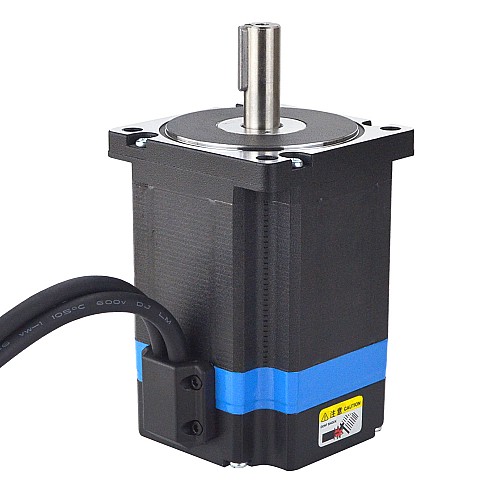

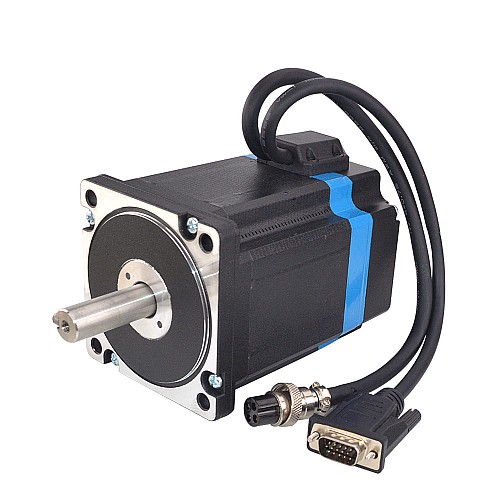

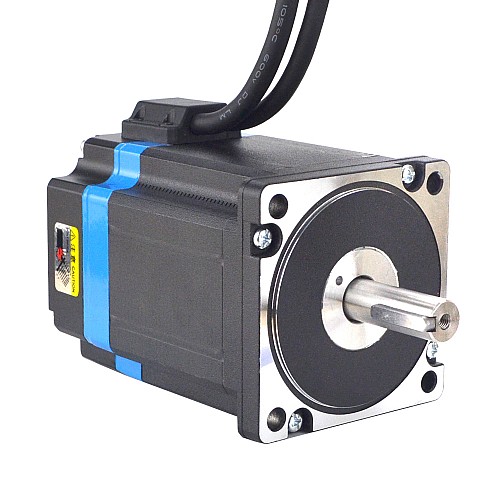

Nema 34 Closed Loop Stepper Motor 5.8Nm/821.35oz.in Encoder 1000PPR
A$0.00
- In Stock: 1
- Model: 34HS38-6004D-E1000
- Gross Weight: 3.60kg
- Certificated: ISO, CE, UKCA, RoHS
This product has a minimum quantity of 999
- 2.
CM5M-20: RV-4 AWG20 4.7 m(185") Long Motor Extension Cable with GX16 Aviation Plug
1.
CM3M-20: RV-4 AWG20 2.7 m(106") Long Motor Extension Cable with GX16 Aviation Plug
CM3M-20: RV-4 AWG20 2.7 m(106") Long Motor Extension Cable with GX16 Aviation Plug
We recommend you getting an encoder extension cable for this motor, here are some for your choice:
- 3.
CE5M: 4.7m(185") Encoder Extension Cable for Closed Loop Stepper Motor
1.
CE2M: 1.7 m(67") Encoder Extension Cable for Closed Loop Stepper Motor
CE2M: 1.7 m(67") Encoder Extension Cable for Closed Loop Stepper Motor
2.
CE3M: 2.7m(106") Encoder Extension Cable for Closed Loop Stepper Motor
CE3M: 2.7m(106") Encoder Extension Cable for Closed Loop Stepper Motor
Motor Specification
- Manufacturer Part Number: 34HS38-6004D-E1000
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Frame Size: 86 x 86 mm
- Holding Torque: 5.8 Nm(821.35 oz.in)
- Rated Current/phase: 6 A
- Shaft Diameter: Φ14 mm
- Shaft Length: 40 mm
- Key-Way Length: 25 mm
- Phase Resistance: 0.32 ohm
- Inductance: 2.8 mH ± 20%(1KHz)
- Number of Leads: 4
- Lead Length: 300 mm
Encoder Specification
- Driving Voltage : 5V
- Output current : 55mA
- Resolution : 1000ppr
- Output Signal : 2 Channels
- Bore Diameter : Φ8mm
- Output Frequency : ≤1MHz
- Running Speed : ≤5000rpm
- IP Protection : IP20
Connection
A+ |
A- |
B+ |
B- |
White |
Green |
Blue |
Black |
Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 34HS39-6004D-E1000.
