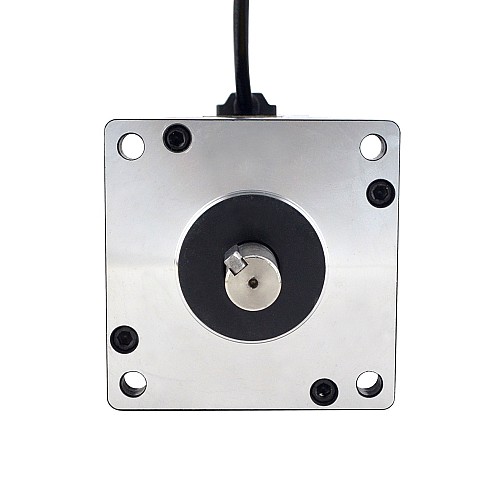

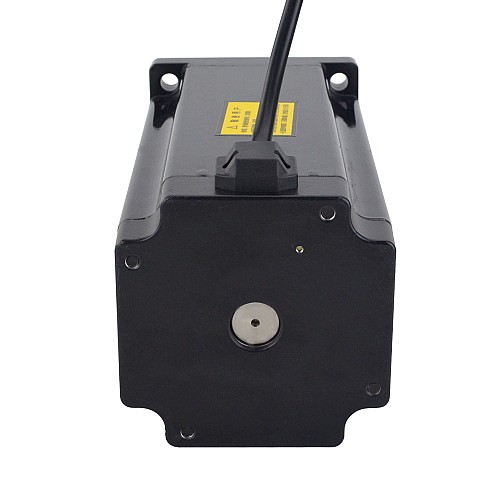

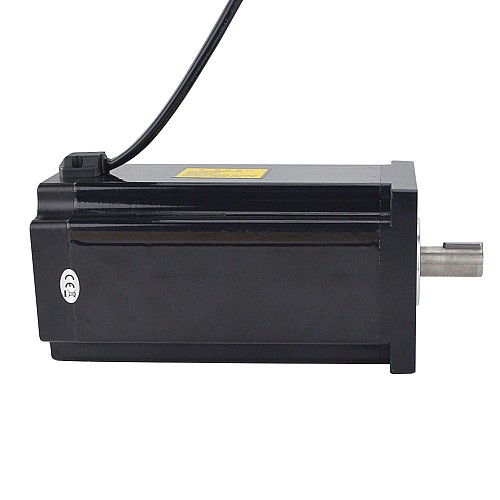

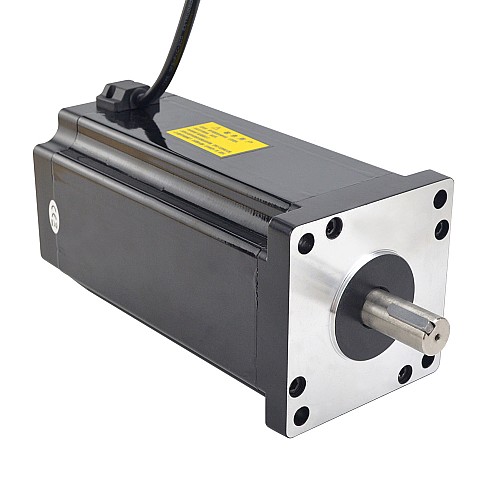

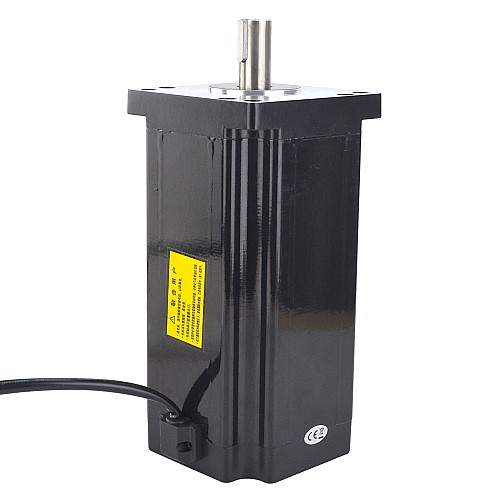

Nema 42 3-phase Stepper Motor Bipolar 22Nm(3115.46oz.in) 5.0A 110x110x221.5mm

Discontinued

Nema 42 3-phase Stepper Motor Bipolar 22Nm(3115.46oz.in) 5.0A 110x110x221.5mm

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 42HT87-5003S
Gross Weight: 13.80kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 42HT87-5003S
Number of Phase: 3
Step Angle: 1.2deg
Holding Torque: 22Nm(3115.46oz.in)
Rated Current/phase: 5A
Phase Resistance: 2.4ohms± 10%
Inductance: 24.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 110 x 110mm
Body Length: 221.5mm
Shaft Diameter: Φ19mm
Shaft Length: 42mm
keyway Shaft Length: 25mm
Number of Leads: 3
Lead Length: 300mm
Weight: 13.1kg

Connection

U	V	W
RED	YEL	GRN

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	2200
Holding Torque(oz.in)	3115.46
Inductance(mH)	24.4
No. of Phase	3
Phase Resistance(ohms)	2.4
Rated Current(A)	5
Step Angle(deg.)	1.2
Physical Specification
Body Length(mm)	221.5
Frame Size(mm)	Nema 42 (110 x 110)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	3
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	19
Shaft Length(mm)	42
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	13100
