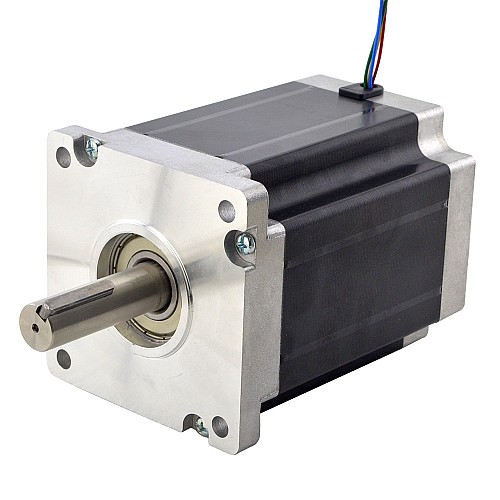

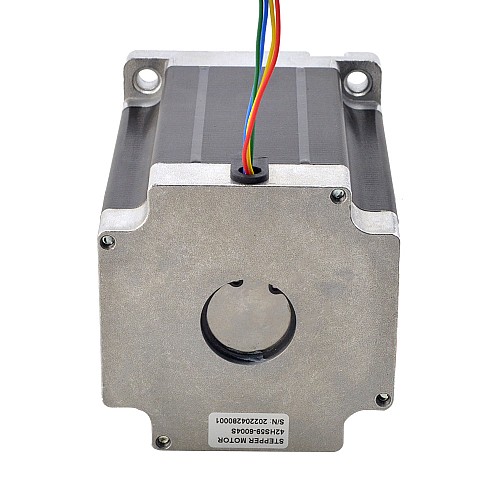

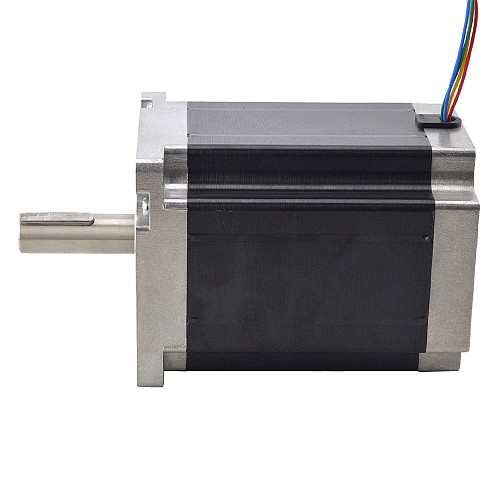

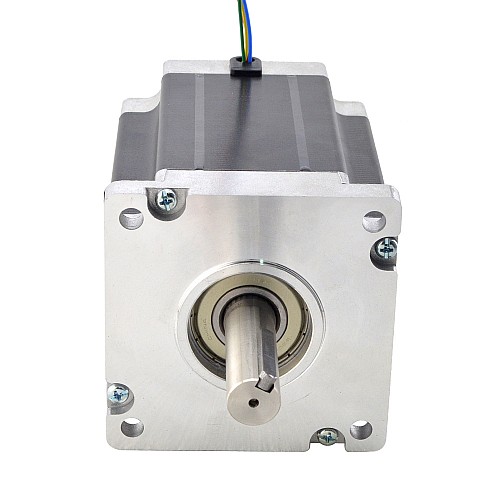

Nema 42 CNC Stepper Motor Bipolar 22Nm(3115.46oz.in) 6.0A 110x110x150mm 4 Wires

1 reviews - Write a review

A$0.00

In Stock: 1
Model: 42HS59-6004S
Gross Weight: 12.00kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This Nema 42 CNC stepper motor with size 110x110x150mm. It has 4 wires, each phase draws 6A, with holding torque 22Nm(3115.46oz.in).

Electrical Specification

Manufacturer Part Number: 42HS59-6004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 22Nm(3115.46oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.75±10%ohms
Inductance: 13.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 110 x 110mm
Body Length: 150mm
Shaft Diameter: Φ19mm
Shaft Length: 55.37mm
Key Way Length: 35mm
Number of Leads: 4
Cable Length: 500mm
Weight: 10.9kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 42HS59-7004S.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	2200
Holding Torque(oz.in)	3115.46
Inductance(mH)	13.5
Phase Resistance(ohms)	0.75
Rated Current(A)	6
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	150
Frame Size(mm)	Nema 42 (110 x 110)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	19
Shaft Length(mm)	55.37
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	10900
