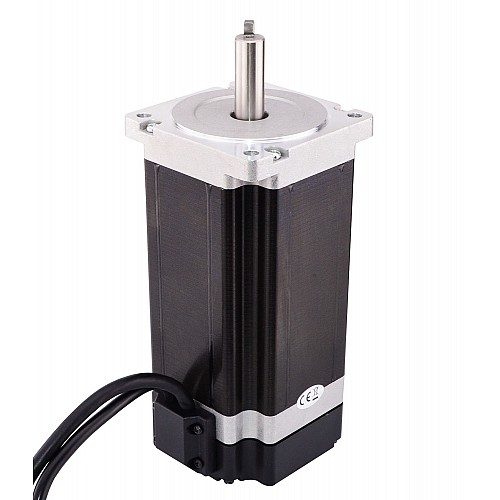

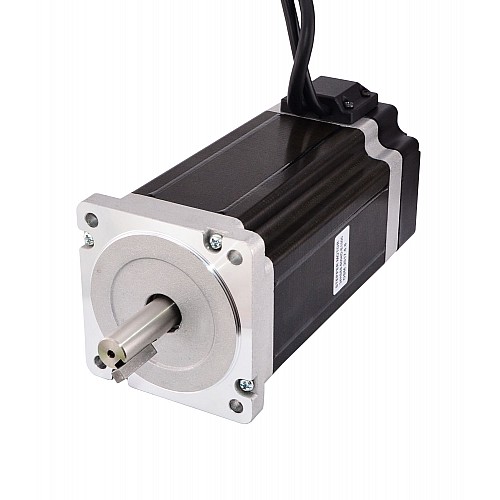

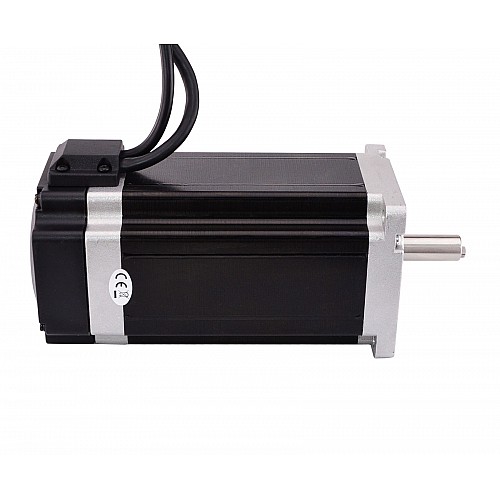

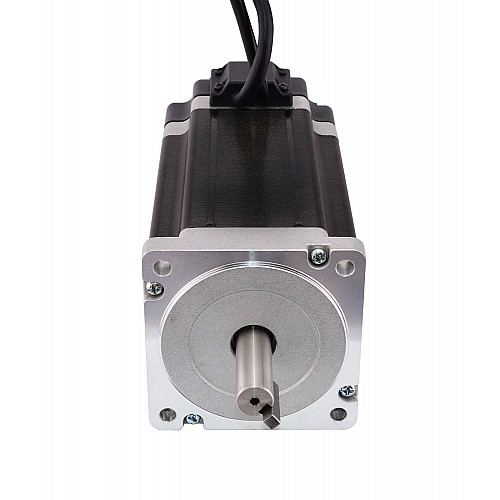

Nema 34 Closed Loop Stepper Motor 13.0Nm/1841oz.in Encoder 1000CPR

1 reviews - Write a review

A$0.00

In Stock: 1
Model: 34HS59-5004D-E1000
Gross Weight: 6.00kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Motor Specification

Manufacturer Part Number: 34HS59-5004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5A
Voltage: 5V
Phase Resistance: 1ohms
Inductance: 11mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : 8mm
Output Frequency : ≤1MHz
Running Speed : 5000rpm
IP Protection : IP20

Connection

A+	A-	B+	B-
Black	Red	Yellow	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 34HS59-6004D-E1000.
