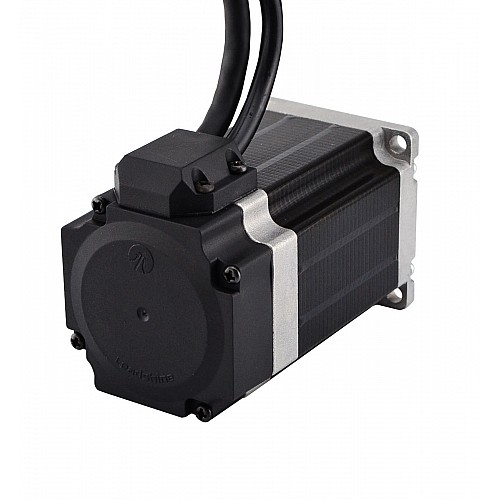

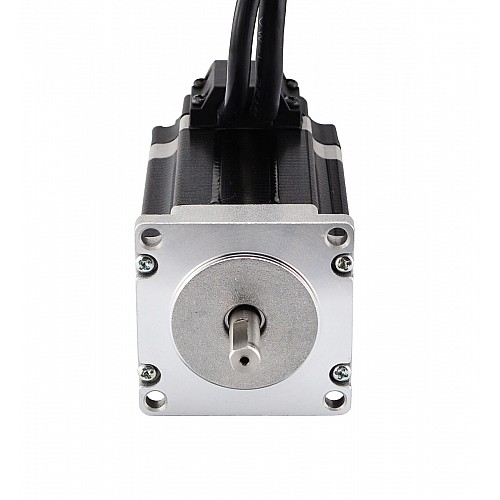

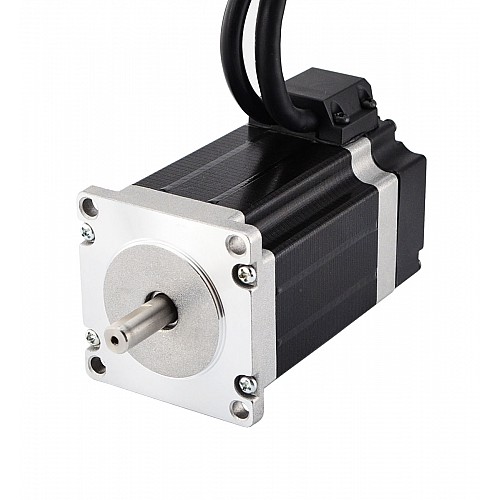

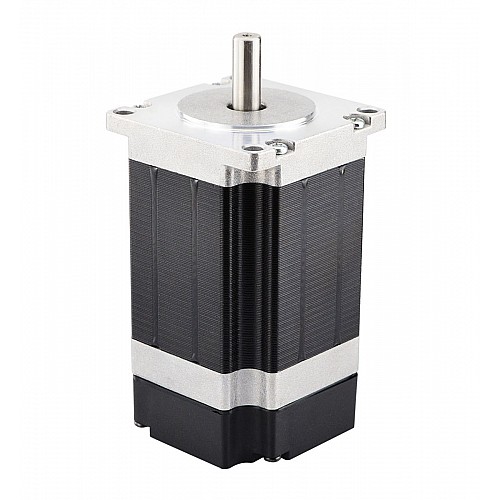

Nema 23 Closed Loop Stepper Motor 1.9Nm/269oz.in Encoder 1000CPR

1 reviews - Write a review

A$0.00

In Stock: 1
Model: 23HS30-2804D-E1000
Gross Weight: 1.33kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Motor Specification

Manufacturer Part Number: 23HS30-2804D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 1.89Nm(267.6oz.in)
Rated Current/phase: 2.8A
Voltage: 3.2V
Phase Resistance: 1.13ohms
Inductance: 5.4mH ± 20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : Φ8mm
Output Frequency : ≤1MHz
Running Speed : ≤5000rpm
IP Protection : IP20

Connection

A+	A-	B+	B-
Green	Red	Yellow	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23HS30-5004D-E1000.
