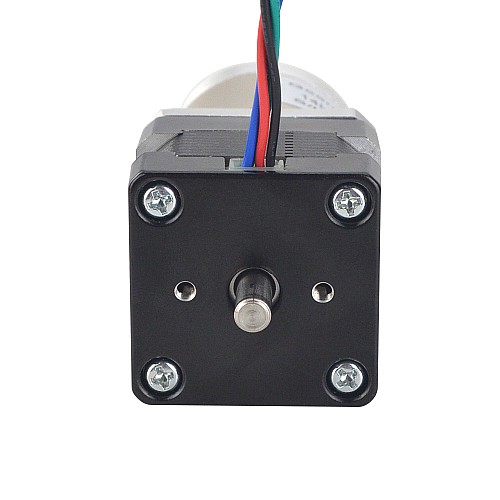

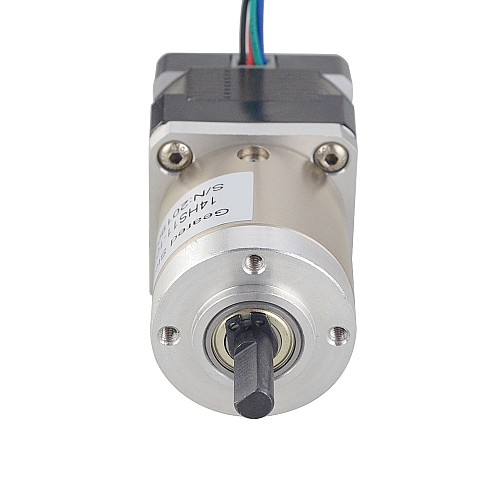

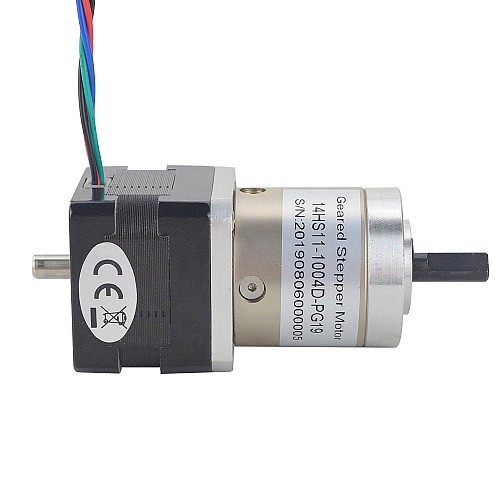

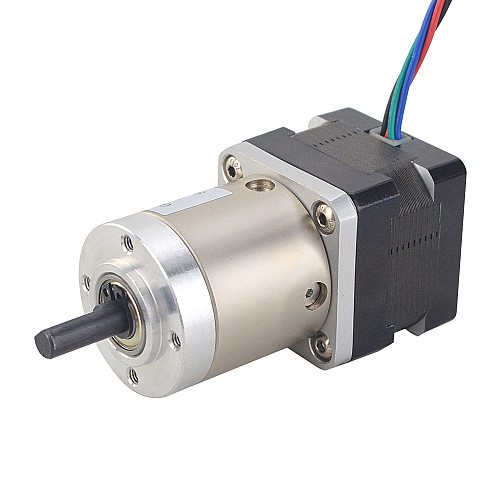

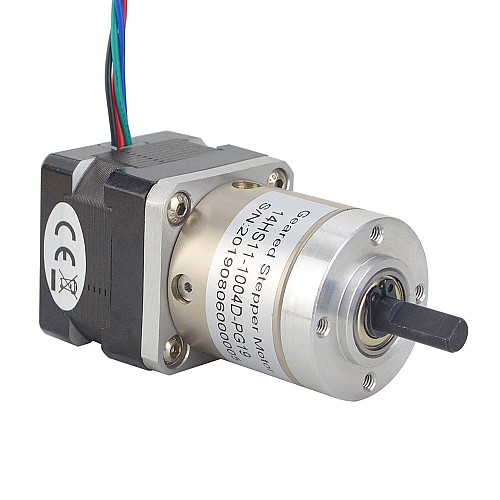

Nema 14 Stepper Motor Bipolar L=28mm w/ Gear Ratio 19:1 Planetary Gearbox

Discontinued

Nema 14 Stepper Motor Bipolar L=28mm w/ Gear Ratio 19:1 Planetary Gearbox

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 14HS11-1004D-PG19
Gross Weight: 0.33kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 14HS11-1004D-PG19
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 0.125 Ncm(17.7 oz.in)
Rated Current/phase: 1.0 A
Phase Resistance: 3.5 ohms
Inductance: 3.5 mH ± 20%(1KHz)

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 19: 1
Efficiency: 81%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 3 Nm(424.92 oz.in)
Moment Permissible Torque: 5 Nm(708.2 oz.in)
Shaft Maximum Axial Load: 50 N
Shaft Maximum Radial Load: 100 N

Physical Specifications

Gearbox Type: Planetary
Frame Size: 35 x 35 mm
Motor Length: 28 mm
Gearbox Length: 35.8 mm
Shaft Diameter: Φ6 mm
Shaft Length: 18 mm
D-cut Length: 12 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 86 g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 14HS13-0804D-PG19.
