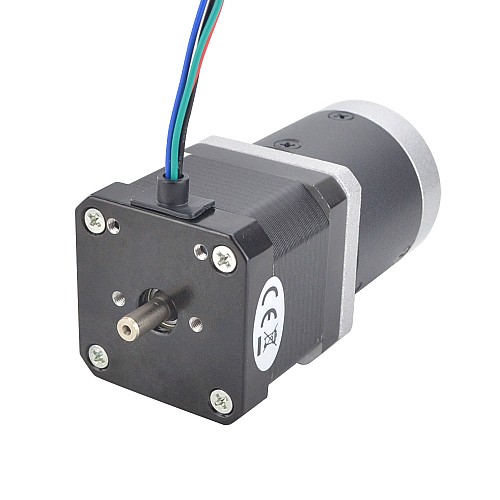

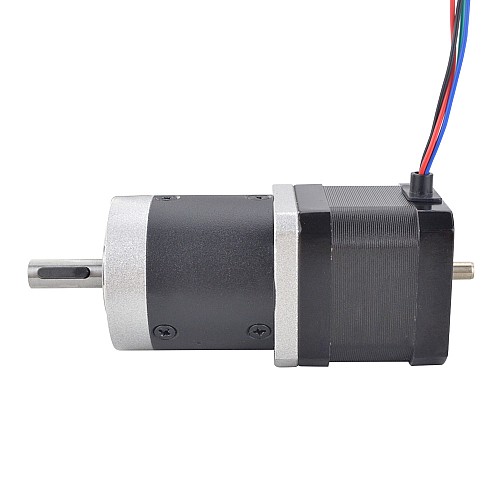

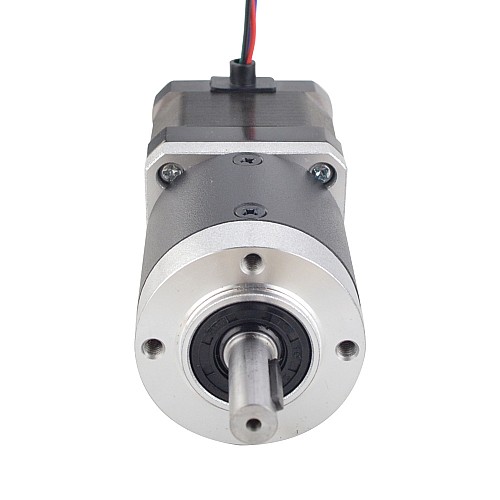

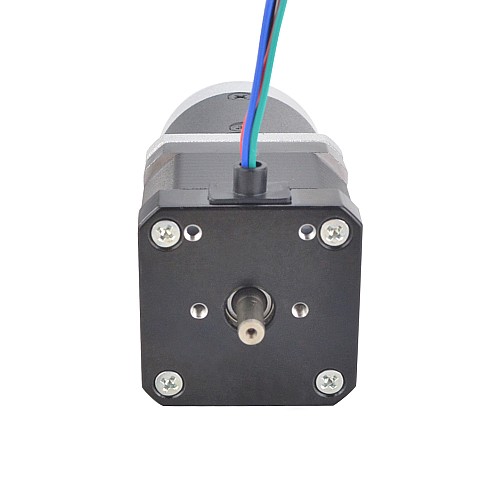

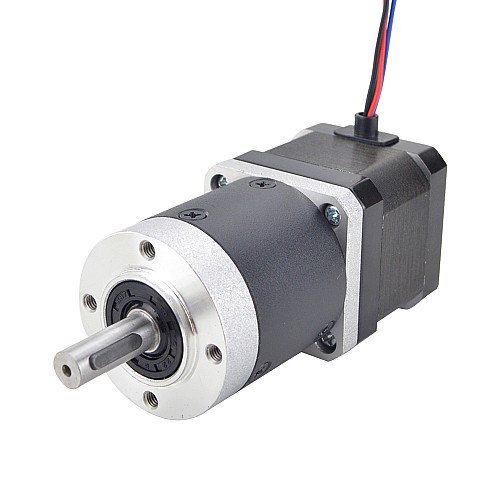

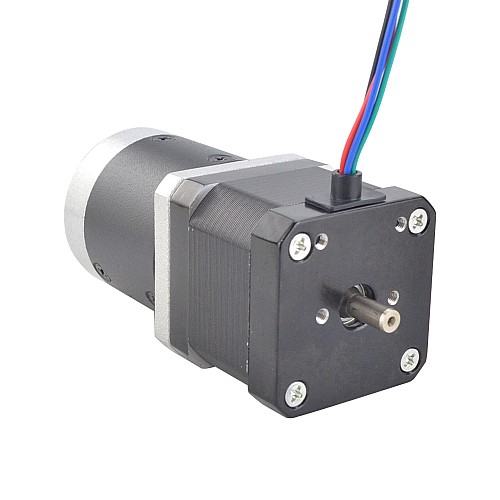

Nema 17 Dual Shaft Stepper Motor L=39mm Gear Ratio 50:1 High Precision Planetary Gearbox 9.5mm Rear Shaft Length

Discontinued

Nema 17 Dual Shaft Stepper Motor L=39mm Gear Ratio 50:1 High Precision Planetary Gearbox 9.5mm Rear Shaft Length

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 17HS15-1684D-HG50-AR3
Gross Weight: 0.70kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 17HS15-1684D-HG50-AR3
Motor Type: Bipolar Stepper
Step Angle: 0.036deg
Holding Torque without Gearbox: 39Ncm(55oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.6ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 50 :1
Efficiency: 85%
Backlash at No-load: <=50arcmin
Max. Permissible Torque: 10Nm(1416.4oz.in)
Moment Permissible Torque: 15Nm(2124oz.in)
Max. Radial Load: 100N
Ambient Temperature: -10 - 90℃
Noise: <=50dB
Life: 20000h

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 48.3mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 23.5mm
Rear Shaft Diameter: 5mm
Rear Shaft Length: 9.5mm
Key-way Length: 14mm
Number of Leads: 4
Lead Length: 320mm
Weight: 582g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17HS15-1684D-EG50-AR4.

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.39
Inductance(mH)	3.2
Phase Resistance(ohms)	1.6
Physical Specification
Backlash at No-load	<=50arcmin
Body Length(mm)	87.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	582
