LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 510mm
0 reviews - Write a review
A$215.52
5 + A$208.62
10 + A$202.16
50 + A$196.08
100 + A$190.35
  • In Stock: 200
  • Model: LKN60-23DL100-510
  • Gross Weight: 4.96kg

Click country for live inventory

Add to Cart
Question
Add to Wish List Compare this Product
Choose a Local Warehouse, Get More Benefits!
Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

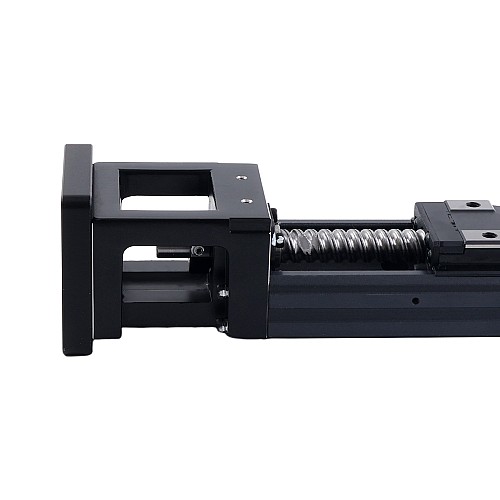

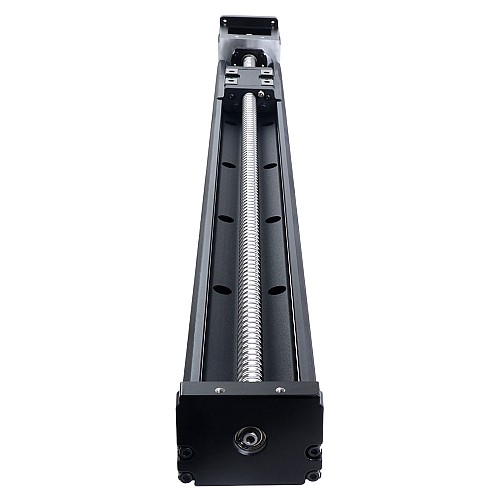

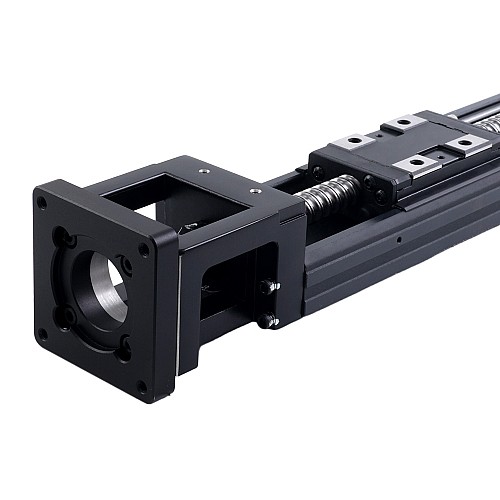

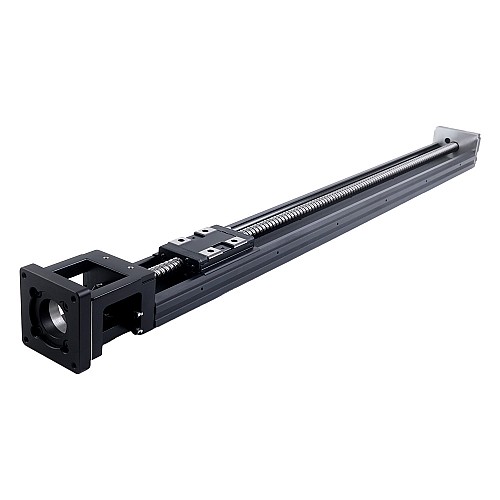

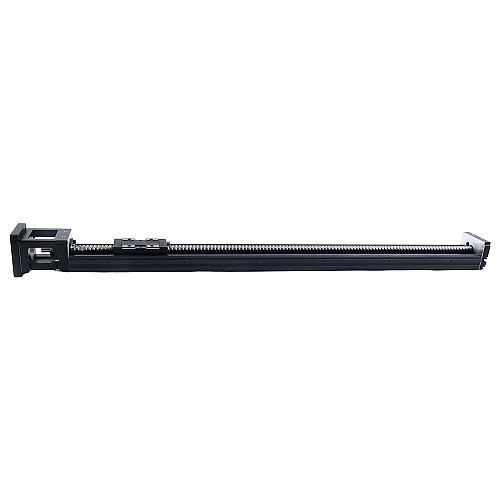

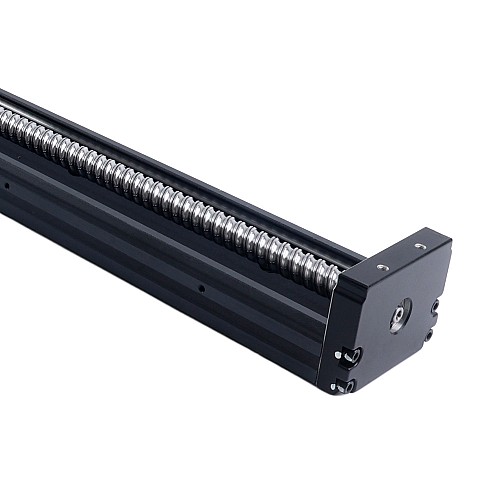

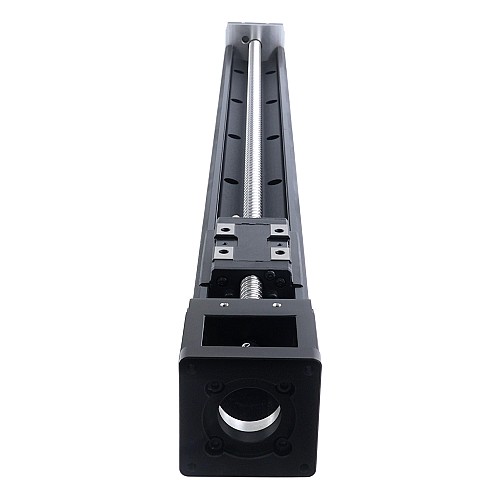

This LKN60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 510mm(1.64ft) and maximum speed of 540mm/s(1.77ft/s). The actuator is specifically compatible with Nema 23 stepper motors, ensuring versatile integration into precision motion systems.
To achieve a lean design and reduce both weight and footprint, this model omits non-essential components such as protective covers, integrated carriages, sensors, and couplings. Ideal for applications where minimal size and simplified assembly are prioritized, the LKN60 offers a reliable and economical linear motion solution without compromising core performance in high-cycle or confined automation environments.

  • PN: LKN60-23DL100-510
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.0328ft)
  • Maximum Speed: 540mm/s(1.77ft/s)
  • Maximum Horizontal Payload: 30kg(66.14lb)
  • Maximum Vertical Payload: 10kg(22.05lb)
  • Rated Thrust: 341N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: Nema 23 stepper motor
  • Stroke Lengths: 510mm(1.64ft)

Adapting Motors: Standard NEMA 23 stepper motor.

Physical Specification
Lead(mm/ft) 10/0.033
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 30/66.14
Max. Speed(ft/s) 1.77
Max. Speed(mm/s) 540
Max. Vertical Payload(kg/lb) 10/22.05
Motor Mounting Flange Nema 23 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 341
Stroke Length(mm/ft) 510/1.64
Transmission Method Ball Screw Driven



File Size
LKN60-23DL100-510_Full_Datasheet.pdf 151.16KB Download
