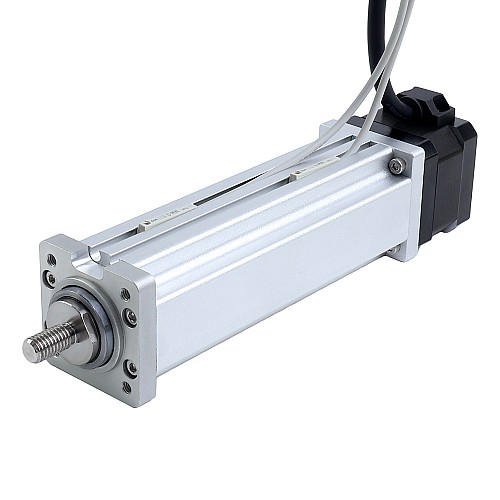

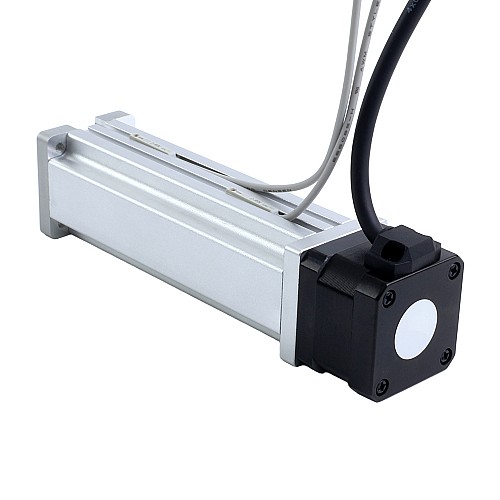

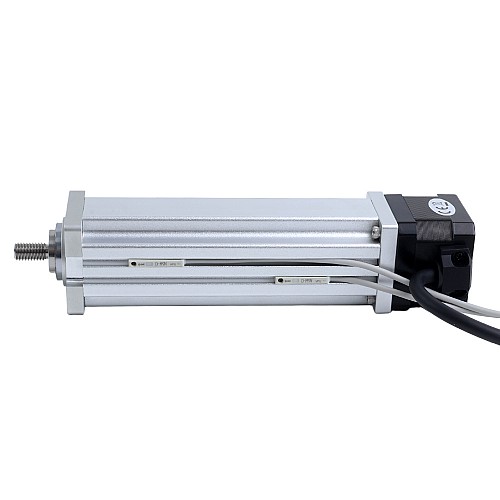

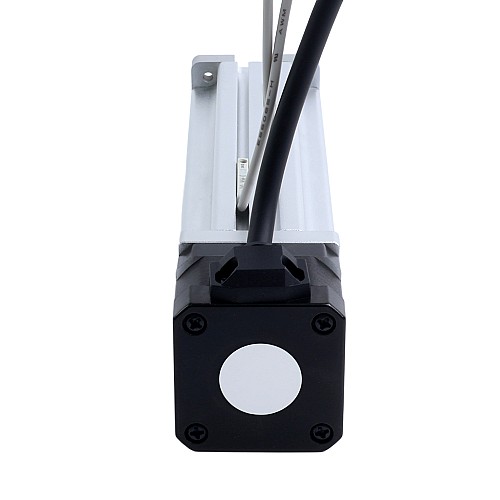

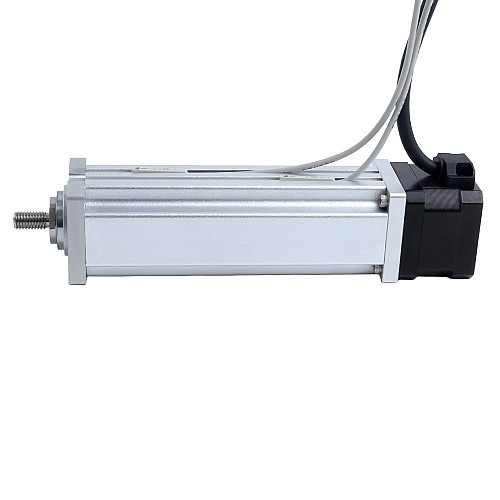

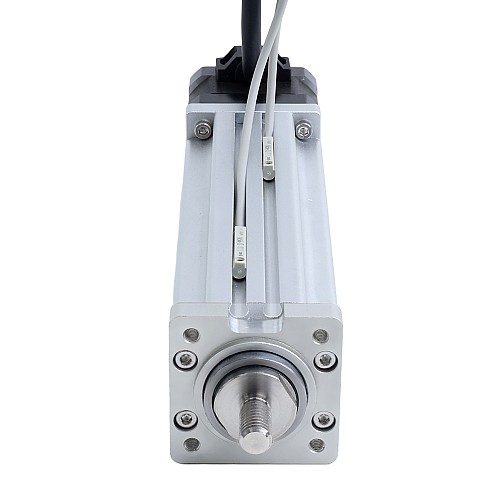

This LCB series mini electric cylinder is equipped with a Nema 17 stepper motor, featuring a rated current of 1.5A, a 12mm diameter ball screw with a 5mm lead and a 75mm stroke, making it an integrated linear actuator specifically designed for various automation applications.
This electric cylinder can be optionally equipped with accessories such as an encoder, a handwheel, and a brake, thereby enhancing its functionality and flexibility to meet a variety of application requirements.

Electrical Specification

  • MPN: LCB17S13BVL15-75D
  • Screw Type: Ball Screw
  • Step Angle: 1.8deg
  • Holding Torque: 0.25Nm(35.40oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 1.7ohms ± 10%
  • Inductance: 2.5mH ± 20%(1KHz)
  • Switch Output Type: NPN
  • Number of Limit Switches: 2

Physical Specification

  • Motor Size: 42 x 42 x 34mm
  • Lead Screw Diameter: 12mm
  • Stroke Length: 75mm(2.9528")
  • Lead/Step: 0.025mm(0.00098425")
  • Lead/Revolution: 5mm(0.19685")
  • Number of Wires: 4
  • Cable Length: 500mm
  • Weight: 0.88kg

Motor Connection

Pin No.
1
2
3
4
Bipolar
A+
A-
B+
B-
Wires
Red
Red/White
Green
Green/White

Magnetic Switch Wiring

Pin No.
1
2
3
Bipolar
DC 5~24V
GND
Signal Line
Wires
Brown
Blue
Black
Electrical Specification
Holding Torque(Ncm) 25
Holding Torque(oz.in) 35.40
Inductance(mH) 2.5
Phase Resistance(ohms) 1.7
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Physical Specification
Frame Size(mm) Nema 17 (42 x 42)
Lead Screw Diameter(mm) 12
Lead Travel/Revolution(mm) 5
Lead Travel/Step(mm) 0.025
Linear Motor Type Ball Screw
Stroke Length(mm/ft) 75/0.25



File Size
LCB17S13BVL15-75D_Full_Datasheet.pdf 147.37KB Download
