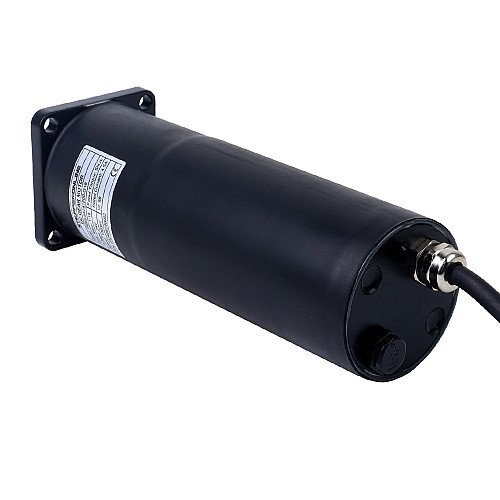

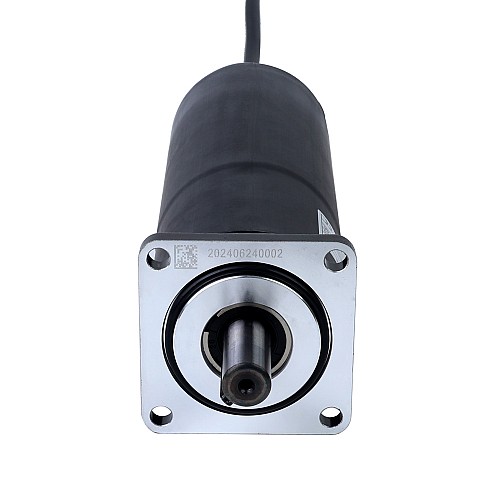

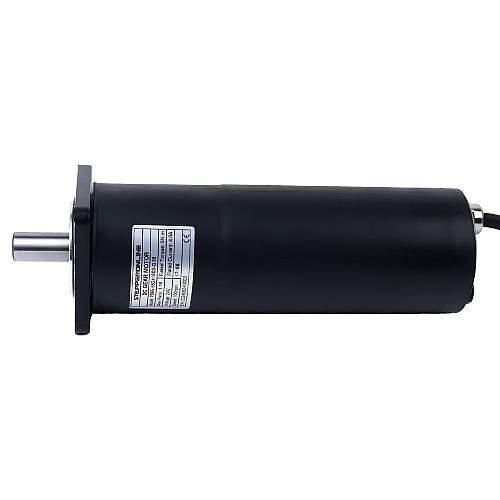

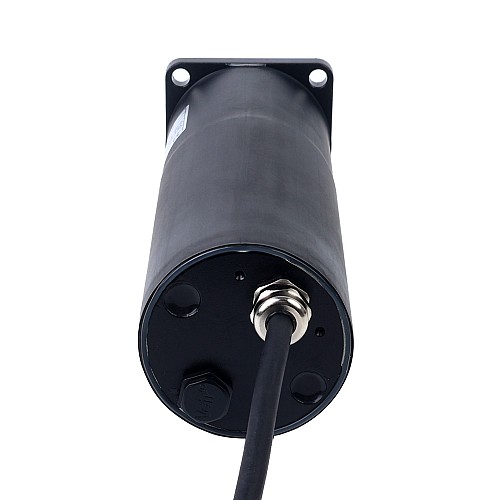

Brushed 24V DC Gear Motor 5Nm(708.06oz.in) 100RPM w/ 18:1 Planetary Gearbox IP66 155°C[311°F]

0 reviews - Write a review

A$134.06

5 + A$128.54

10 + A$123.46

50 + A$118.75

100 + A$114.38

In Stock: 200
Model: PB65-65241800-G18
Gross Weight: 2.93kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This is a 24V DC gear motor that generates a rated torque of 5Nm(708.06oz.in) at speed of 100rpm. Coming with a 18:1 planetary Gearbox this motor is characterized in higher efficiency, higher torque, quieter motor operation, excellent sealing and high level waterproof of IP66 and insulation class of F 155°C[311°F].
It is widely used for applications that require high precision, low speed and high torque, such as photovoltaic module, precision instruments, consumer electronics and household appliances, etc.

Electrical Specification

Part Number: PB65-65241800-G18
Motor Type: Brushed DC Motor
Rated Voltage: 24V
Rated Current: ≤4.5A
Peak Current: ≤6.5A
Rated Power: 66W
Rated Speed Without Gearbox: 1800±10%RPM
Rated Torque Without Gearbox: 0.35Nm(49.56oz.in)
Peak Torque Without Gearbox: 0.52Nm(73.64oz.in)
Rated Speed with Gearbox: 100±10%RPM
Rated Torque with Gearbox: 5Nm(708.06oz.in)
Maximum Permissible Torque: 7.5Nm(1062.09oz.in)
Insulation Class: F 155°C[311°F]
IP Rating: IP66

Physical Specification

Gearbox Type: Planetary
Gear Ratio: 18:1
Motor Size: Φ65 x 200mm
Flang Size: 68 x 68mm
Shaft Diameter: Φ15mm
Shaft Length: 32mm
Shaft Type: Keyway
Keyway Length: 25mm

Electrical Specification
Rated Current(A)	4.5
Rated Power(W)	66
Rated Speed(rpm)	100
Rated Torque(kg.cm)	50.99
Rated Torque(Nm)	5
Rated Torque(oz.in)	708.06
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	18
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
IP Rating	IP66
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	32
