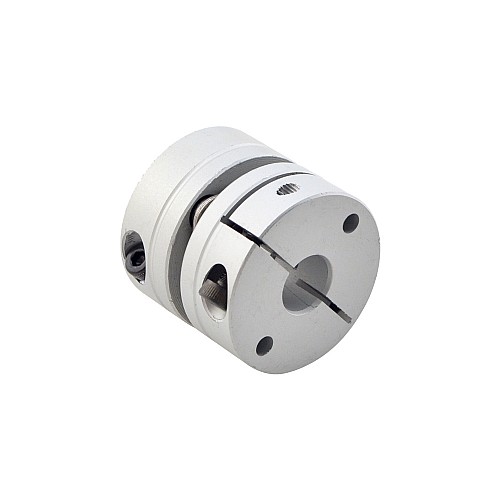

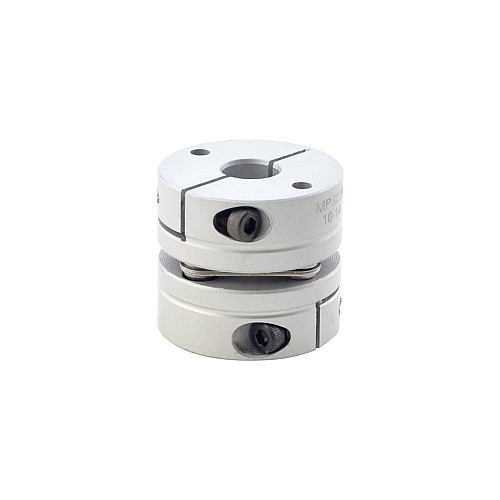

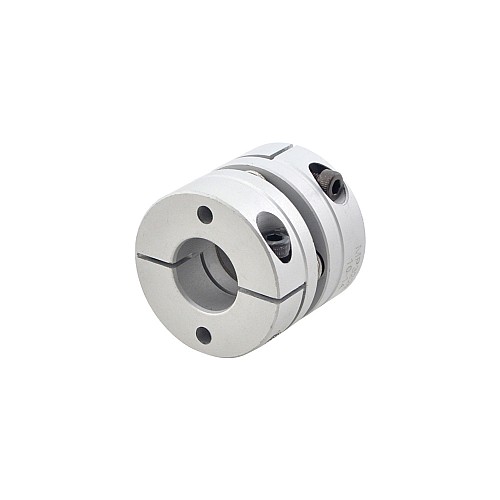

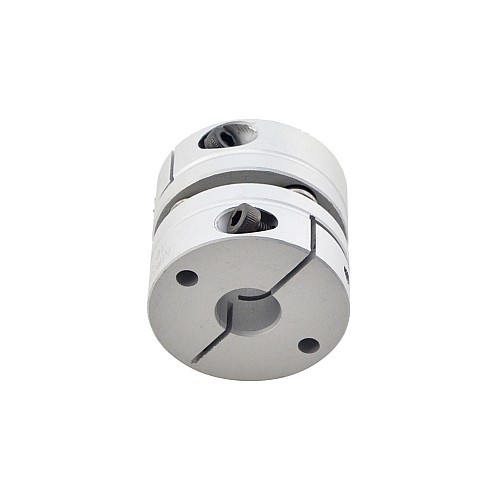

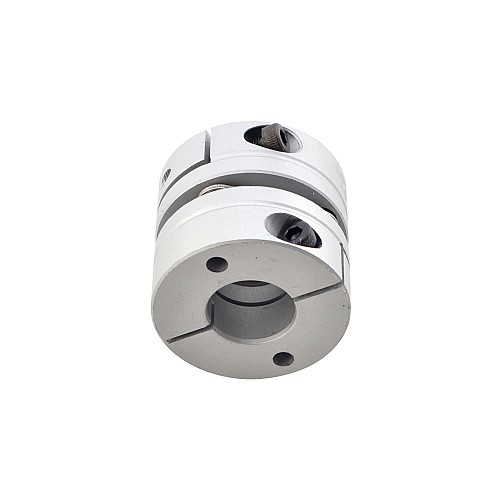

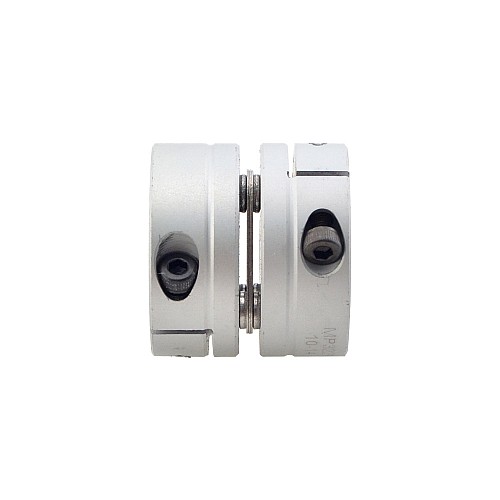

10mm - 14mm Flexible Single Disc Coupling 32x29mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

A$9.06

5 + A$8.61

10 + A$8.21

50 + A$7.84

100 + A$7.50

In Stock: 200
Model: MP3229-10-14
Gross Weight: 0.11kg
Certificated: ISO

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

Part Number: MP3229-10-14
Type: Single Disc
Rated Torque: 2.8Nm(396.42oz.in)
Max. Torque: 5.6Nm(792.84oz.in)
Max. Speed: 10000rpm
Moment of Inertia: 7.1*10^-6kg*m²
Static Torsional Spring Constant: 1960Nm/rad
Bore Diameter(d1-d2): 10mm - 14mm
Body Outside Diameter(D): 32mm
Body Length(L): 29mm
Material Type: Aluminum
Weight: 46g

Coupling Specification
Body Length(mm)	29
Coupling Type	Disc Shaft Coupling
Diameter(mm)	32
Matching Shaft Diameter(mm)	10 - 14
Physical Specification
Inventory Method	Dedicated Inventory
