CN On Sale - 110V AC Gear Motor 40Kg.cm/8RPM w/ 277:1 Rectangular Spur Gearbox

110V AC Gear Motor 40Kg.cm/8RPM w/ 277:1 Rectangular Spur Gearbox - FGF-6130-110V-G277 | StepperOnline AU

-31 %

CN On Sale - 110V AC Gear Motor 40Kg.cm/8RPM w/ 277:1 Rectangular Spur Gearbox

0 reviews - Write a review

A$38.18

A$26.46

In Stock: 200
Model: CN-FGF-6130-110V-G277
Gross Weight: 1.46kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

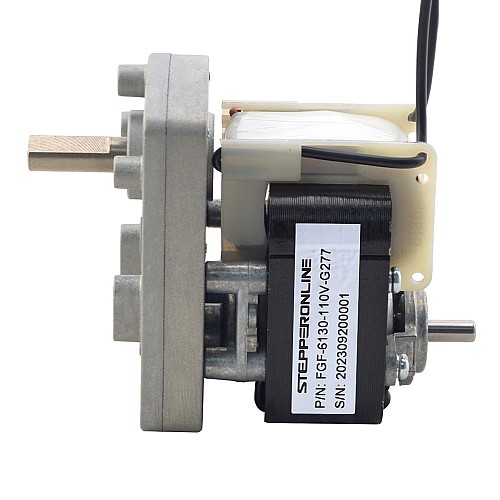

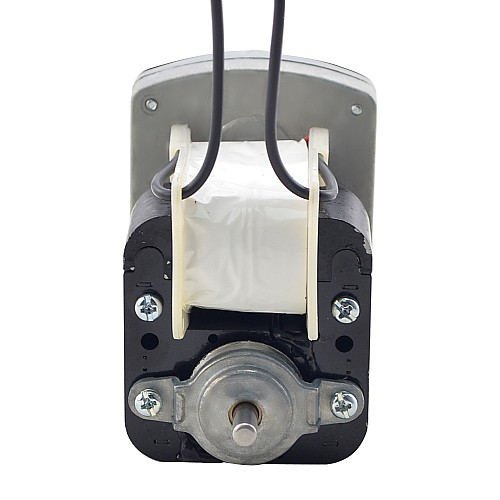

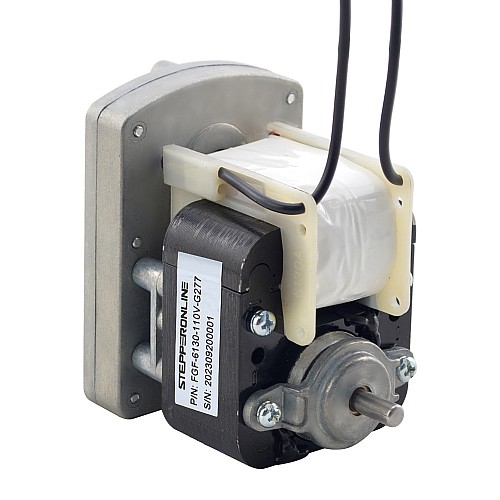

This is a standard 110 volt brushed AC gear motor, generating 40kg.cm of torque at 8rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 277 : 1 rectangular gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGF-6130-110V-G277
Rated Voltage: 110V
Rated Torque: 40kg.cm(553.2oz.in)
Rated Current: <=550mA
Rated Speed: 8rpm
No-load Current: <=500mA
No-load Speed: 10rpm
Rotation Direction: CW
Motor Type: Brushed AC Motor

Gearbox Specification

Gearbox Type: Rectangular Gearbox
Gear Ratio: 277 : 1

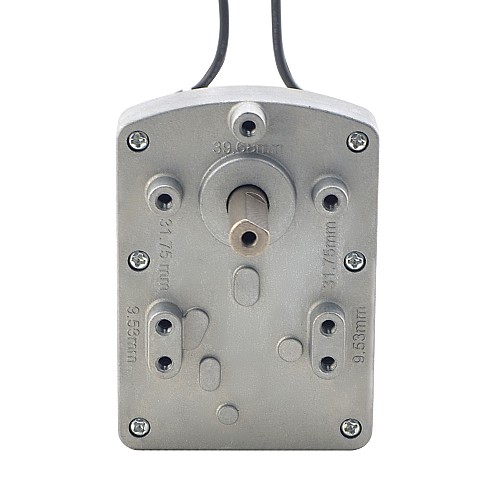

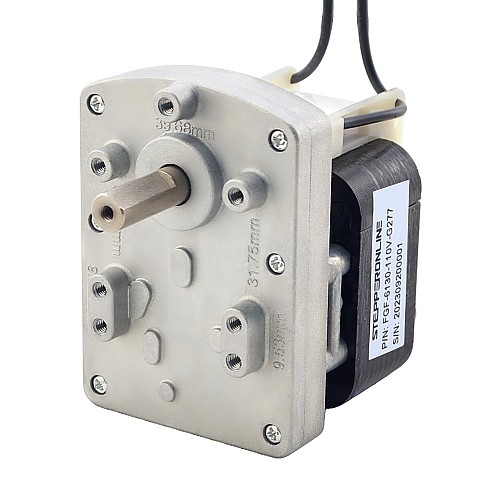

Physical Specification

Motor length: 30mm
Gearbox Size: 90.2 x 63.5 x 33mm
Front Shaft Diameter: Φ9.5mm
Front Shaft Length: 26mm
D-cut Length: 21mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm

Electrical Specification
Rated Current(A)	0.55
Rated Speed(rpm)	8
Rated Torque(kg.cm)	40
Rated Voltage(V)	110
Physical Specification
Gear Ratio(xx:1)	277
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	9.5
Shaft Length(mm)	26
