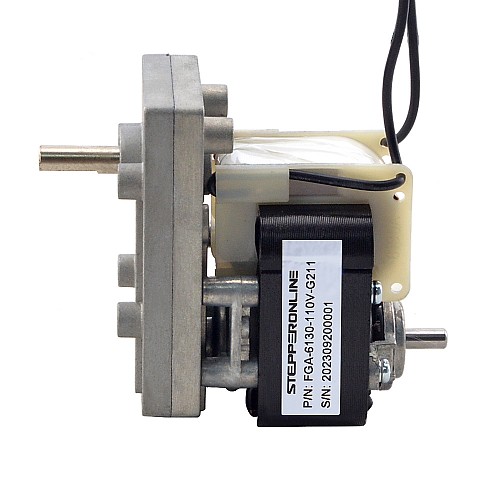

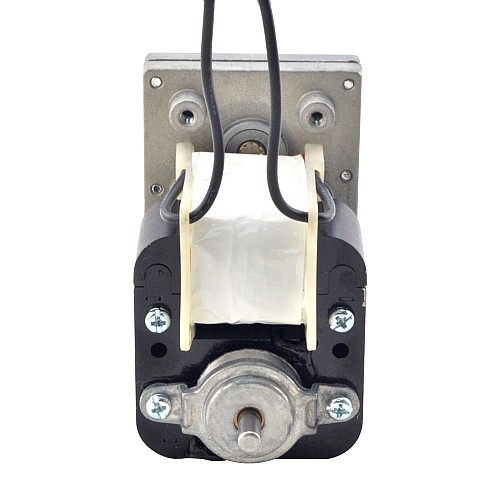

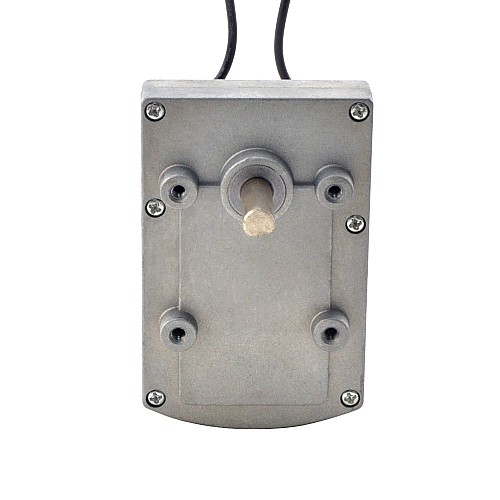

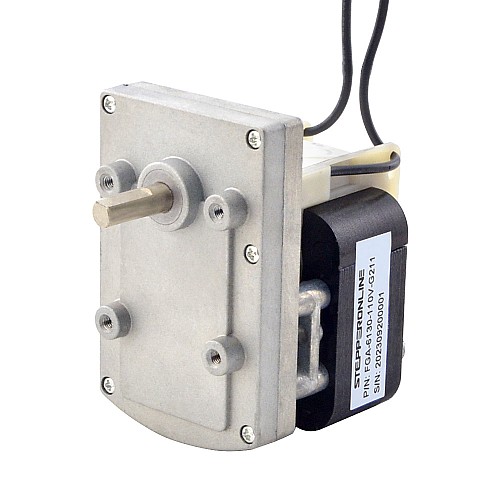

110V AC Gear Motor 40Kg.cm/15RPM w/ 211:1 Rectangular Spur Gearbox

0 reviews - Write a review

A$0.00

In Stock: 1
Model: FGA-6130-110V-G211
Gross Weight: 1.50kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This is a standard 110 volt brushed AC gear motor, generating 40kg.cm of torque at 15rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 211 : 1 rectangular gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: FGA-6130-110V-G211
Rated Voltage: 110V
Rated Torque: 40kg.cm(553.2oz.in)
Rated Current: <=850mA
Rated Speed: 15rpm
No-load Current: <=780mA
No-load Speed: 15rpm
Rotation Direction: CW
Motor Type: Brushed AC Motor

Gearbox Specification

Gearbox Type: Rectangular Gearbox
Gear Ratio: 211 : 1

Physical Specification

Motor Size: 61 x 64 x 30mm
Gearbox Size: 95 x 60 x 16mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 22mm
D-cut Length: 16mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm

Electrical Specification
Rated Current(A)	0.85
Rated Speed(rpm)	15
Rated Torque(kg.cm)	40
Rated Voltage(V)	110
Physical Specification
Gear Ratio(xx:1)	211
Gearbox Shape	Rectangular
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	22
