YS Series 1 Axis 6.50Nm(920.48oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply

0 reviews - Write a review

A$147.62

5 + A$143.31

10 + A$139.23

50 + A$135.39

100 + A$131.76

In Stock: 200
Model: 1-CLYS65
Gross Weight: 5.70kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

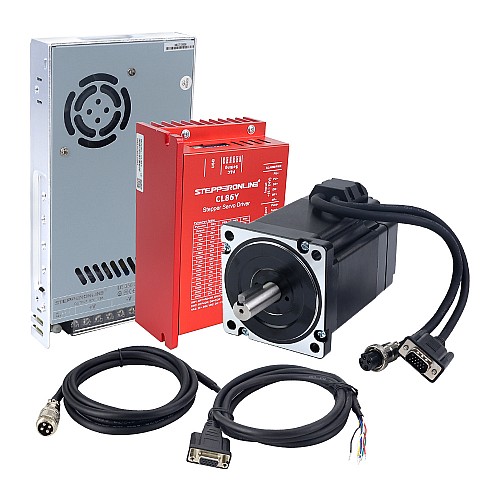

This CNC kit includes:

1 x 34HS39-6004D-E1000: Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR)
1 x CL86Y: Y Series Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
1 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply
1 x CE2-M2-18: 1.7m(67") Motor AWG18 and Encoder Extension Cable

Motor Specification

Part Number: 34HS39-6004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 6.50Nm(920.48oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.36ohms ± 10%
Inductance: 2.6mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 120mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A（0~6RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Power Supply Specification

Part Number: LE-350-60
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 60V
Output Current: 5.8A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Please download Y series stepper driver debug software here.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	650
Holding Torque(oz.in)	920.48
Inductance(mH)	2.6
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.36
Rated Current(A)	6.0
Physical Specification
Cable Length(mm)	2000
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37

File	Size
34HS39-6004D-E1000_Torque_Curve.pdf	169.74KB	Download
34HS39-6004D-E1000_Full_Datasheet.pdf	84KB	Download
LE-350-60.STEP	2.28MB	Download
LE-350-60.pdf	229.51KB	Download
CL86Y.STP	5.44MB	Download
CE2-M2-18.pdf	115.55KB	Download
CL86Y_User_Manual.pdf	819.42KB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
