Name: YS Series 1 Axis 4.00Nm(566.45oz.in) Nema 24 Closed Loop Stepper Kit w/ Power Supply - 1-CLYS40 | StepperOnline AU
SKU: 1-CLYS40
Availability: InStock

YS Series 1 Axis 4.00Nm(566.45oz.in) Nema 24 Closed Loop Stepper Kit w/ Power Supply

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 1-CLYS40
Gross Weight: 3.60kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

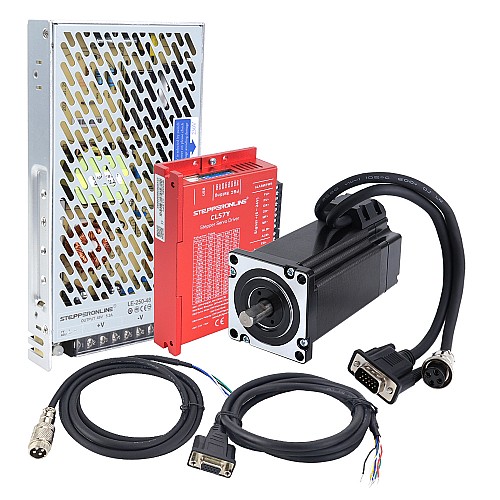

This CNC kit includes:

1 x 24HS40-5004D-E1000: Nema 24 Closed Loop Stepper Motor 4.00Nm(566.45oz.in) Encoder 1000PPR(4000CPR)
1 x CL57Y: Y Series Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
1 x LE-250-48: 250W 48V 5.2A Switching Power Supply
1 x CE2-M2-20: 1.7m(67") Motor AWG20 and Encoder Extension Cable

Motor Specification

Part Number: 24HS40-5004D-E1000
Number of phase: 2
Holding Torque: 4.00Nm(566.45oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.6ohms
Inductance: 2.6mH ± 20%(1KHz)
Frame Size: 60 x 60mm
Body Length: 122mm
Shaft Diameter: Φ10mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Cable Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~7A(0~5RMS)
Input Voltage: +24~50VDC(Typical 36VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Power Supply Specification

Part Number: LE-250-48
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 48V
Output Current: 5.2A
Rated Output Power: 250W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 1-CLYS40-V20.

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Please download Y series stepper driver debug software here.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	400
Holding Torque(oz.in)	566.45
Inductance(mH)	2.6
Input Voltage Reference(V)	24 - 48DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.6
Rated Current(A)	5.0
Physical Specification
Cable Length(mm)	2000
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	10
Shaft Length(mm)	21

File	Size
LE-250-48.pdf	258.5KB	Download
CL57Y_MANUAL.pdf	790.19KB	Download
CL57Y.STEP	3.03MB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
24HS40-5004D-E1000.STEP	7.67MB	Download
24HS40-5004D-E1000_Full_Datasheet.pdf	239.17KB	Download
24HS40-5004D-E1000_Torque_Curve.pdf	84.41KB	Download
