Name: WDR-60-24 | WDR-60-24 MEANWELL 60W 24VDC 2.5A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply | StepperOnline AU
Brand: MEANWELL
SKU: WDR-60-24
Availability: InStock

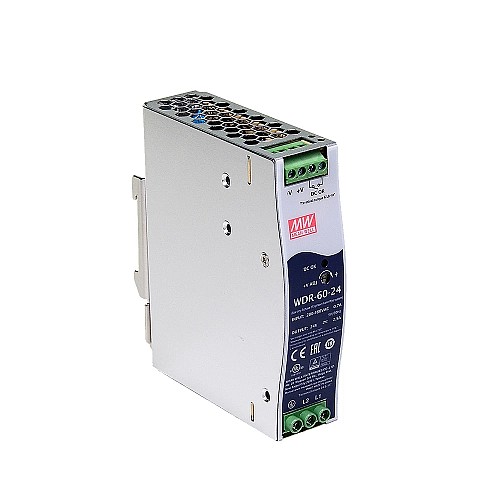

WDR-60-24 MEANWELL 60W 24VDC 2.5A 230/400VAC UltraWide Input Industrial DIN Rail Power Supply

0 reviews - Write a review

A$0.00

In Stock: 1
Brand: MEANWELL
Model: WDR-60-24
Gross Weight: 0.83kg
Certificated: ISO, CE, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Features

Brand MEANWELL
24V DC 2.5A output
AC input voltage range: 180 ~ 550VAC
Rated power: 60W
Single and two phase wide input range 180~550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
Buil-in DC OK relay contact
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Electrical Specification
Efficiency(%)	89%
Max. Output Current(A)	2.5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	32 x 125.2 x 102
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	180 - 550 / 254 - 780
Output Voltage(VDC)	24
PFC Function	No
Power Type	DIN Rail Power Supply
Power(W)	60
Physical Specification
Inventory Method	Dedicated Inventory
