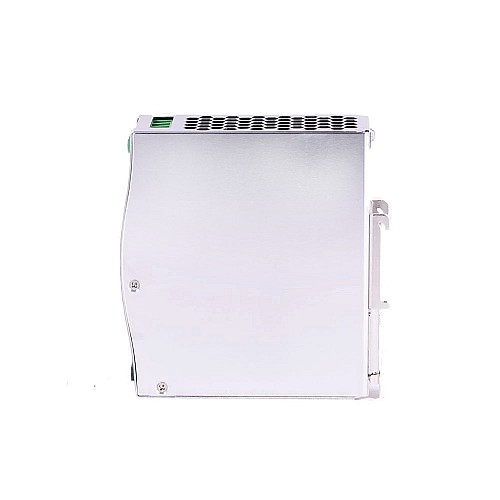

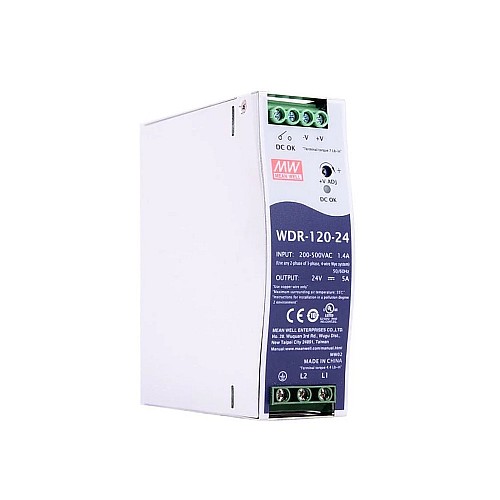

Name: WDR-120-24 | WDR-120-24 MEANWELL 120W 24VDC 5A 180~550VAC DIN Rail Power Supply | StepperOnline AU
Brand: MEANWELL
SKU: CN-WDR-120-24
Price: 48.94 AUD
Availability: InStock

CN On Sale - WDR-120-24 MEANWELL 120W 24VDC 5A 180~550VAC DIN Rail Power Supply

WDR-120-24 MEANWELL 120W 24VDC 5A 180~550VAC DIN Rail Power Supply - WDR-120-24 | StepperOnline AU

-56 %

CN On Sale - WDR-120-24 MEANWELL 120W 24VDC 5A 180~550VAC DIN Rail Power Supply

0 reviews - Write a review

A$110.00

A$48.94

In Stock: 200
Brand: MEANWELL
Model: CN-WDR-120-24
Gross Weight: 0.97kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Features

Brand MEANWELL
24V DC 5A output
AC input voltage range: 180 ~ 550VAC
Rated power: 120W
Single and two phase wide input range 180~550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit

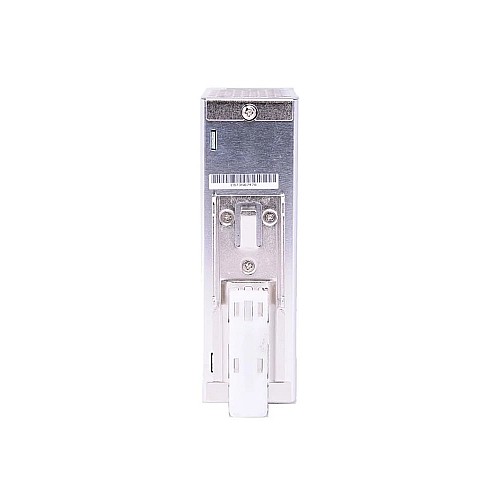

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
Buil-in DC OK relay contact
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Product Type
Product Type	DIN Rail Power Supply
Electrical Specification
Efficiency(%)	91%
Max. Output Current(A)	5
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	40 x 125.2 x 113.5 / 1.57 x 4.93 x 4.47
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	180 - 550
Output Voltage(VDC)	24
PFC Function	No
Power(W)	120
Physical Specification
Inventory Method	Dedicated Inventory
