Used - Nema 16 Bipolar 0.9deg 12Ncm(16.99oz.in) 0.63A 39x39x31mm 4 Wires

Used – 80% New -45 %

Used - Nema 16 Bipolar 0.9deg 12Ncm(16.99oz.in) 0.63A 39x39x31mm 4 Wires

0 reviews - Write a review

A$18.82

A$10.35

In Stock: 200
Model: 16HM12-0634D-USED
Gross Weight: 0.21kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

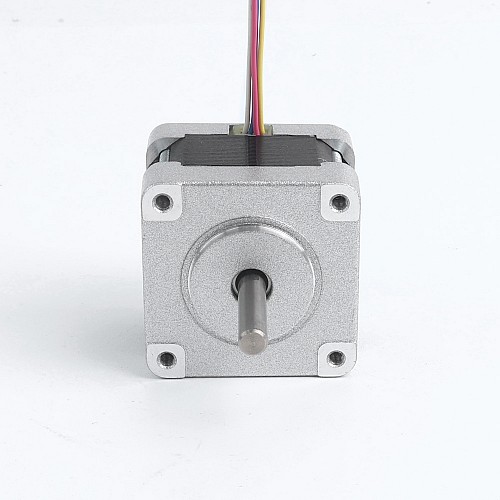

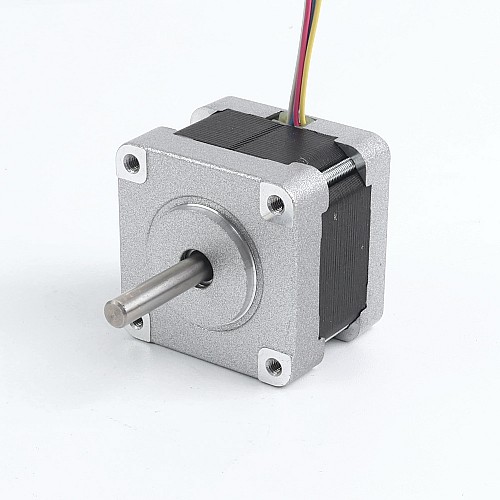

This bipolar Nema 16 stepper motor features a compact size of 39.2x39.2x31mm, a step angle of 0.9°, and a 4-wire configuration, with each phase drawing 0.63A. It delivers a robust holding torque of 12Ncm(16.99oz.in), making it ideal for precision motion control applications such as 3D printers, robotic arms, and automated positioning systems where accurate movement and reliable torque are essential.

Electrical Specification

Manufacturer Part Number: 16HM12-0634D
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 12Ncm(16.99oz.in)
Rated Current/phase: 0.63A
Phase Resistance: 9ohms
Inductance: 14mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 39.2 x 39.2mm
Body Length: 31mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 4
Cable Length: 290mm

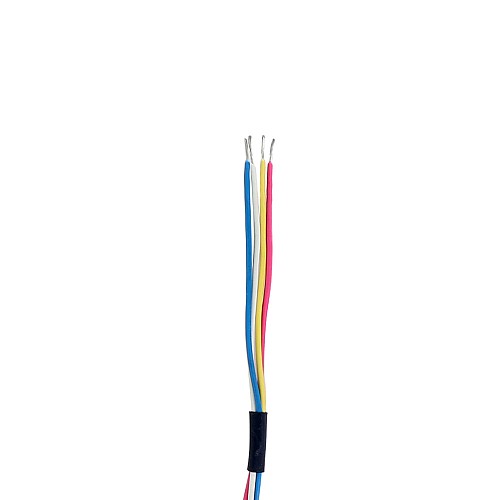

Connection

A+	A-	B+	B-
Blue	Red	White	Yellow

Product status note: the motor shaft has scratches of varying degrees.

Product Type
Product Condition	Used
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	12
Holding Torque(oz.in)	16.99
Inductance(mH)	14
Phase Resistance(ohms)	9
Rated Current(A)	0.63
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	31
Cable Length(mm)	290
Frame Size(mm)	Nema 16 (39 x 39)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	24

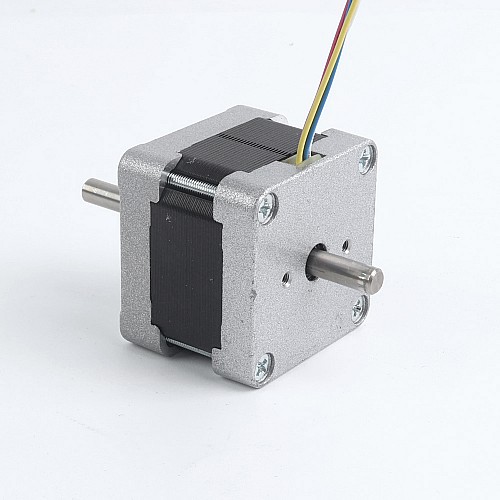

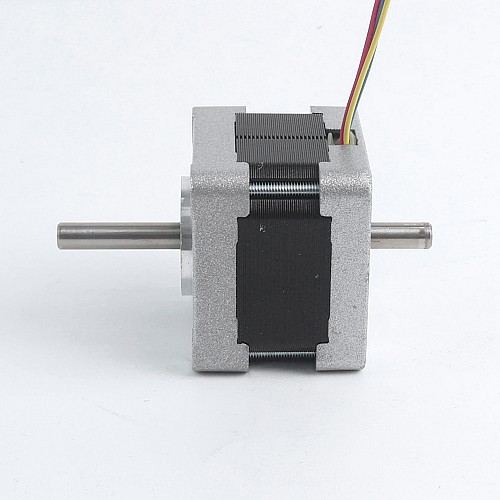

Single Shaft/Dual Shaft	Dual Shaft
