Used - China Stock - 24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox

Used - CN Stock - 24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox - 57BYA74-24-01-PG27-USED | StepperOnline AU

New Used – 80% New -32 %

Used - China Stock - 24V 101W Round Geared Brushless DC Motor 6.90Nm(977.12oz.in) 27:1 Round Planetary Gearbox

0 reviews - Write a review

A$103.32

A$69.87

In Stock: 200
Model: 57BYA74-24-01-PG27-USED
Gross Weight: 1.55kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

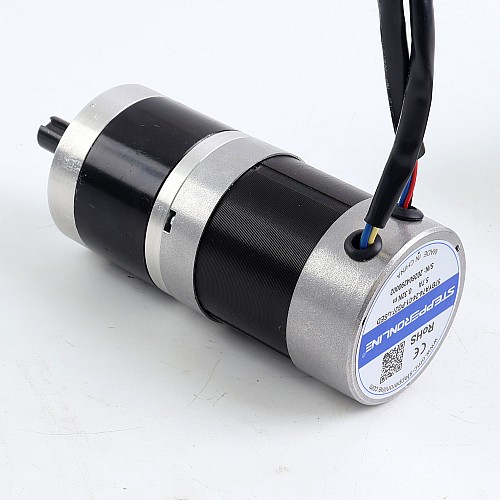

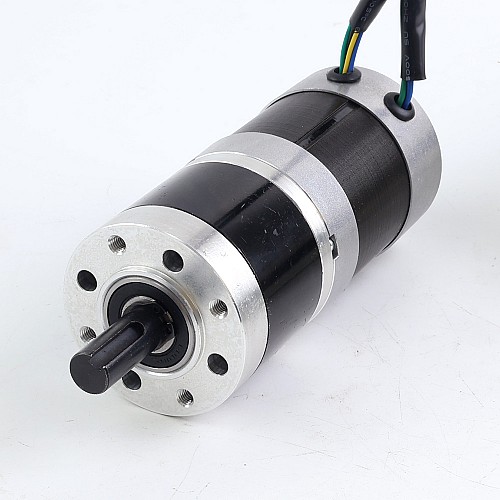

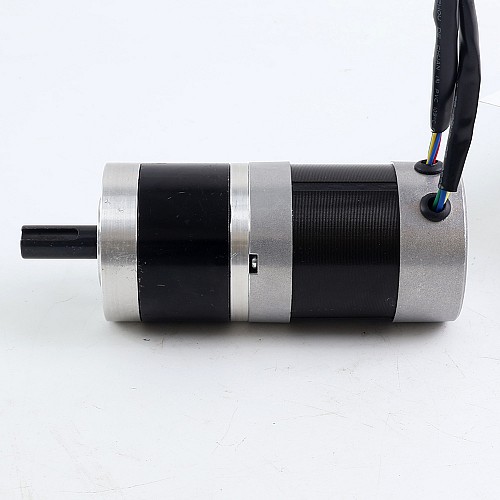

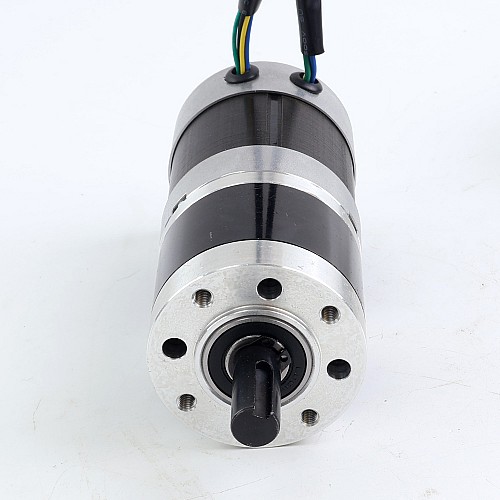

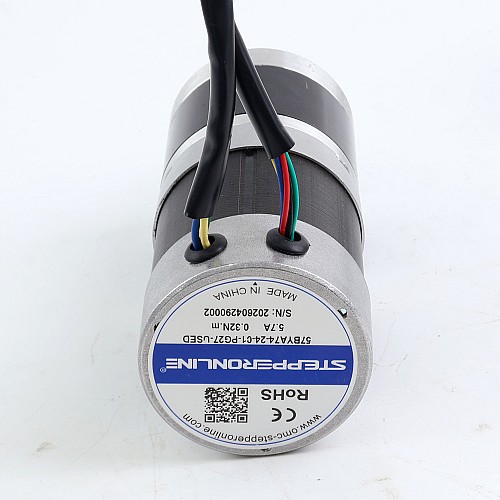

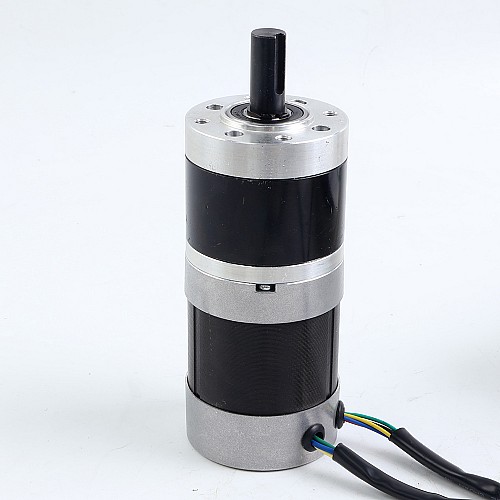

This is a 24V 101W brushless DC motor with a flange of Φ57mm. The built-in 27:1 round planetary gearbox delivers a rated torque of 6.90Nm(977.12oz.in). The overall cylindrical body is more suitable for installation in specific situations.
It is the perfect solution for motion control applications that require high torque, high precision, maximum efficiency and compact structure, such as medical equipment, robotics and other industrial applications, etc.

Electrical Specification

MPN: 57BYA74-24-01-PG27
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Torque without Gearbox: 0.32Nm(45.32oz.in)
Rated Torque with Gearbox: 6.90Nm(977.12oz.in)
Rated Power: 101W
Rated Speed : 111rpm
Speed Without Gearbox: 3000rpm
Rated Current: 5.70A
Resistance/phase: 0.43±10%Ohms
Inductance/phase: 1.18±20%mH
BACK EMF: 4.8±5%V/krpm
Sensor: HALL
Insulation Class: B 130°C[266°F]

Physical Specification

Gearbox Type: Planetary Gearbox
Gear Ratio: 27:1
Frame Size: Φ57mm
Body Length: 122.5mm
Shaft Diameter: Φ12mm
Shaft Length: 30mm
Shaft Type: Keyway
Number of Leads: 8
Lead Length: 500mm
Weight: 1.35kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

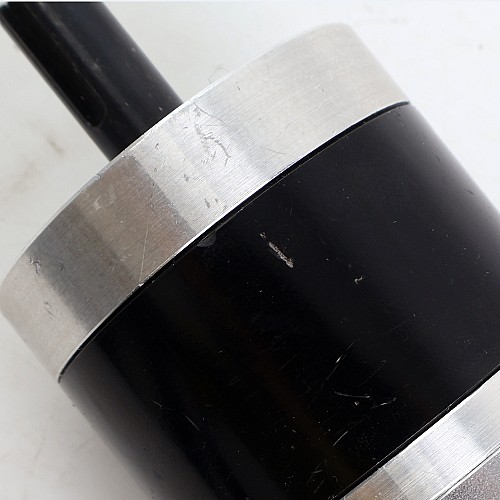

Product status note: this motor shows varying degrees of dents and scratches.

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.70
Rated Power(W)	101
Rated Speed(rpm)	111
Rated Torque(Nm)	0.32
Rated Voltage(V)	24
Physical Specification
Backlash at No-load	<=3 deg
Body Length(mm)	122.5
Frame Size(mm)	57 Round
Gear Ratio(xx:1)	26.8
Gearbox Shape	Round
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	30
With Gearbox	Yes

File	Size
57BYA74-24-01-PG27.STEP	570.08KB	Download
57BYA74-24-01-PG27_Full_Datasheet.pdf	178.2KB	Download

Tags: Output Shaft Type: Keyway, Shaft Diameter(mm): 12, Shaft Length(mm): 30, Rated Voltage(V): 24, Rated Current(A): 5.70, Body Length(mm): 122.5, Frame Size(mm): 57 Round, No. of Phase: 3, Product Type: Geared BLDC Motor, Gear Ratio(xx:1): 26.8, Backlash at No-load: <=3 deg, Gearbox Type: Planetary Gearbox, Rated Speed(rpm): 111, Rated Torque(Nm): 0.32, Rated Power(W): 101, With Gearbox: Yes, Gearbox Shape: Round, Inventory Method: Dedicated Inventory
