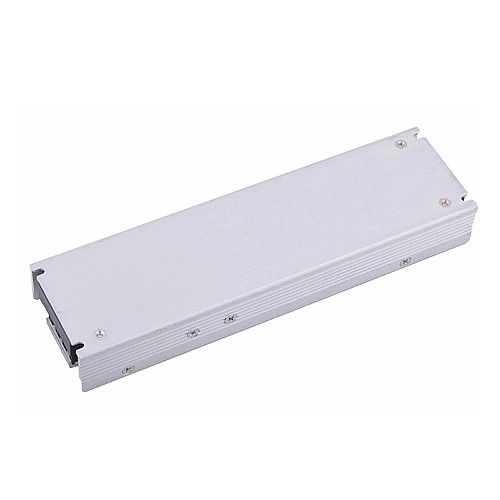

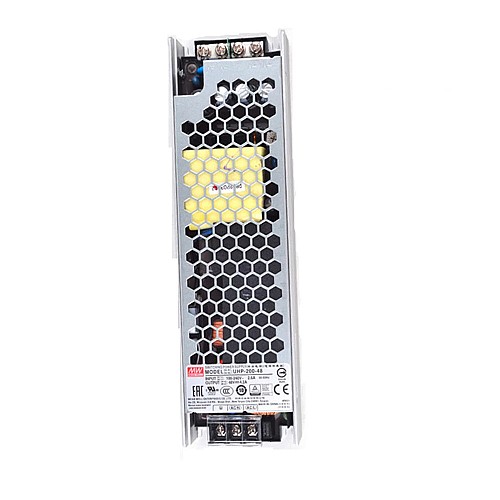

Name: UHP-200-48 | UHP-200-48 MEANWELL 201.6W 48VDC 4.2A 115/230VAC Slim TypeWith PFC Switching Power Supply | StepperOnline AU
Brand: MEANWELL
SKU: UHP-200-48
Availability: InStock

UHP-200-48 MEANWELL 201.6W 48VDC 4.2A 115/230VAC Slim TypeWith PFC Switching Power Supply

0 reviews - Write a review

A$0.00

In Stock: 1
Brand: MEANWELL
Model: UHP-200-48
Gross Weight: 0.47kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Features

Brand MEANWELL
48V DC 4.2A output
AC input voltage range: 90 ~ 264VAC
Rated power: 201.6W
Slim and Low profile(26mm)
Fanless design, 200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter(Note.5)
LED indicator for power on
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is LRS-200-48.

Electrical Specification
Efficiency(%)	94%
Max. Output Current(A)	4.2
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	194 x 55 x 26
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	48
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	201.6
Physical Specification
Inventory Method	Dedicated Inventory
