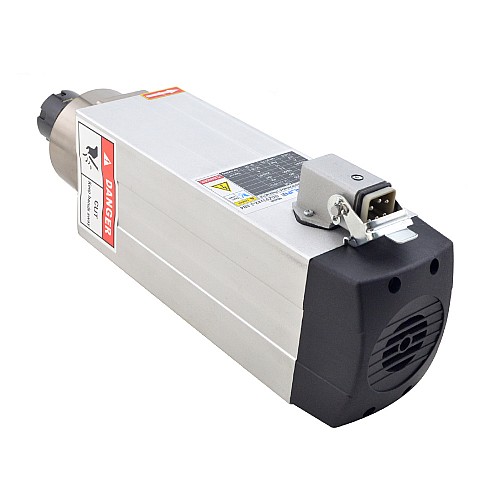

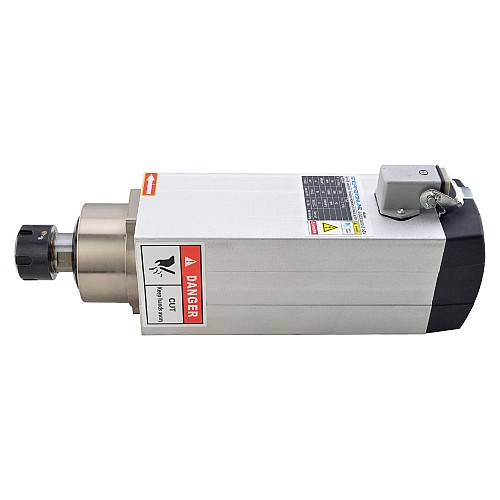

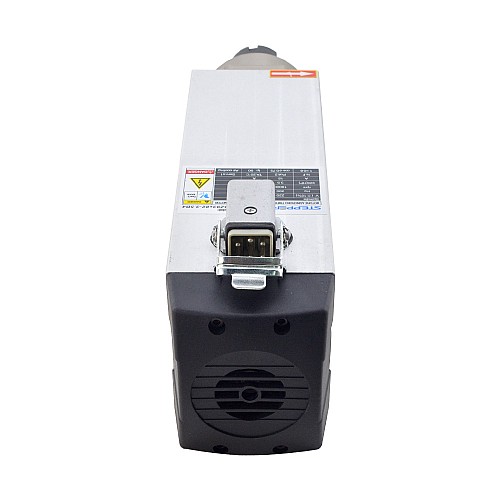

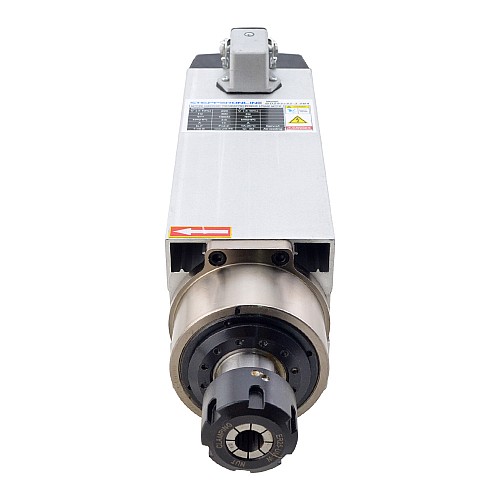

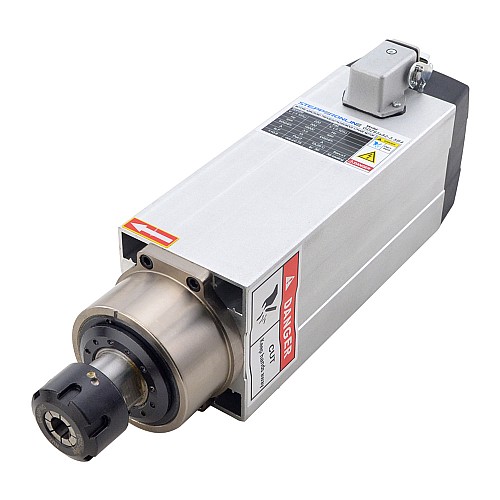

CNC Spindle Motor Air Cooled 220V 3.5KW 18000RPM 300Hz ER25 Collet

0 reviews - Write a review

A$0.00

In Stock: 1
Model: GDZ93x82-3.5B4
Gross Weight: 9.30kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

Manufacturer Part Number: GDZ93x82-3.5B4
Material: Stainless steel
Size: 214x82(Length: 214mm, Width: 82mm)
Power: 3.5KW
Voltage: 220VAC
Current: 15A
Frequency: 0 ~ 300Hz
Speed: 0 ~ 18000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER25 Collet(12.7mm)
Weight: 8.85kg

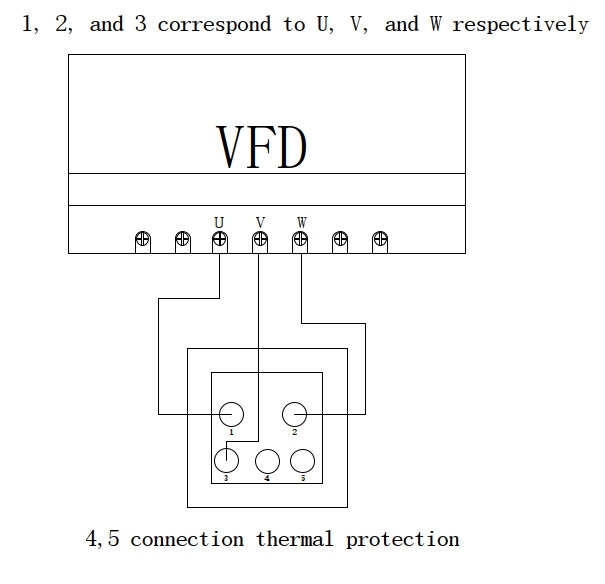

Connection

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Height(mm)	94
Body Length(mm)	214
Body Width(mm)	82
Collet Size	ER25
Material	Stainless steel
Power(Kw)	3.5
Shape	Square
Voltage(VAC)	220
Electrical Specification
Current(A)	15
Frequency(Hz)	0 - 300
Speed(rpm)	0 - 18000
Physical Specification
Bearings	2x7007(P4), 2x7002C(P4)
Inventory Method	Dedicated Inventory
Weight(Kg)	8.85
