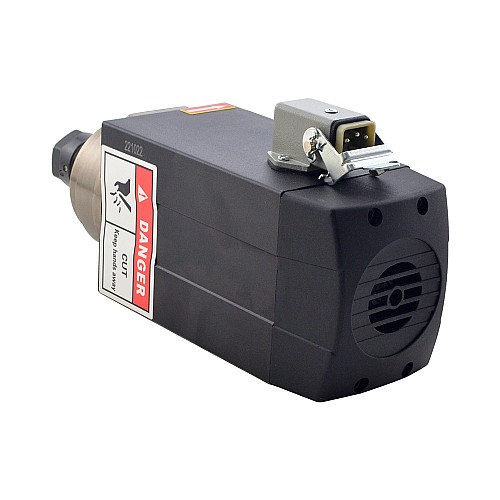

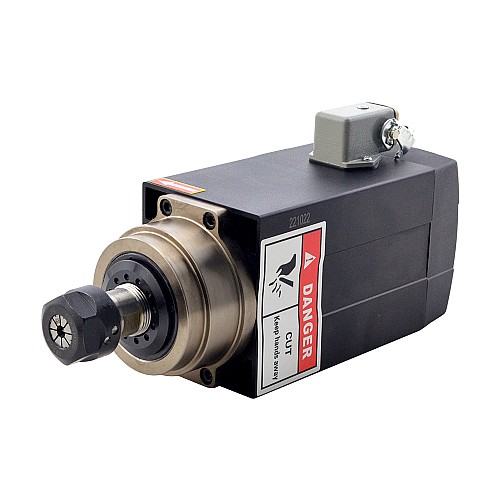

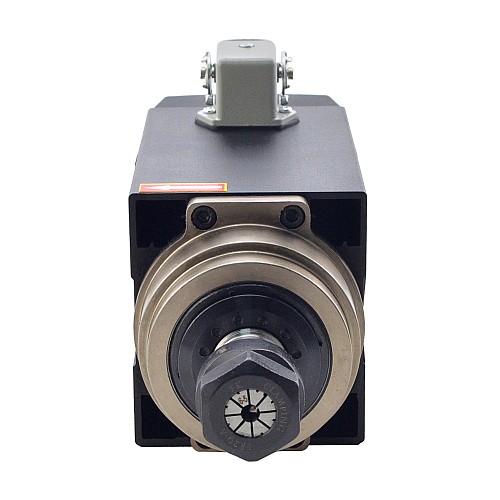

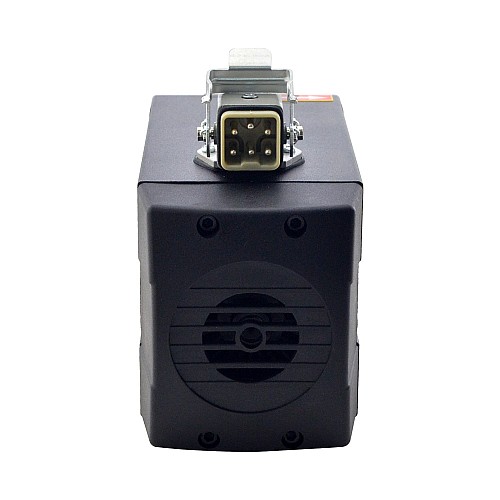

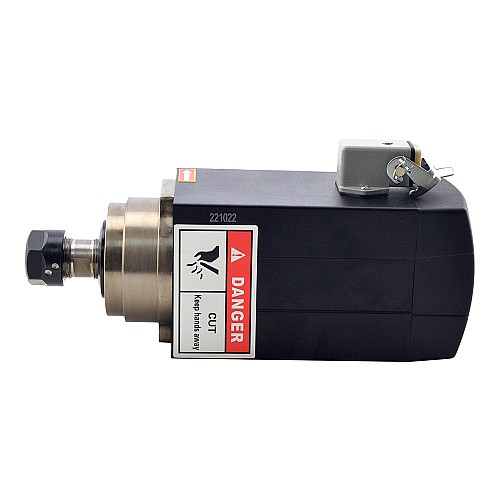

Square Spindle Motor Air Cooled 110V 1.5KW 24000RPM 400Hz ER20 Collet CNC Machine

Square Spindle Motor Air Cooled 110V 1.5KW 24000RPM 400Hz ER20 Collet CNC Engraving Router Milling Grinding Machine STEPPERONLINE CNC VFD Motor 110V AC Spindle 4 Bearings - GDZ93x82-1.5A4 | StepperOnline AU

Square Spindle Motor Air Cooled 110V 1.5KW 24000RPM 400Hz ER20 Collet CNC Machine

0 reviews - Write a review

A$0.00

In Stock: 1
Model: GDZ93x82-1.5A4
Gross Weight: 6.50kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

Manufacturer Part Number: GDZ93x94-1.5A4
Material: Stainless steel
Size: 137x82(Length: 137mm, Width: 82mm)
Power: 1.5KW
Voltage: 110VAC
Current: 13.6A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6 mm)
Weight: 6.15 kg

Operating Environment
Cooling Method	Air cooled
Spindle Motor Specification
Bearing Lubrication	Grease
Body Height(mm)	94
Body Length(mm)	137
Body Width(mm)	82
Collet Size	ER20
Material	Stainless steel
Power(Kw)	1.5
Shape	Square
Voltage(VAC)	220
Electrical Specification
Current(A)	13.6
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7005, 2x7002
Weight(Kg)	6.15
