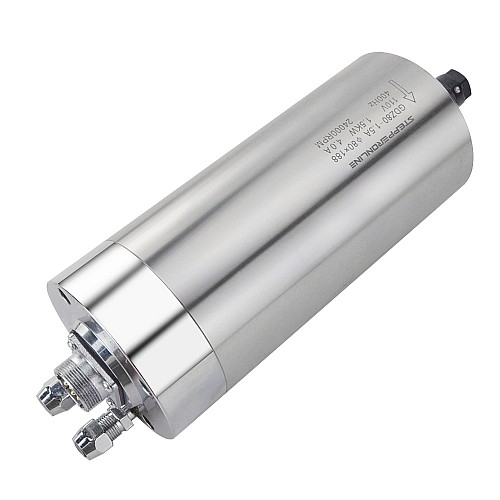

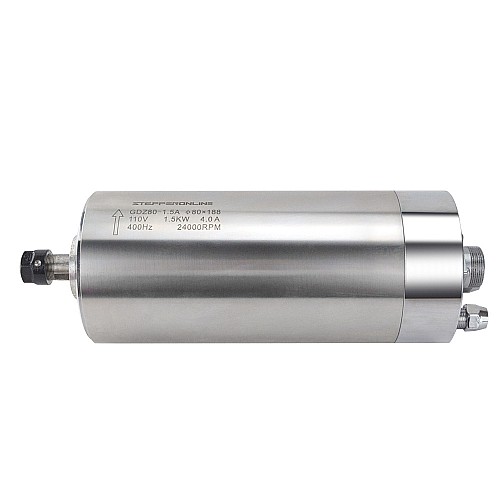

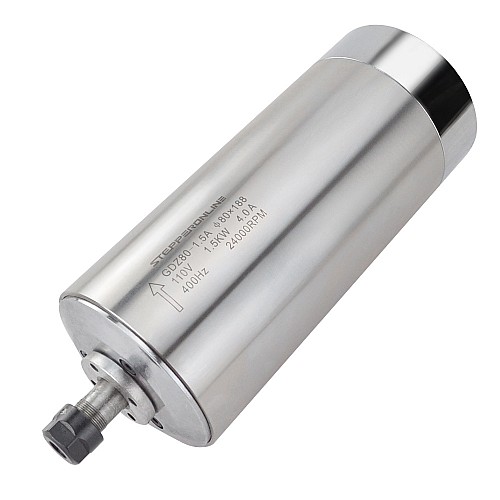

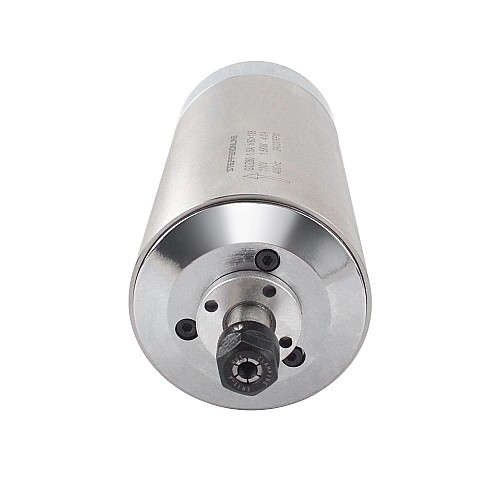

Spindle Motor Water Cooled 110V 1.5KW 24000RPM 400Hz ER11 Collet Wood Engraving Milling Machine

0 reviews - Write a review

A$0.00

In Stock: 1
Model: GDZ80-1.5A4
Gross Weight: 4.45kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

Manufacturer Part Number: GDZ80-1.5A4
Material: Stainless steel
Size: Ø80x193.5(Middle body diameter: 80 mm, Length:193.5 mm)
Power: 1.5 KW
Voltage: 110 VAC
Current: 10 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Water cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER11 Collet(6 mm)
Bearings: 2x7002C(P4 DT), 1x7002C(P4)
Weight: 4.05 kg

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is GDZ80F-1.5A4.

Operating Environment
Cooling Method	Water cooled
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	188
Collet Size	ER11
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	1.5
Shape	Round
Voltage(VAC)	110
Electrical Specification
Current(A)	10
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7002C(P4 DT), 1x7002C(P4)
Weight(Kg)	4.05
