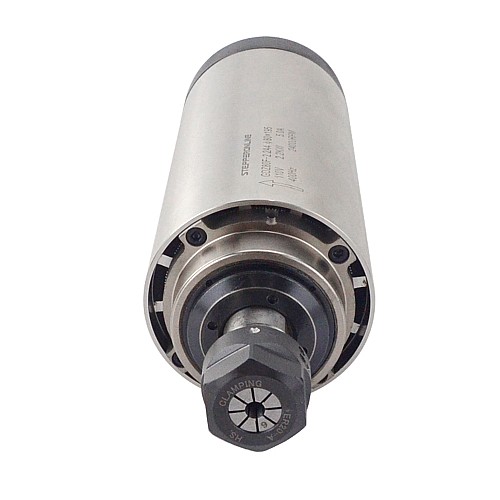

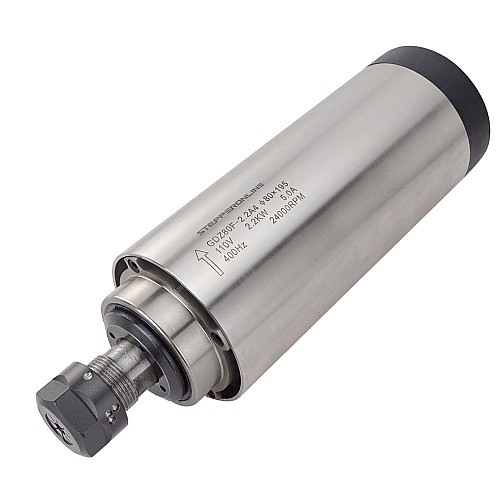

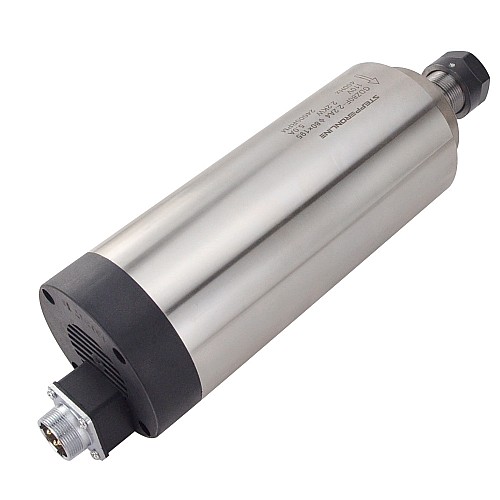

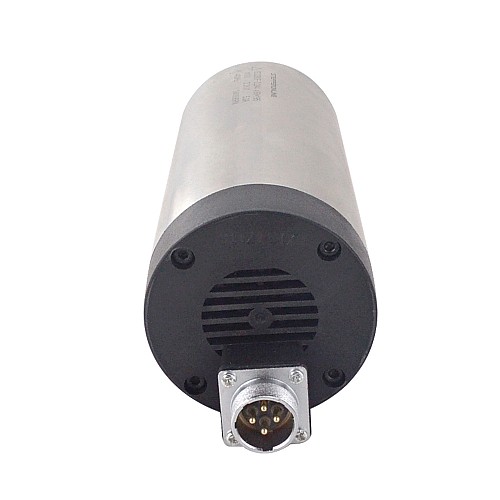

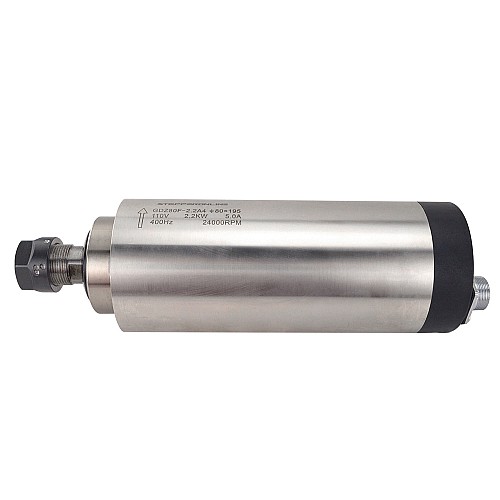

Spindle Motor Air Cooled 110V 2.2KW 24000RPM 400Hz ER20 Collet Wood Engraving Milling Machine

0 reviews - Write a review

A$0.00

In Stock: 1
Model: GDZ80F-2.2A4
Gross Weight: 5.15kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Specification

Manufacturer Part Number: GDZ80F-2.2A4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80mm, Length:195mm)
Power: 2.2KW
Voltage: 11VAC
Current: 5A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Air cooled
Runout off: Less than 0.005mm
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Bearings: 2x7005, 2x7002
Weight: 4.75kg

Operating Environment
Cooling Method	Air cooled
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	195
Collet Size	ER20
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	2.2
Shape	Round
Voltage(VAC)	110
Electrical Specification
Current(A)	5
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7005, 2x7002
Weight(Kg)	4.75
