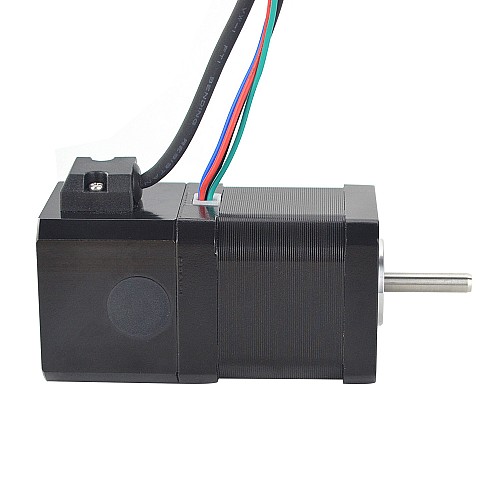

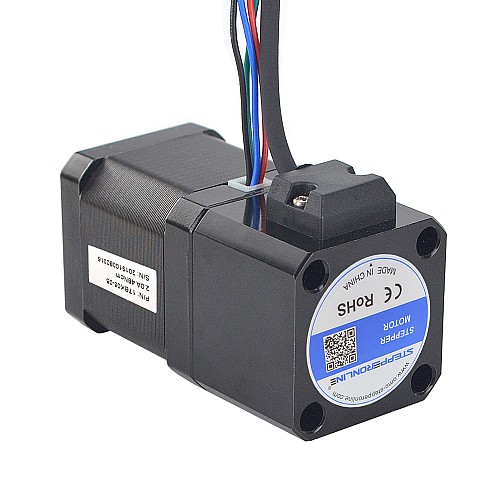

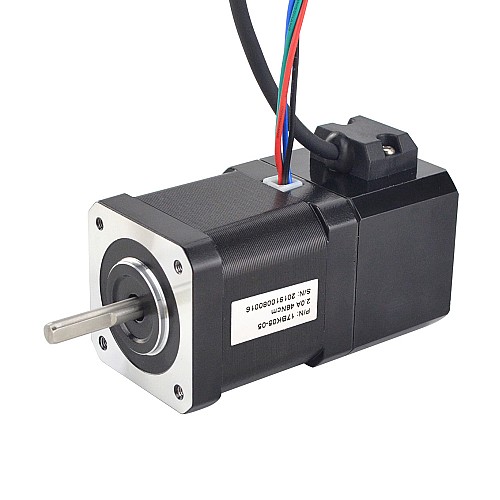

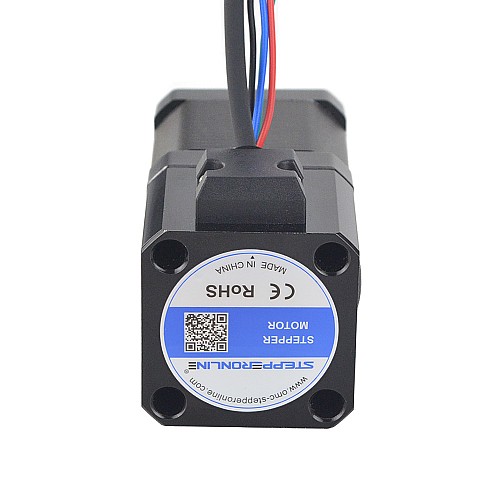

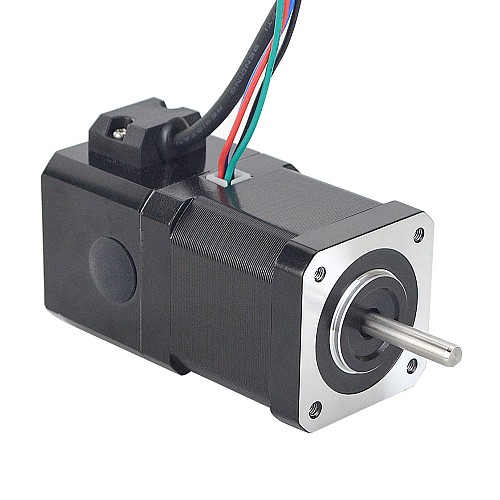

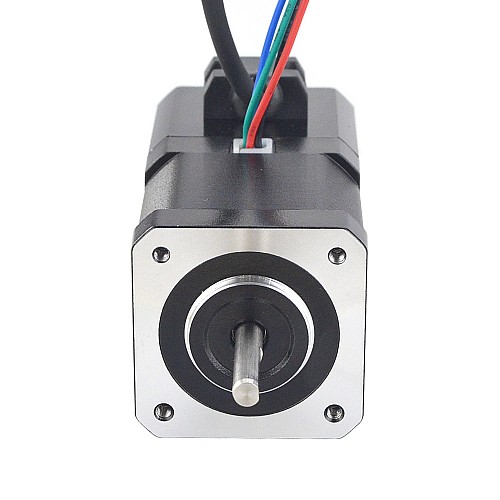

P Series Nema 17 Stepper Motor 48Ncm(67.99oz.in) with Electromagnetic Brake

0 reviews - Write a review

A$96.90

5 + A$92.34

10 + A$88.19

50 + A$84.40

100 + A$80.91

In Stock: Pre-order
Model: 17BK05-05
Gross Weight: 0.65kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Electrical Specification

Manufacturer Part Number: 17BK05-05
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 48Ncm(67.99oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.35ohms
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Brake Rated Voltage: 24V
Brake Torque: 0.5Nm(70.8oz.in)
Brake Power: 5W

Physical Specification

Frame Size: 42 x 42mm
Body Length: 80.1mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Shaft Length: 15mm
Lead Length: 450mm

Connection

A+	A-	B+	B-	Brake DC+	Brake DC-
Black	Green	Red	Blue	Red	Black

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	48
Phase Resistance(ohms)	1.35
Rated Current(A)	2.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	50
Brake Torque(oz.in)	70.8
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
