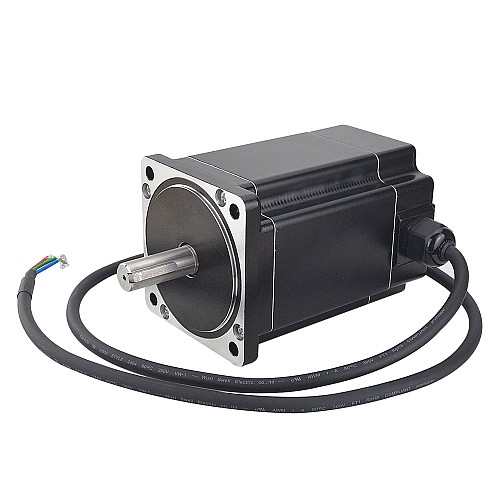

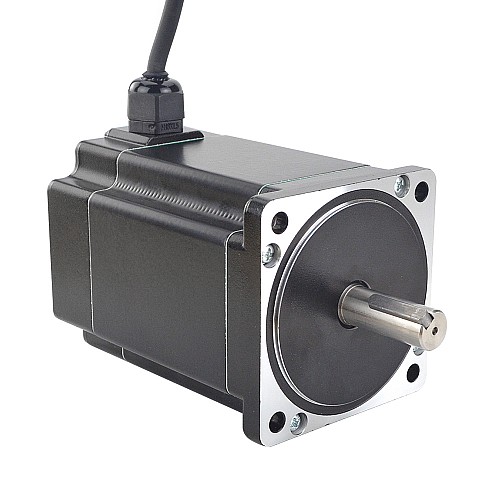

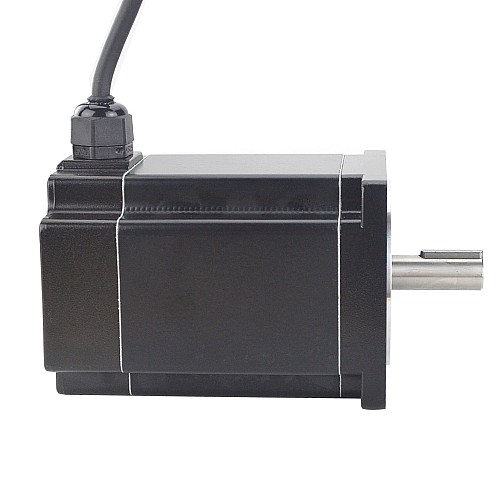

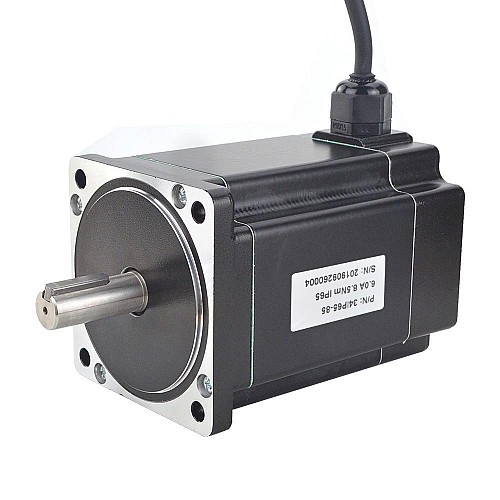

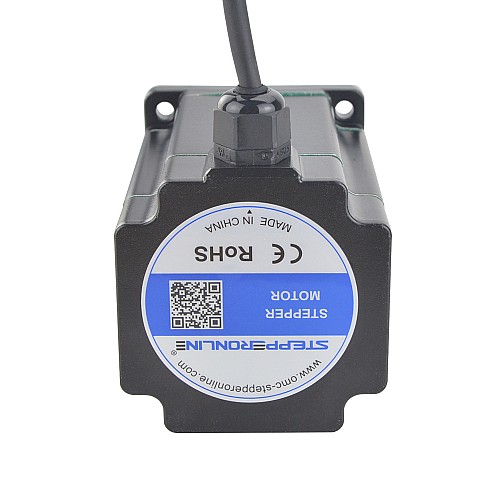

P Series IP65 Waterproof Nema 34 Stepper Motor 6.0A 8.5Nm(1203.94oz.in)

0 reviews - Write a review

A$165.10

5 + A$155.54

10 + A$147.01

50 + A$139.38

100 + A$132.48

In Stock: Pre-order
Model: 34IP65-85
Gross Weight: 4.25kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This P series Nema 34 stepper motor with IP65 waterproof ratings and 8.5Nm(1203.94oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.

Electrical Specification

Manufacturer Part Number: 34IP65-85
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1203.94oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.55ohms
Inductance: 5.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 126.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Lead Length: 1000mm
IP Rating: IP65
Weight: 3.6kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1203.94
Inductance(mH)	5.0
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	0.55
Rated Current(A)	6.0
Physical Specification
Body Length(mm)	126.5
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	65
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Single Shaft
Weight(Kg)	3.6
