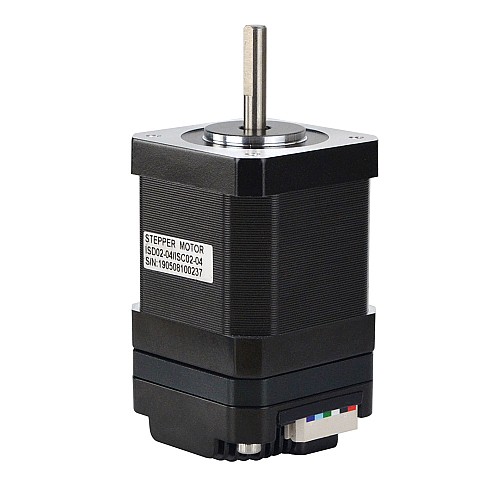

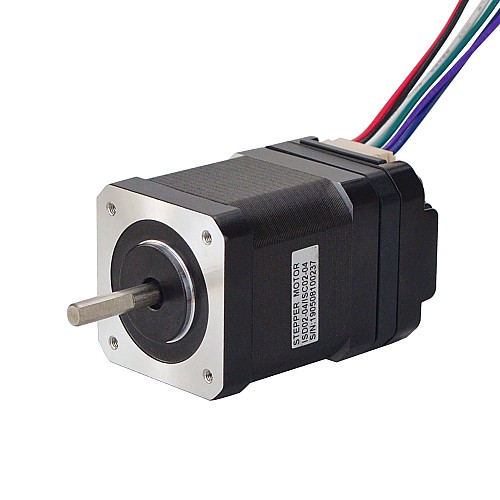

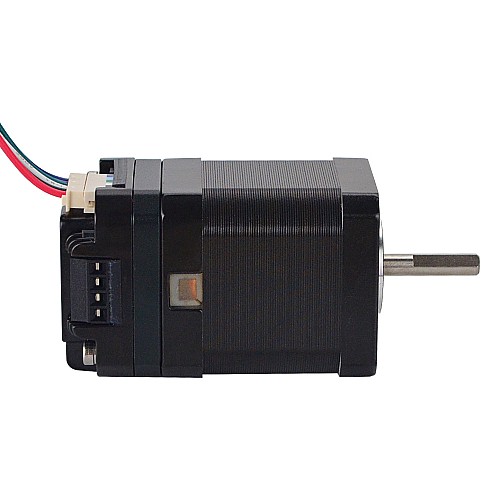

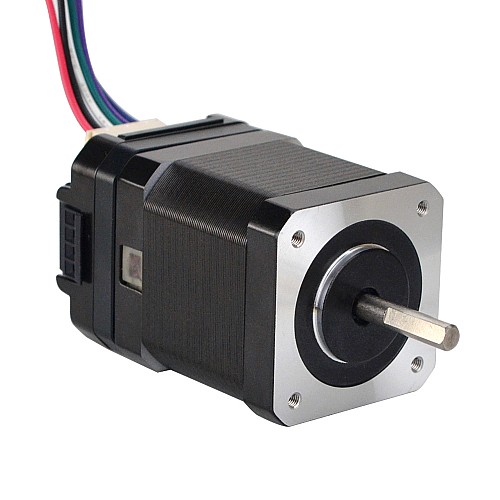

Nema 17 Integrated Stepper Motor 0.44Nm(62.31oz.in) w/Driver ISD02 10-30VDC

0 reviews - Write a review

A$57.23

5 + A$55.26

10 + A$53.44

50 + A$51.73

100 + A$50.13

In Stock: 200
Model: ISD02-04
Gross Weight: 0.50kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specifications

Manufacturer Part Number: ISD02-04
Step Angle: 1.8deg
Holding Torque: 44Ncm(62.31oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 2ohms
Inductance: 2.5mH ± 20%(1KHz)

Physical Specifications

Frame Size: 42 x 42mm
Body Length: 69.5mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Weight: 404.5g

Driver Specifications

Output Peak Current: 0 - 2A
Input Voltage: 10 - 30VDC
Insulation Class: B 130°C[266°F]
Pulse Input Frequency: 5 - 12KHz(Full-step)
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.

Connection

V+	GND	VCC	DIR	STP	ENA
Red	Black	White	Green	Purple	Blue

Product Type
Product Type	Integrated Stepper Motor
Electrical Specification
Analog Input	No
Control Modes	Pulse Mode
Encoder Feedback	No (Open Loop)
Holding Torque(Ncm)	44
Holding Torque(oz.in)	62.31
Inductance(mH)	2.5
Input Voltage Reference(V)	12 - 24DC
Input Voltage(V)	10 - 30DC
Phase Resistance(ohms)	2
Rated Current(A)	1.68
Physical Specification
Body Length(mm)	69.5
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
