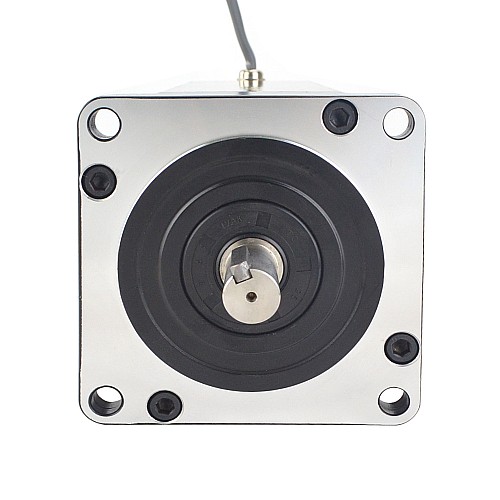

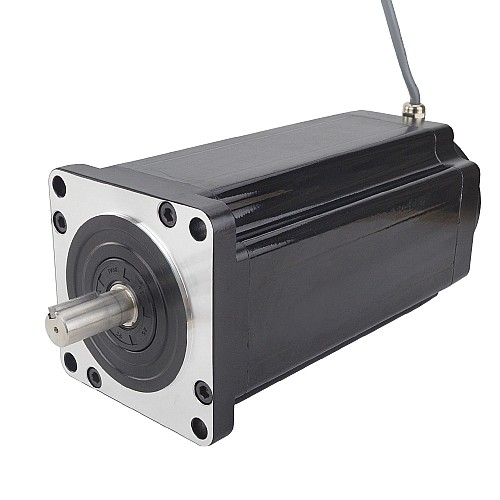

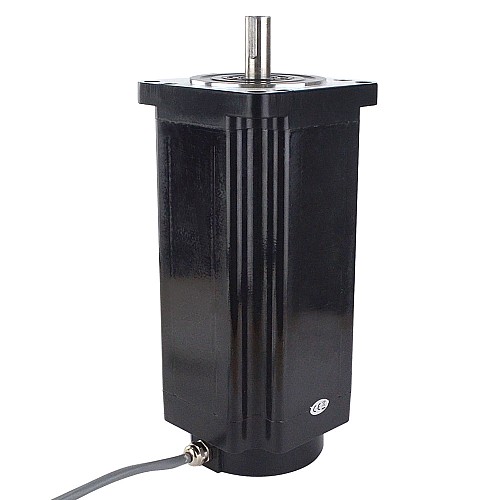

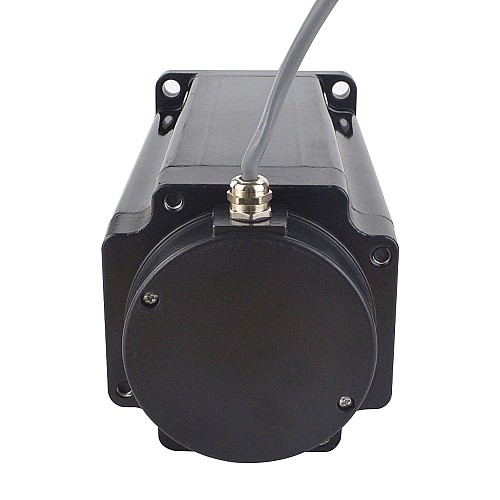

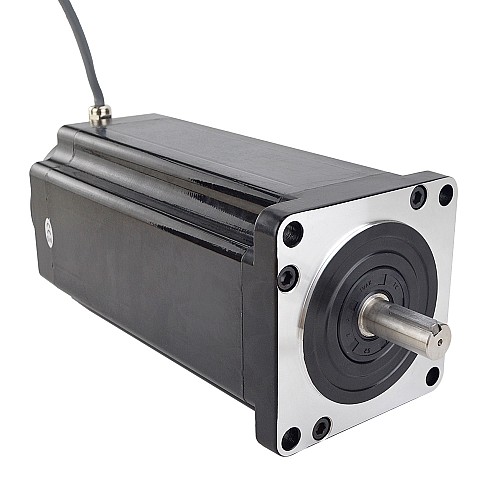

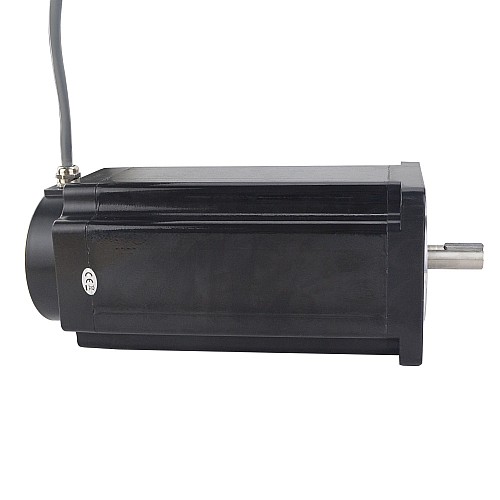

Nema 52 3-phase Stepper Motor Bipolar 50 Nm(7082oz.in) 5.0A 130x130x260mm

Discontinued

Nema 52 3-phase Stepper Motor Bipolar 50 Nm(7082oz.in) 5.0A 130x130x260mm

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 52HT102-5003S
Gross Weight: 22.00kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 52HT102-5003S
Number of Phase: 3
Step Angle: 1.2 deg
Holding Torque: 50 Nm(7082oz.in)
Rated Current/phase: 5 A
Phase Resistance: 2.75 ohms± 10%
Inductance: 32 mH ± 20%(1KHz)

Physical Specification

Frame Size: 130 x 130 mm
Body Length: 260 mm
Shaft Diameter: Φ19 mm
Shaft Length: 48 mm
keyway Shaft Length: 30 mm
Number of Leads: 3
Lead Length: 300 mm

Connection

U	V	W
RED	YEL	GRN

Electrical Specification
Holding Torque(Ncm)	5000
Holding Torque(oz.in)	7082
Inductance(mH)	32
No. of Phase	3
Phase Resistance(ohms)	2.75
Rated Current(A)	5
Step Angle(deg.)	1.2
Physical Specification
Body Length(mm)	260
Frame Size(mm)	Nema 52 (130 x 130)
IP Rating	40
Lead Length(mm)	300
No. of Lead	3
Shaft Diameter(mm)	19
Shaft Length(mm)	48
Weight(g)	22
