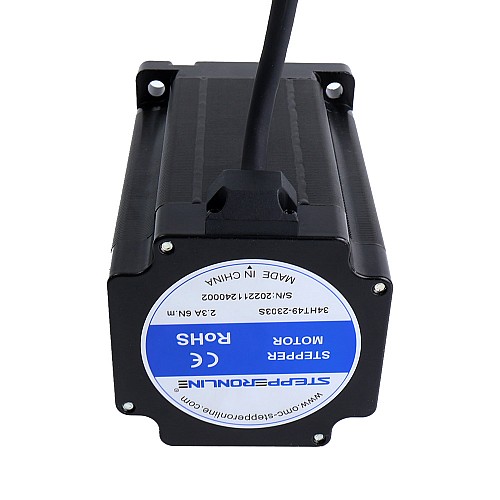

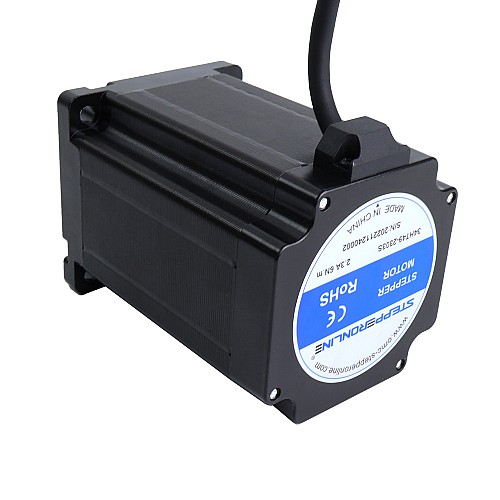

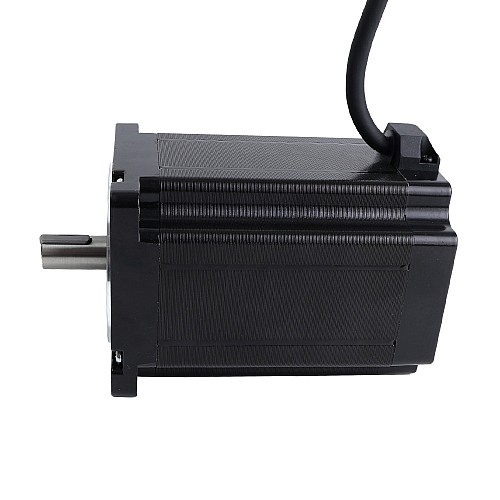

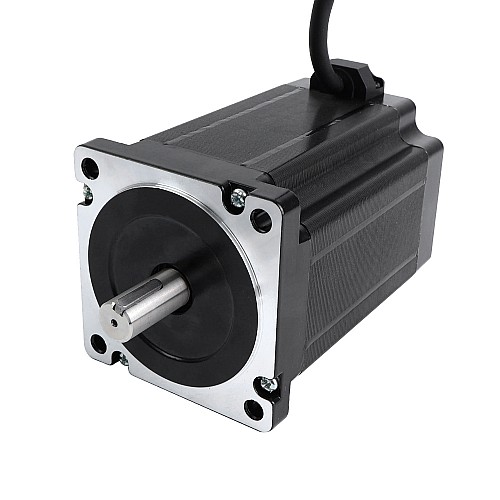

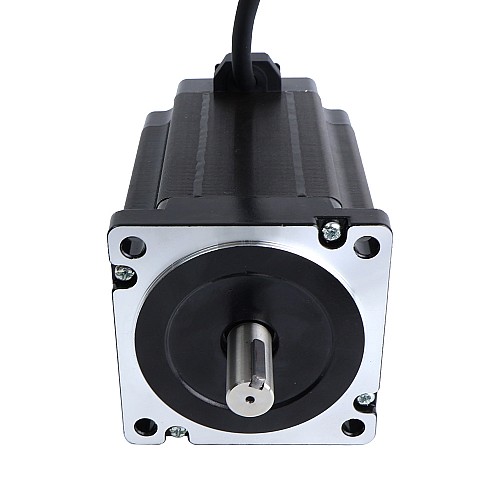

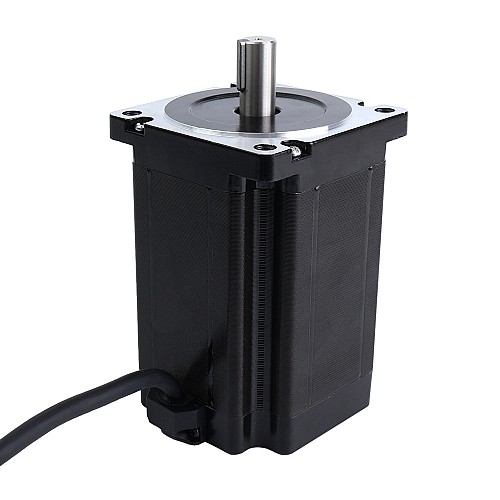

Nema 34 1.2deg 3-phase Stepper Motor 2.3A 6Nm(849.8oz.in)

Discontinued

Nema 34 1.2deg 3-phase Stepper Motor 2.3A 6Nm(849.8oz.in)

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 34HT49-2303S
Gross Weight: 5.80kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 34HT49-2303S
Number of phase: 3
Step Angle: 1.2deg
Holding Torque: 6Nm(849.8oz.in)
Rated Current/phase: 2.3A
Phase Resistance: 2.3ohms
Inductance: 19mH±20%(1KHz)

Physical Specification

Frame Size: 86 x 86mm
Body Length: 125mm
Shaft Diameter: Φ14mm
Shaft Length: 29.5mm
Keyway Length: 20mm
Lead Length: 2500mm

Connection

U	V	W
Red	Blue	Black

Electrical Specification
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	600
Holding Torque(oz.in)	849.8
Inductance(mH)	19
No. of Phase	3
Phase Resistance(ohms)	2.3
Rated Current(A)	2.3
Step Angle(deg.)	1.2
Physical Specification
Body Length(mm)	125
Frame Size(mm)	Nema 34 (86 x 86)
Lead Length(mm)	2500
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	29.5
