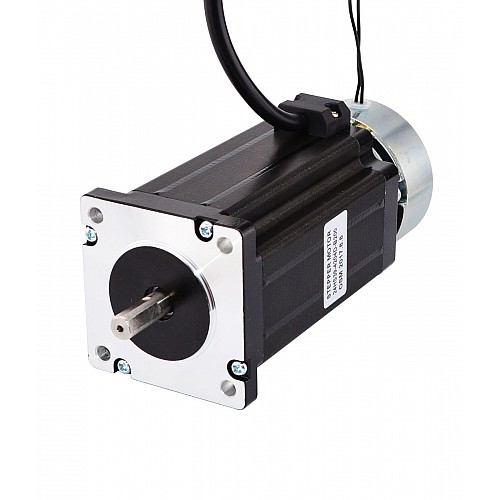

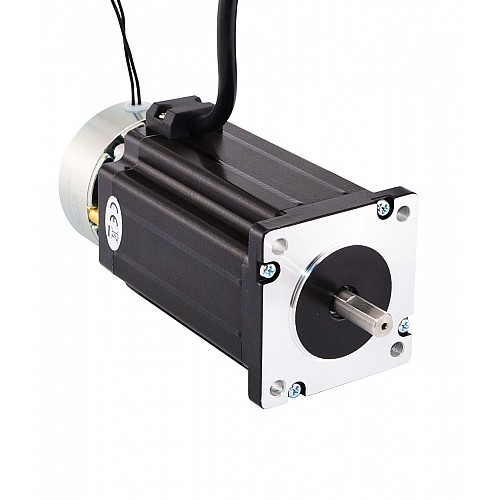

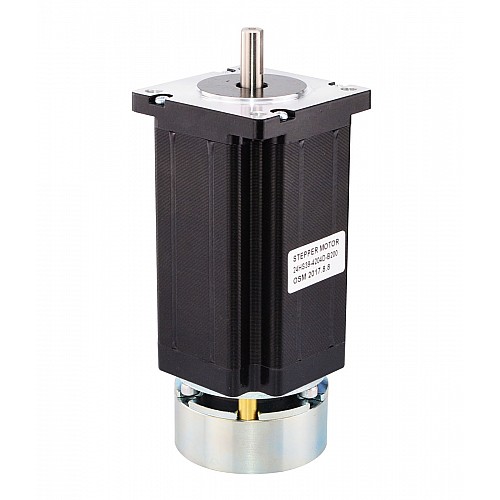

Nema 24 Stepper 4.0Nm(566 oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
0 reviews - Write a review
A$0.00
  • In Stock: 1
  • Model: 24HS39-4204D-B200
  • Gross Weight: 2.23kg
  • Certificated: ISO, CE, UKCA, RoHS
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Motor Specification

  • Manufacturer Part Number: 24HS39-4204D-B200
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 4Nm(566oz.in)
  • Rated Current/phase: 4.24A
  • Voltage: 2.96V
  • Phase Resistance: 0.7ohms
  • Inductance: 3mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.6kg

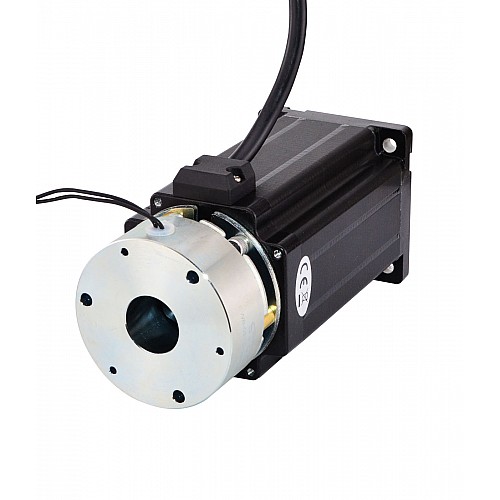

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque: 2Nm(283.2oz.in)
  • Moment of Interia : 3.8x10-6 kg.cm2
  • Voltage: 24V
  • Power: 11.5W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.4kg

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue
Physical Specification
IP Rating 40
