Nema 23 Non-captive 1.2Nm(169.93oz.in) 56mm Stack 2A Lead 2mm(0.07874") Length 150mm

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 23N22S2004AJ2-150RS-C1
Gross Weight: 0.86kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

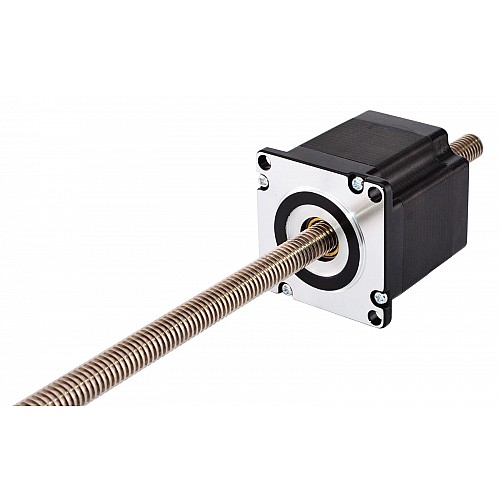

This is a Nema 23 non-captive linear stepper motor. It consists of a 56mm long Nema 23 stepper motor with 1.8degree step angle and 2.0A rated current and a 150mm(5.9055) long Tr11x2 linear screw.

Electrical Specification

Manufacturer Part Number: 23N22S2004AJ2-150RS-C1
Motor Type: Non Captive Linear Stepper
Holding Torque: 1.2Nm(169.93oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 3.6ohms
Inductance: 12mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ11mm(0.433")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23N22S2004AJ2-150RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	12
Minimal Thrust(N) @300pps	32.2
Phase Resistance(ohms)	3.6
Rated Current(A)	2.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	56
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
Lead Screw Diameter(mm)	11
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	Non-Captive
No. of Lead	4
