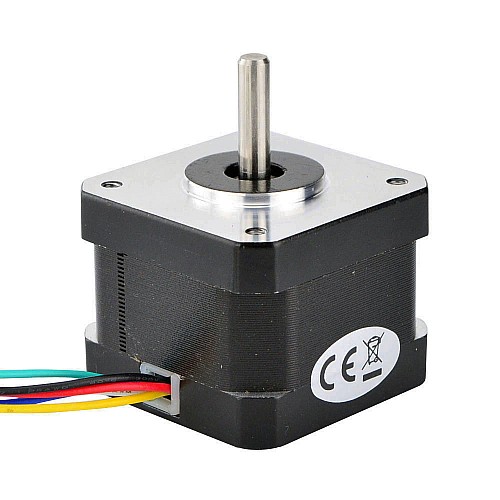

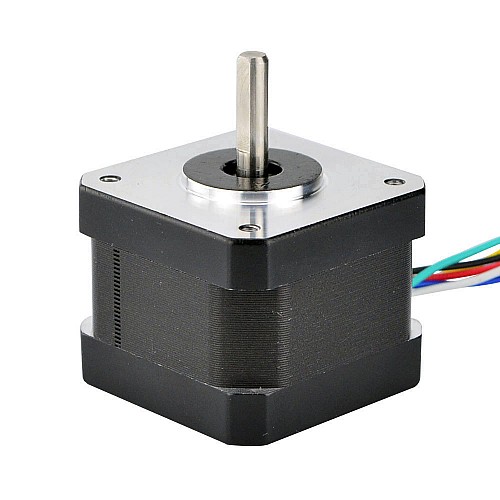

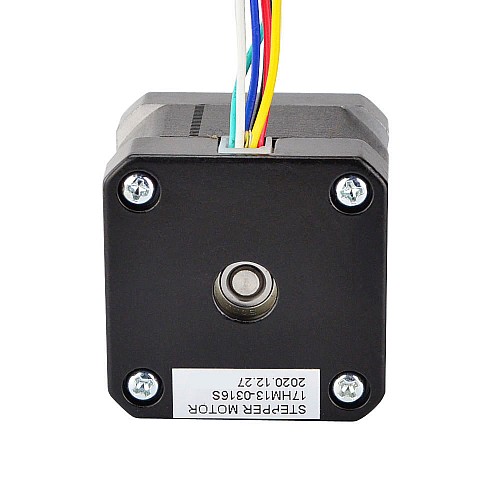

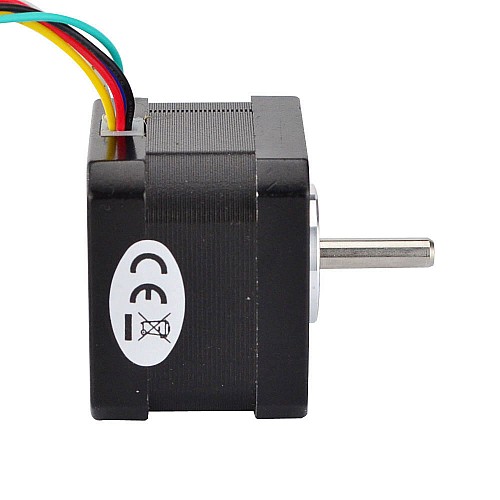

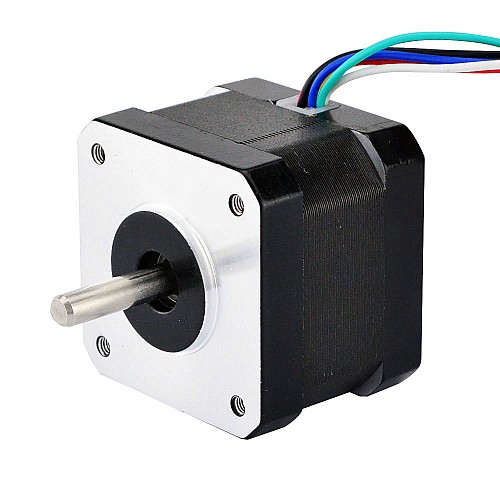

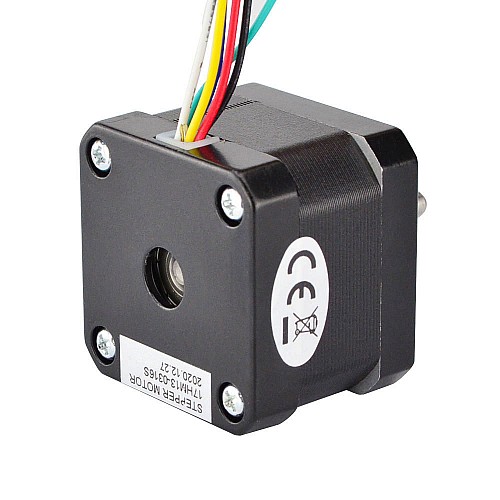

Nema 17 Unipolar 0.9deg 16Ncm(22.66oz.in) 0.3A 42x42x34mm 6 Wires

1 reviews - Write a review

A$15.14

5 + A$14.42

10 + A$13.78

50 + A$13.18

100 + A$12.64

In Stock: Pre-order
Model: 17HM13-0316S
Gross Weight: 0.28kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This unipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x34mm. It has 6 wires, each phase draws current 0.31A, with holding torque 16Ncm(22.66oz.in).

Electrical Specification

Manufacturer Part Number: 17HM13-0316S
Motor Type: Unipolar Stepper
Step Angle: 0.9deg
Holding Torque: 16Ncm(22.66oz.in)/23Ncm(31.8oz.in)
Rated Current/phase: 0.31A/0.22A
Phase Resistance: 38.5ohms/77.0ohms
Inductance: 36mH±20%(1KHz)/144mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 222g

Connection

Bipolar

A+	A-	B+	B-
Black	Green	Red	Blue

Unipolar

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	16
Holding Torque(oz.in)	22.66
Inductance(mH)	36
Phase Resistance(ohms)	38.5
Rated Current(A)	0.31
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	6
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	222
