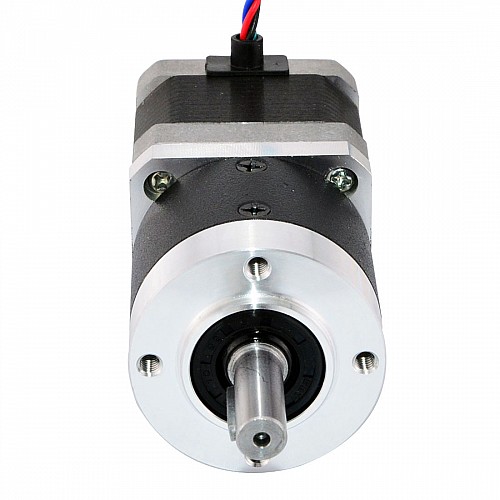

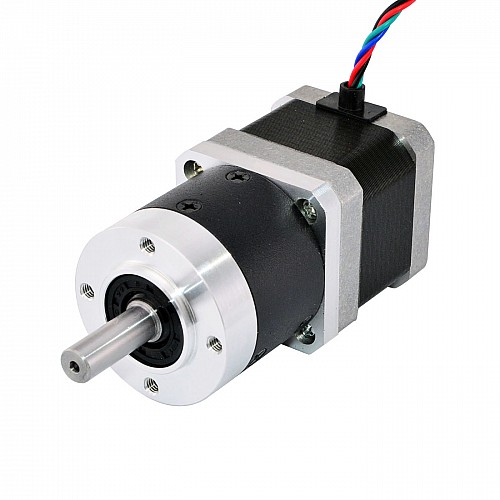

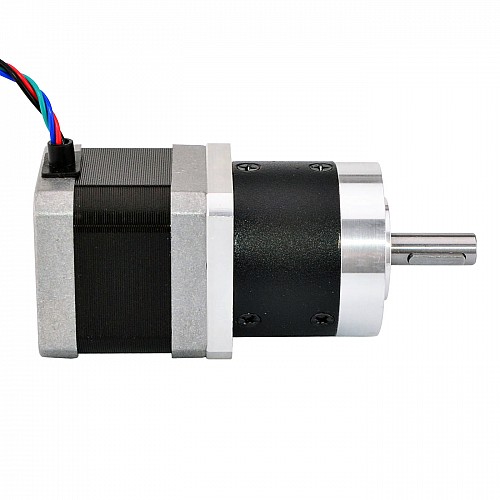

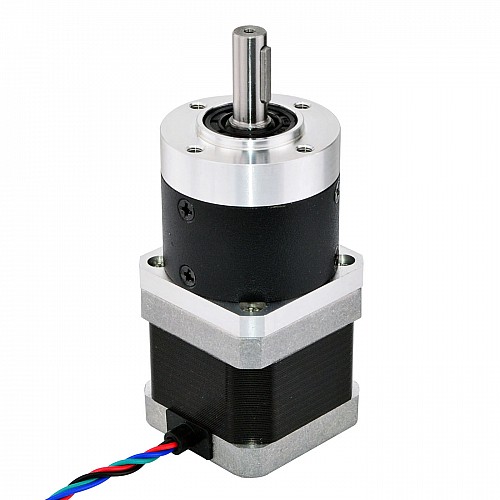

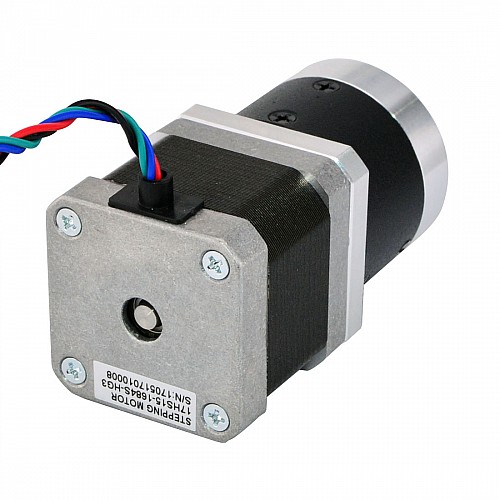

Nema 17 Stepper Motor L=39mm Gear Ratio 3:1 High Precision Planetary Gearbox

0 reviews - Write a review

A$79.60

5 + A$75.66

10 + A$72.10

50 + A$68.86

100 + A$65.90

In Stock: Pre-order
Model: 17HS15-1684S-HG3
Gross Weight: 0.62kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This Nema 17 stepper motor with 39mm body and 1.68A rated current, integrated with a 41mm Planetary gearbox of 3:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Part Number: 17HS15-1684S-HG3
Motor Type: Bipolar Stepper
Step Angle: 0.6deg
Holding Torque without Gearbox: 39Ncm(55oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.6ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 3 :1
Efficiency: 92%
Backlash at No-load: <=30arcmin
Max. Permissible Torque: 3.5Nm(495.6oz.in)
Moment Permissible Torque: 6Nm(849.7oz.in)
Max. Radial Load: 100N
Ambient Temperature: -10 - 90℃
Noise: <=50dB
Life: 20000h

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 41mm
Shaft Diameter: Φ8mm
Shaft Length: 23.5mm
Key-way Length: 14mm
Number of Leads: 4
Lead Length: 320mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.39
Inductance(mH)	3.2
Phase Resistance(ohms)	1.6
Physical Specification
Backlash at No-load	<=30 arcmin
Body Length(mm)	80
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	3
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Single Shaft

File	Size
17HS15-1684S-HG3.STEP	2.56MB	Download
17HS15-1684S-HG3_Torque_Curve.pdf	179.58KB	Download
17HS15-1684S-HG3 Full Datasheet	129.83KB	Download
17HS15-1684S_Torque_curve.pdf	213.98KB	Download
