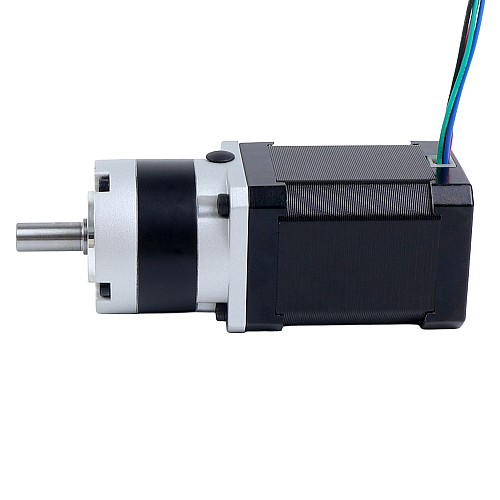

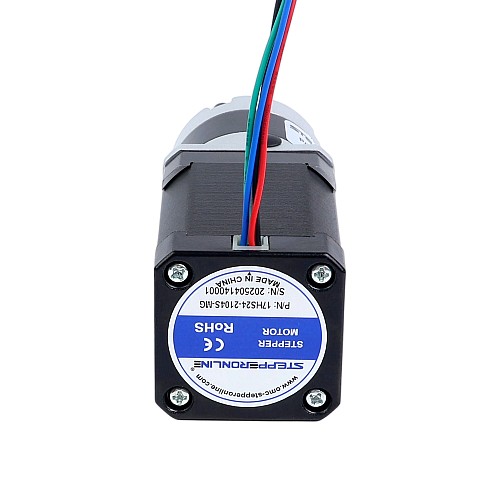

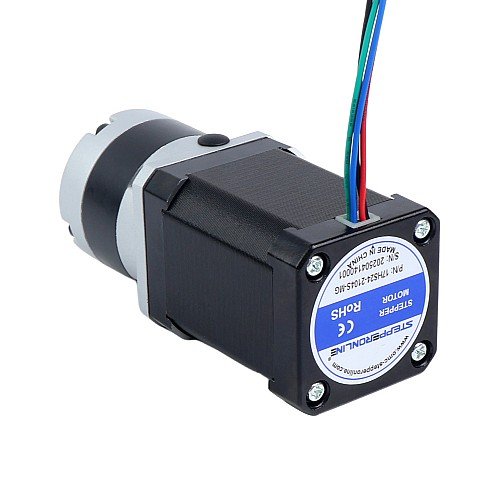

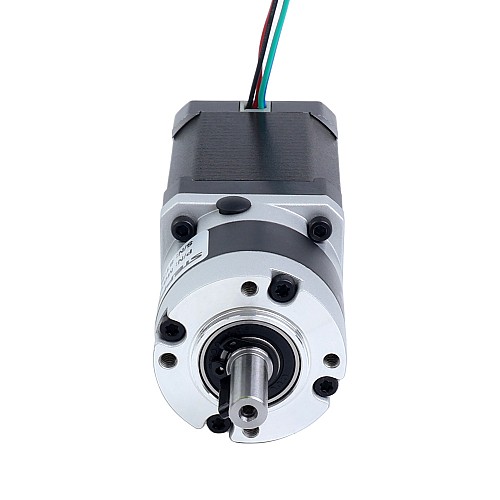

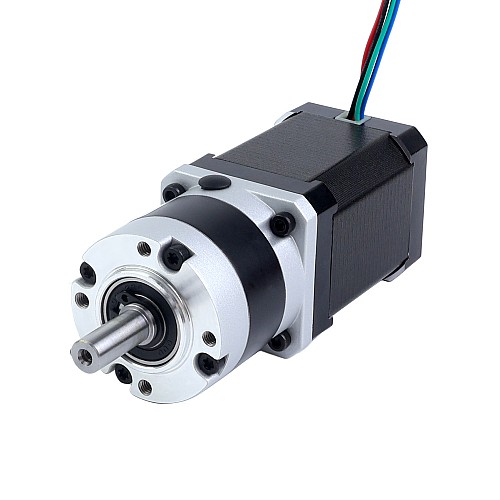

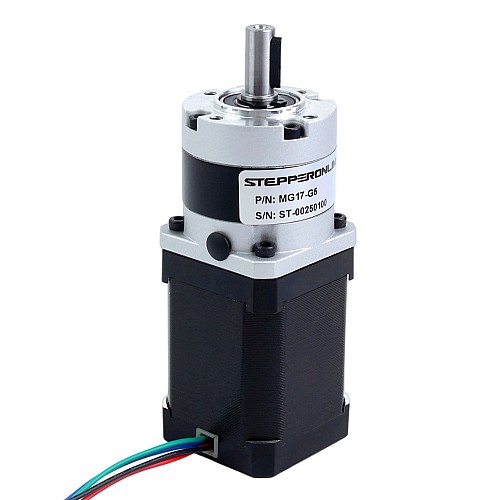

Nema 17 Stepper Motor Bipolar L=60mm w/ Gear Ratio 5:1 MG Series Planetary Gearbox

0 reviews - Write a review

A$39.44

5 + A$37.87

10 + A$36.43

50 + A$35.09

100 + A$33.86

In Stock: 200
Model: 17HS24-2104S-MG5
Gross Weight: 0.80kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This Nema 17 stepper motor delivers a holding torque of 0.76Nm(107.62oz.in) and features our high-precision MG series gearbox with a 5:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

Part Number: 17HS24-2104S-MG5
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.76Nm(107.62oz.in)
Rated Current/phase: 2.10A
Phase Resistance: 1.60ohms±10%
Inductance: 3.00mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 5:1
Efficiency: 90%
Backlash at No-load: <=30arcmin
Maximum Permissible Torque: 9.00Nm(1274.5oz.in)
Moment Permissible Torque: 18.00Nm(2549.01oz.in)

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 60mm
Gearbox Length: 40mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.1
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.76
Inductance(mH)	3.0
Phase Resistance(ohms)	1.6
Physical Specification
Backlash at No-load	<=30 arcmin
Body Length(mm)	100
Cable Length(mm)	500
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	5
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
Single Shaft/Dual Shaft	Single Shaft
