Nema 17 Non-captive 48mm Stack 1.3A Lead 0.794mm(0.031") Length 250mm

0 reviews - Write a review

A$0.00

In Stock: 1
Model: 17N19S1304LF3-250RS
Gross Weight: 0.60kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

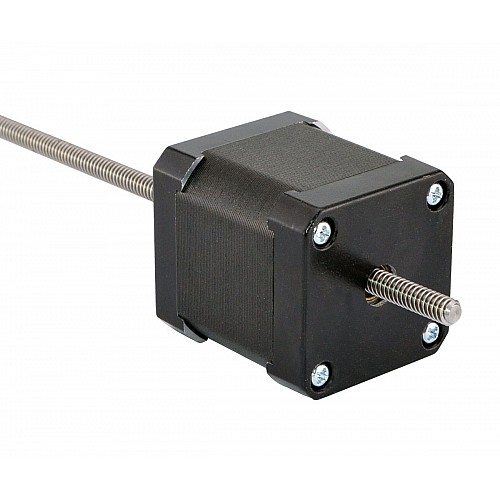

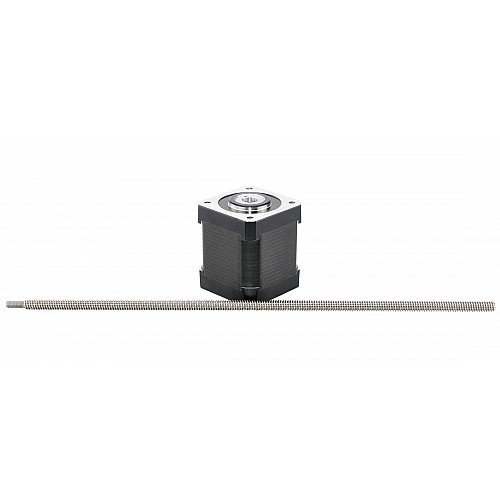

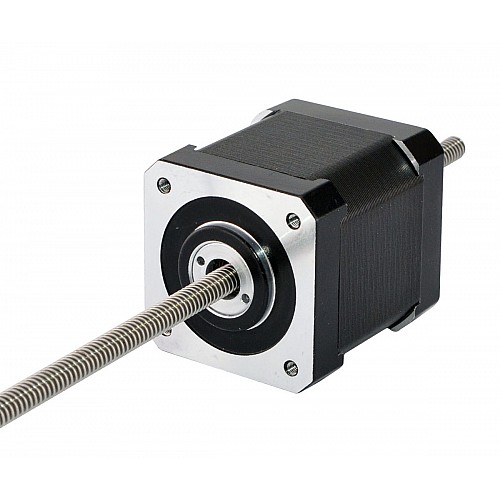

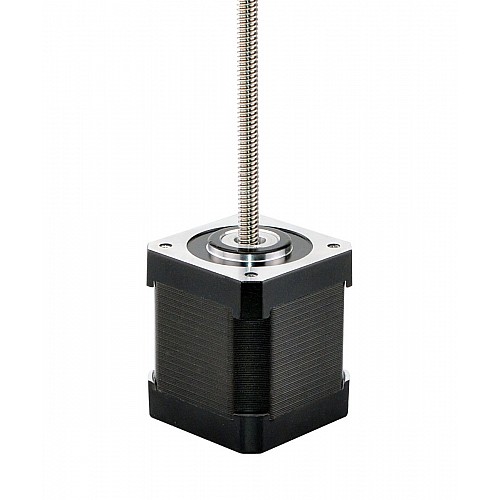

The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it works with a 6.35mm(0.25") diameter 250mm(9.8425") length lead screw, the linear travel is 0.794mm(0.03125") per revolution. This model is almost exactly same as Haydon Kerk 43000 series size 17 double stack non-captive stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 17N19S1304LF3-250RS(17N19S1304LF-250RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 560N(300pps)
Rated Current/phase: 1.3A
Phase Resistance: 3.96ohms
Voltage: 5V
Inductance: 6.66mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")

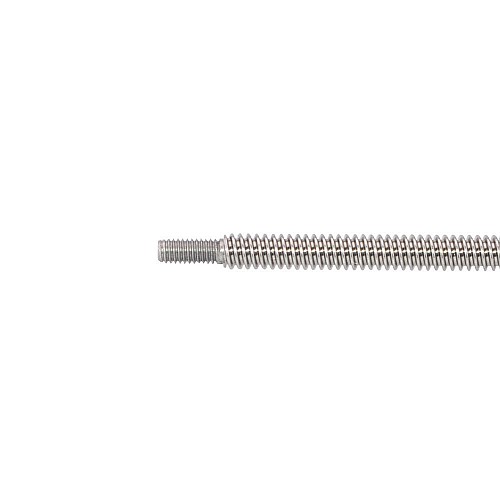

Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00396875mm(0.00015625")
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Cable Length: 300mm
Weight : 352g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17N19S1304LF4-250RS.

Product Type
Product Type	Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	6.66
Minimal Thrust(N) @300pps	560
Phase Resistance(ohms)	3.96
Rated Current(A)	1.3
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	250
Lead Travel/Revolution(mm)	0.794
Lead Travel/Step(mm)	0.00396875
Linear Motor Type	Non-Captive
No. of Lead	4
