Nema 17 Non-captive 26Ncm(36.81oz.in) 34mm Stack 0.4A Lead 8mm(0.31496") Length 320mm

0 reviews - Write a review

A$0.00

5 + A$52.42

10 + A$50.78

50 + A$49.26

100 + A$47.82

In Stock: 1
Model: 17N13S0404MB2-320RS
Gross Weight: 1.00kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

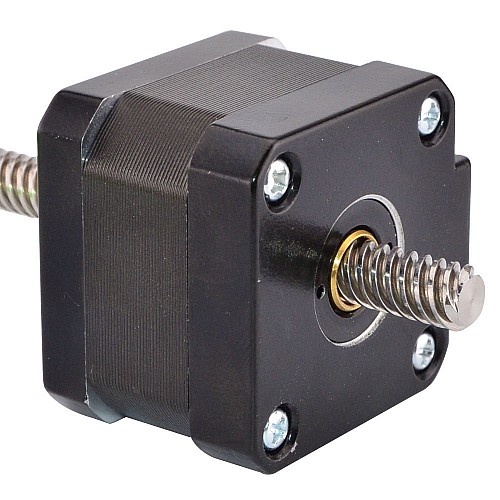

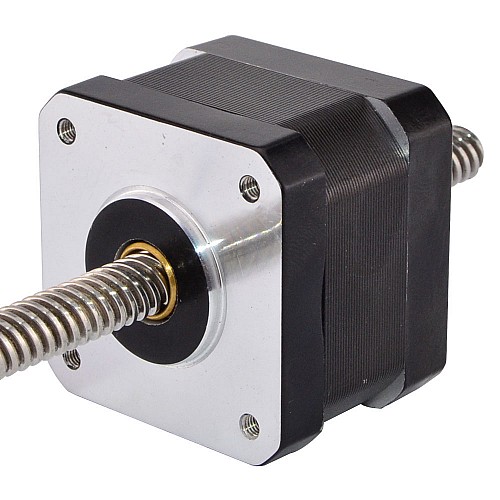

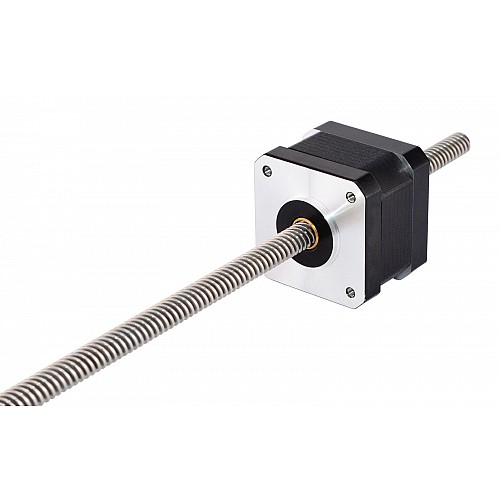

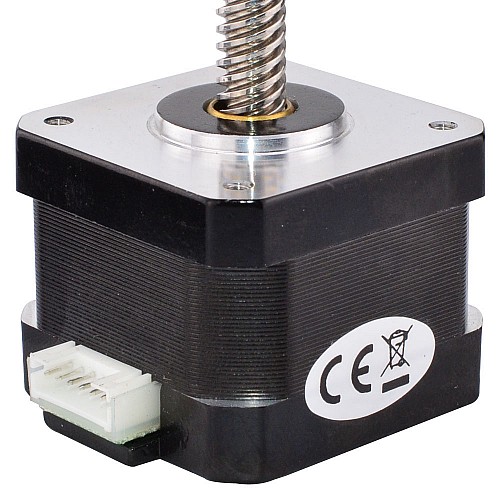

This is a Nema 17 non-captive linear stepper motor with a holding torque of 0.26Nm(36.81oz.in). It consists of a 34mm long Nema 17 stepper motor with a step angle of 1.8degrees and a rated current of 0.4A and a 320mm(12.598") long Tr8x8 linear screw.

Electrical Specification

Manufacturer Part Number: 17N13S0404MB2-320RS(17N13S0404MB-320RS)
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8deg
Holding Torque: 0.26Nm(36.81oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Inductance: 37mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 320mm(12.598")
Lead Screw Diameter: Φ8mm(0.315")
Lead/Step: 0.04mm(0.0015748")
Lead/Revolution: 8mm(0.315")
Number of Leads: 4
Cable Length: 400mm

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17N13S0404MB4-320RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	37
Minimal Thrust(N) @300pps	1.7
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Cable Length(mm)	400
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Screw Diameter(mm)	8
Lead Screw Length(mm)	320
Lead Travel/Revolution(mm)	8
Lead Travel/Step(mm)	0.04
Linear Motor Type	Non-Captive
No. of Lead	4
