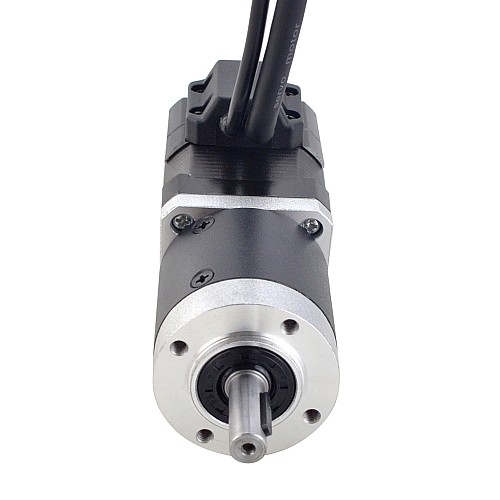

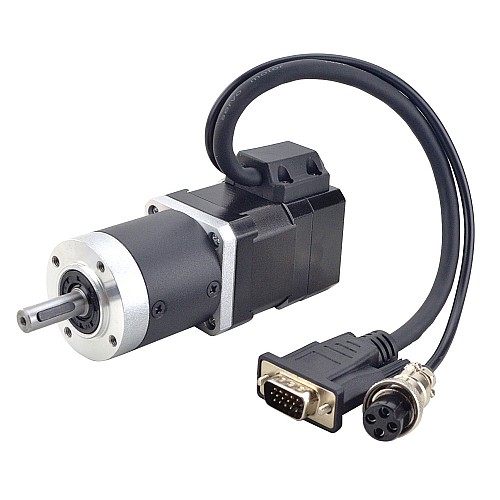

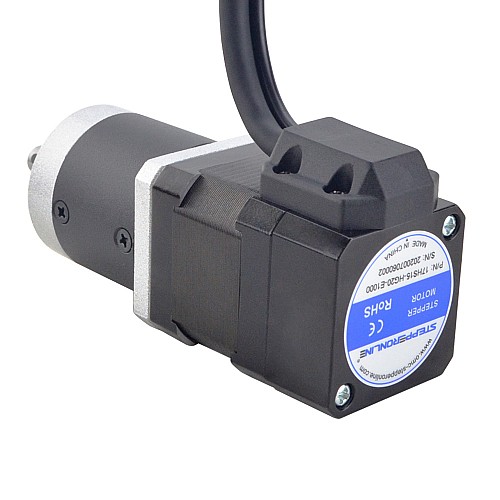

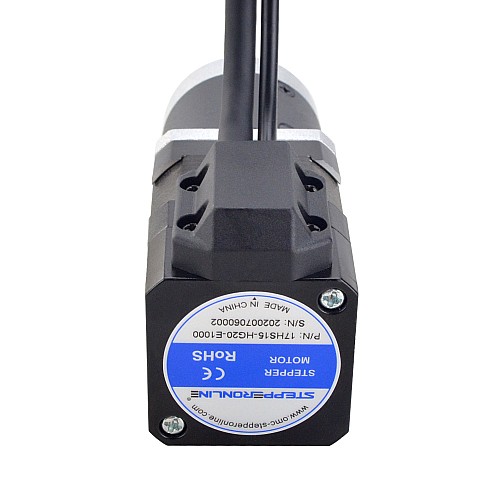

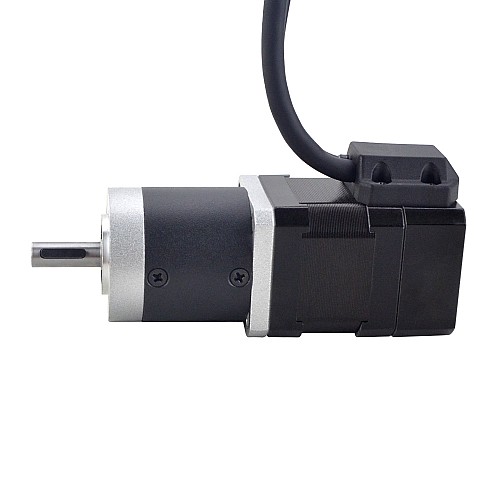

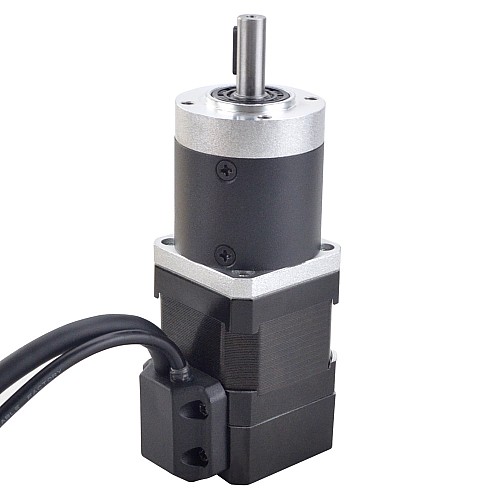

CN On Sale - Nema 17 Closed Loop Stepper Motor L=39mm Gear Ratio 20:1 High Precision Planetary Gearbox

Nema 17 Closed Loop Stepper Motor L=39mm Gear Ratio 20:1 High Precision Planetary Gearbox - 17HS15-HG20-E1000 | StepperOnline AU

-33 %

CN On Sale - Nema 17 Closed Loop Stepper Motor L=39mm Gear Ratio 20:1 High Precision Planetary Gearbox

0 reviews - Write a review

A$133.14

A$89.20

In Stock: 200
Model: CN-17HS15-HG20-E1000
Gross Weight: 0.96kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live inventory

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Electrical Specification

Manufacturer Part Number: 17HS15-HG20-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 0.39Nm(55.24oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.6ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 107.3mm
Shaft Diameter: Φ8mm
Shaft Length: 23.5mm
Keyway Shaft Length: 14mm
Lead Length: 300mm
Weight: 0.67kg

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 20:1
Efficiency: 75%
Backlash at No-load: <=1.6deg
Max. Permissible Torque: 10Nm(1416.4oz.in)
Moment Permissible Torque: 15Nm(2124oz.in)
Max. Radial Load: 100N
Noise: <=50dB
Ambient Temperature: -10 - 50℃

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	39
Inductance(mH)	3.2
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	1.6
Rated Current(A)	1.68
Stepper Motor with	Encoder/Gearbox
Physical Specification
Backlash at No-load	<=1.6 deg
Body Length(mm)	107.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	20
Gearbox Type	HG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
