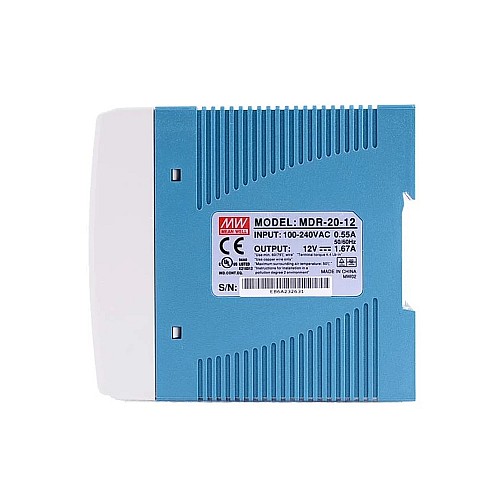

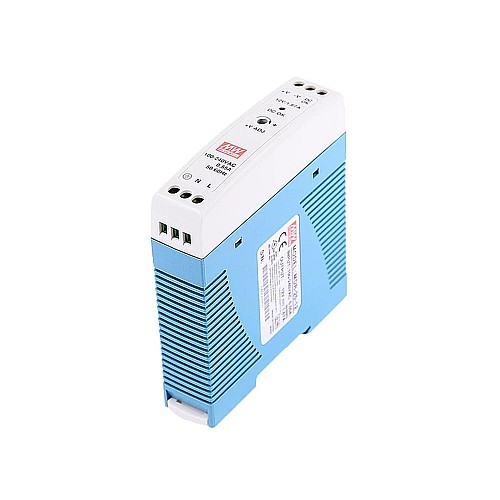

CN On Sale - MDR-20-12 MEANWELL 20W 12VDC 1.67A 115/230VAC DIN Rail Power Supply

MDR-20-12 MEANWELL 20W 12VDC 1.67A 115/230VAC DIN Rail Power Supply - MDR-20-12 | StepperOnline AU
MDR-20-12 MEANWELL 20W 12VDC 1.67A 115/230VAC DIN Rail Power Supply - MDR-20-12 | StepperOnline AU
-33 %
MDR-20-12 MEANWELL 20W 12VDC 1.67A 115/230VAC DIN Rail Power Supply - MDR-20-12 | StepperOnline AU
MDR-20-12 MEANWELL 20W 12VDC 1.67A 115/230VAC DIN Rail Power Supply - MDR-20-12 | StepperOnline AU
CN On Sale - MDR-20-12 MEANWELL 20W 12VDC 1.67A 115/230VAC DIN Rail Power Supply
0 reviews - Write a review
A$23.18
A$15.57
  • In Stock: 200
  • Brand: MEANWELL
  • Model: CN-MDR-20-12
  • Gross Weight: 0.27kg
  • Certificated: ISO, CE

Click country for live inventory

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Features

  • Brand MEANWELL
  • 12V DC 1.67A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 20W
  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Built in DC OK active signal
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances
Product Type
Product Type DIN Rail Power Supply
Electrical Specification
Efficiency(%) 80%
Max. Output Current(A) 1.67
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 22.5 x 90 x 100 / 0.89 x 3.54 x 3.94
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
Output Voltage(VDC) 12
PFC Function No
Power(W) 20
Physical Specification
Inventory Method Dedicated Inventory
File Size
MDR-20.pdf 732.94KB Download
