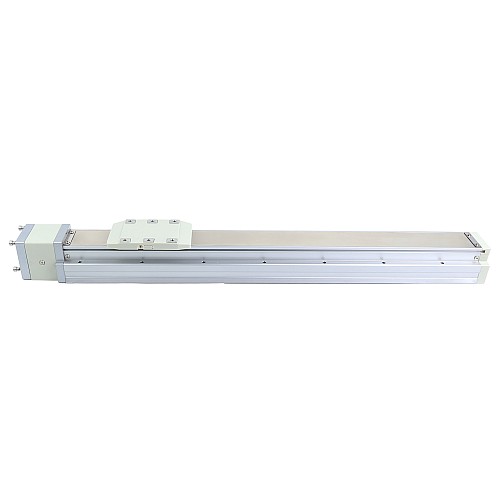

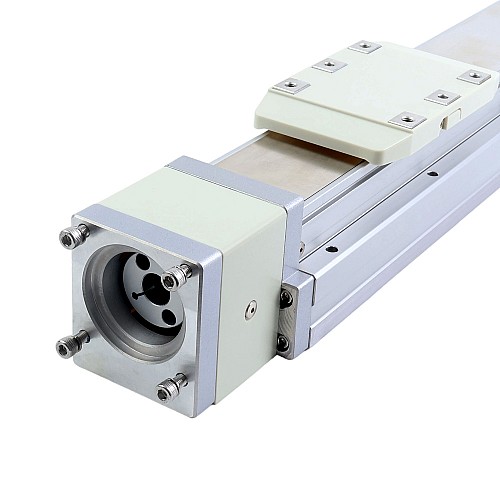

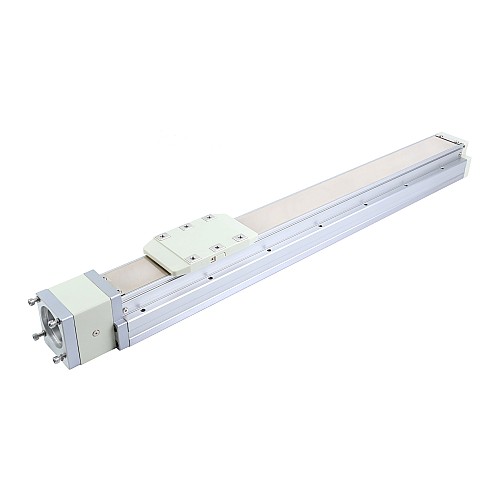

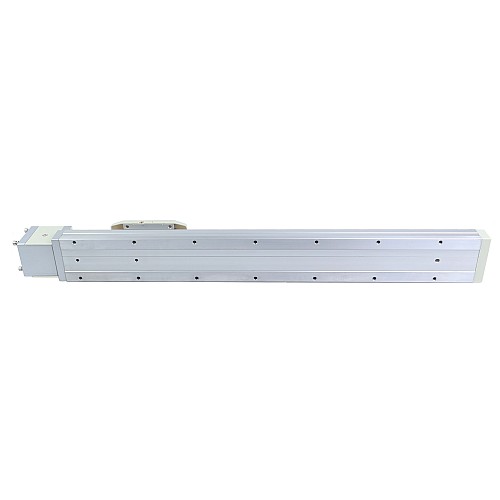

LG8 Series Ball Screw Driven Max. Horizontal/Vertical Payload 30kg/8kg Stroke 500mm for Servo Motor

0 reviews - Write a review

A$299.68

5 + A$290.93

10 + A$282.67

50 + A$274.88

100 + A$267.50

In Stock: 200
Model: LG8-60DL10S3-500
Gross Weight: 7.16kg
Certificated: ISO, CE

Click country for live inventory

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This LG8 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 8kg(17.64lb), a stroke length of 500mm(1.64ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LG series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LG8-60DL10S3-500
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 500mm/s(1.64ft/s)
Maximum Horizontal Payload: 30kg(66.14lb)
Maximum Vertical Payload: 8kg(17.64lb)
Rated Thrust: 694N
Sensor Type: NPN
Number of Sensors:3
Ball Screw Grade: C7
Ball Screw Diameter: Φ16mm
Motor Frame: 60mm Servo Motor(400W)
Stroke Length: 500mm(1.64ft)
Input Shaft Length: 30mm
Input Shaft Diameter: 14mm

Adapting Motors:

1. AC Servo Motors

RS Series: A6-RS400H2A1-M17 and A6-RS400H2B1-M17(with brake)
EC Series: A6-EC400H2A1-M17 and A6-EC400H2B1-M17(with brake)
PN Series: A6-PN400H2A1-M17 and A6-PN400H2B1-M17(with brake)

2. DC Servo Motors

RS Series: DSY-RS400L2A2-M17S and DSY-RS400L2B2-M17S(with brake)
C Series: DSY-C400L2A2-M17S and DSY-C400L2B2-M17S(with brake)

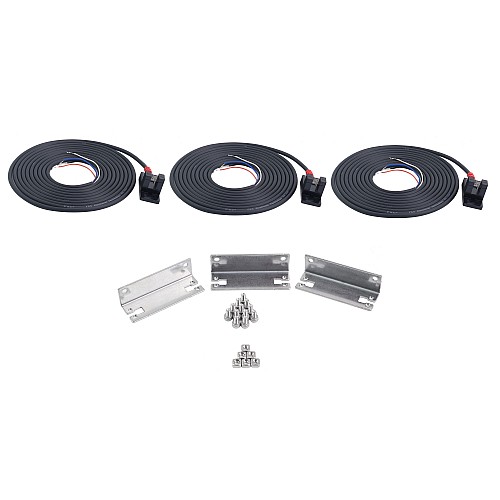

Please note: this linear actuator comes standard with 3 photoelectric sensors. If more are needed, they can be purchased via this link.

Physical Specification
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	30
Inventory Method	Dedicated Inventory
Lead(mm/ft)	10/0.033
Linear Motor Type	Built-in screw
Max. Horizontal Payload(kg/lb)	30/66.14
Max. Speed(ft/s)	1.64
Max. Speed(mm/s)	500
Max. Vertical Payload(kg/lb)	8/17.64
Motor Mounting Flange	60mm Servo Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	694
Stroke Length(mm/ft)	500/1.64
Transmission Method	Ball Screw Driven
