LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 500mm for Closed Loop Stepper Motor

0 reviews - Write a review

A$266.00

5 + A$258.22

10 + A$250.90

50 + A$243.98

100 + A$237.42

In Stock: 200
Model: LG5-23DL103-500
Gross Weight: 6.01kg

Click country for live inventory

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

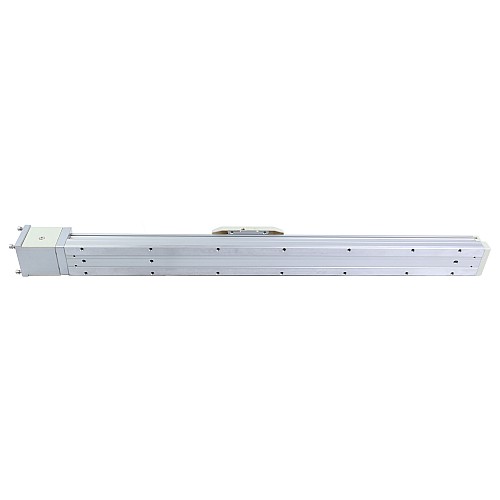

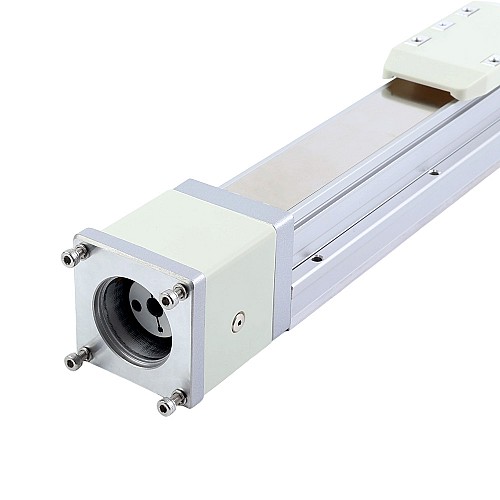

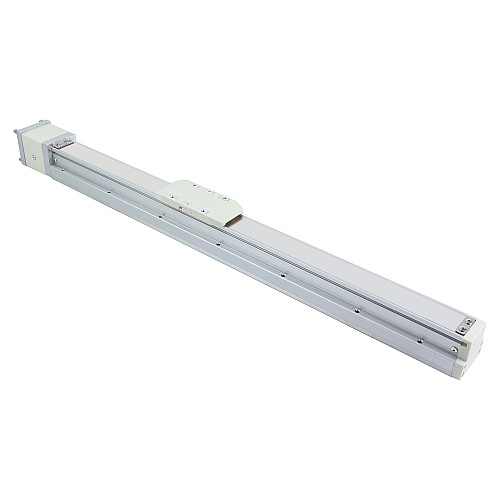

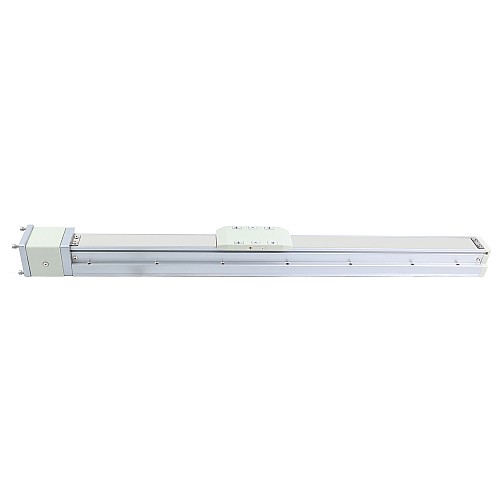

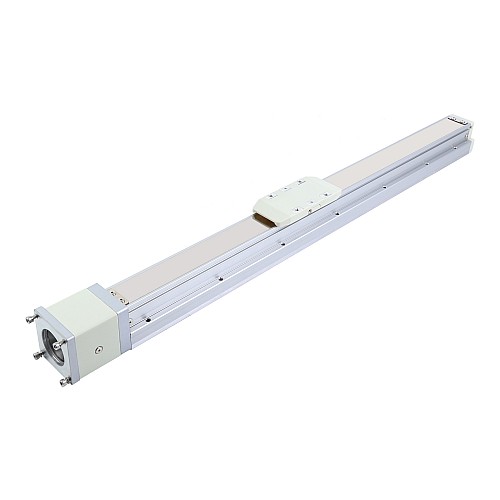

This LG5 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb) and maximum vertical payload of 5kg(11.02lb), a stroke length of 500mm(1.64ft) and maximum speed of 166mm/s(0.54ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LG series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

Part Number: LG5-23DL103-500
Screw Type: Ball Screw
Position Accuracy: ± 0.01mm
Ball Screw Lead: 10mm(0.033ft)
Maximum Speed: 166mm/s(0.54ft/s)
Maximum Horizontal Payload: 15kg(33.07lb)
Maximum Vertical Payload: 5kg(11.02lb)
Rated Thrust: 267N
Sensor Type: NPN
Number of Sensors: 3
Ball Screw Grade: C7
Ball Screw Diameter: Φ12mm
Motor Frame: Nema 23 Closed Loop Stepper Motor
Stroke Length: 500mm(1.64ft)
Input Shaft Length: 21mm
Input Shaft Diameter: 8mm

Adapting Motors: Standard NEMA 23 closed-loop stepper motor with a shaft diameter of 8mm and a shaft length of 21mm.

Please note: this linear actuator comes standard with 3 photoelectric sensors. If more are needed, they can be purchased via this link.

Physical Specification
Input Shaft Diameter(mm)	8
Input Shaft Length(mm)	21
Inventory Method	Dedicated Inventory
Lead(mm/ft)	10/0.033
Linear Motor Type	Built-in screw
Max. Horizontal Payload(kg/lb)	15/33.07
Max. Speed(ft/s)	0.54
Max. Speed(mm/s)	166
Max. Vertical Payload(kg/lb)	5/11.02
Motor Mounting Flange	Nema 23 Closed Loop Stepper Motor
Motor Mounting Position	Direct Connect
Rated Thrust(N)	267
Stroke Length(mm/ft)	500/1.64
Transmission Method	Ball Screw Driven
