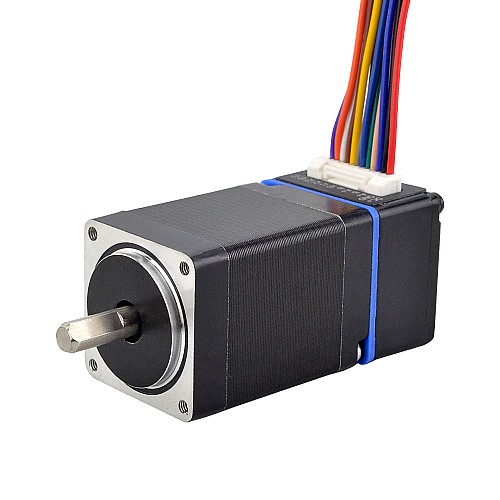

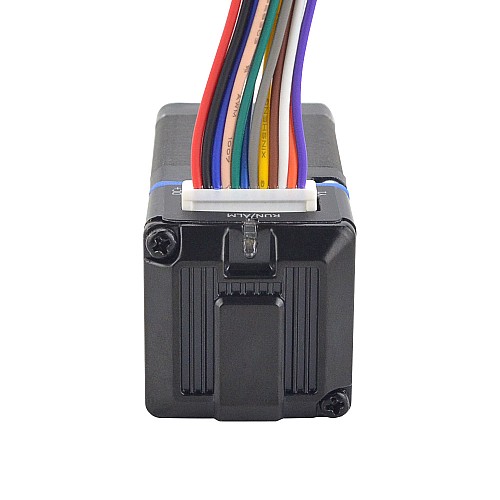

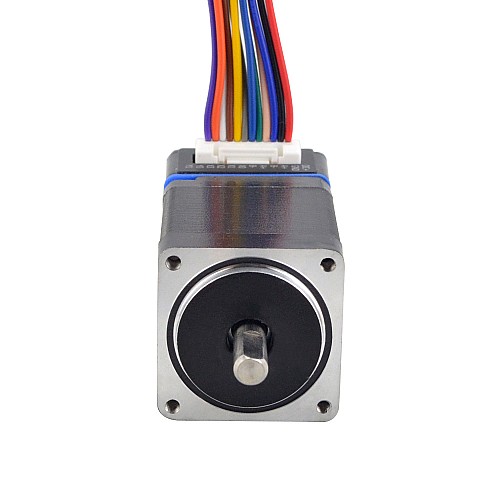

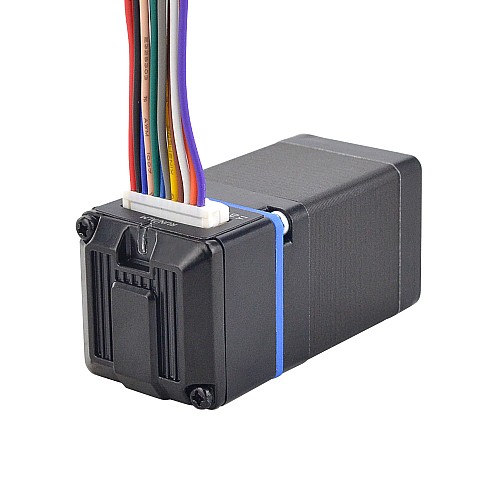

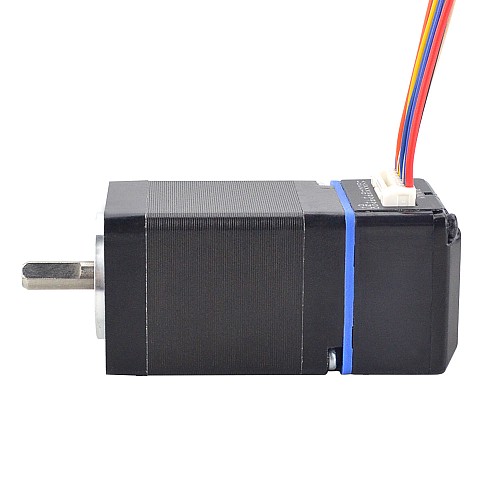

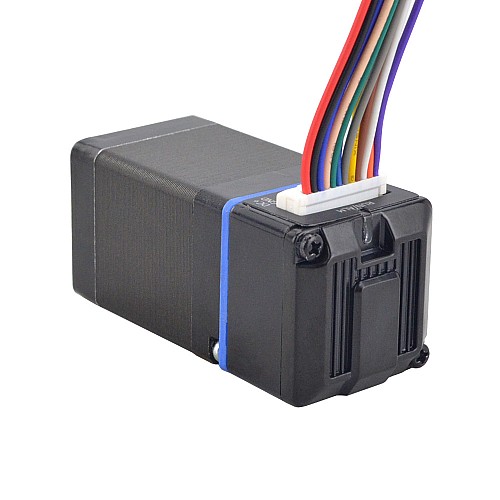

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated RS-485 Stepper Motor 24VDC 5000CPR

Discontinued

ESS Series 7.4Ncm(10.48oz.in) Nema 11 Integrated RS-485 Stepper Motor 24VDC 5000CPR

0 reviews - Write a review

A$0.00

In Stock: 1
Model: ESS11-01PR
Gross Weight: 0.30kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

Features

Using a new 32-bit motor control, dedicated DSP chip
Support standard MODBUS-RS485 protocol, RS485 Communication
Four input and two output function terminals
Small torque attenuation,speed up to 3000rpm
Built-in alarm output, for monitoring and controlling
Intelligently adjust current, reduce vibration, noise and this can increase efficiency by 35%
Voltage range: DC 24V
16 selectable microstep solutions, default microstep resolution: 1000
Excellent high speed performance and rigidity, combined with advantages of servo motor and stepper motor
Over-voltage, under-voltage and over-current protection
Drive and motor integrated, simple wiring

Electrical Specifications:

Manufacturer Part Number: ESS11-01PR
Holding Torque: 7.4Ncm(10.48oz.in)
Input Voltage: 24VDC
Insulation Class: B 130°C[266°F]
Output Peak Current: 0.6 - 1.2A
Logic Input Current: 10mA
Logic Input Voltage: 5V
Encoder Type: Incremental
Encoder Output Type: Differential
Encoder Resolution: 4096CPR
Encoder Output Signal Channels: 2
Isolation Resistance: More than 100MΩ
Dielectric strength: 500VAC for 1MIN.

Physical Specifications:

Frame Size: 20 x 20mm
Body Length: 38.9mm
Shaft Diameter: Φ5mm
D-cut Shaft Length: 10mm
Shaft Length: 15mm

Connector Specification

Housing Model: 502380-1200
Terminal Model: 5023810000

Connection

+DC	GND	PU+	PU-	DR+	DR-	MF+	MF-
Red	Black	Navy	Pink	Green	Blue	Gray	Yellow

Product Type
Product Type	Integrated Stepper Motor
Electrical Specification
Analog Input	No
Control Modes	Modbus RS485
Encoder Feedback	Yes (Closed Loop)
Encoder Resolution	4096
Encoder Type	Incremental
Holding Torque(Ncm)	7.4
Holding Torque(oz.in)	10.48
Input Voltage Reference(V)	24 - 36DC
Input Voltage(V)	24DC
Output Signal Channels	2
Physical Specification
Body Length(mm)	38.9
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	15
