Brushless DC Motor & Driver Kit 25W 36V 4400RPM 0.055Nm(7.79oz.in)

0 reviews - Write a review

A$0.00

In Stock: 1
Model: K-510B36-25W
Gross Weight: 0.83kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

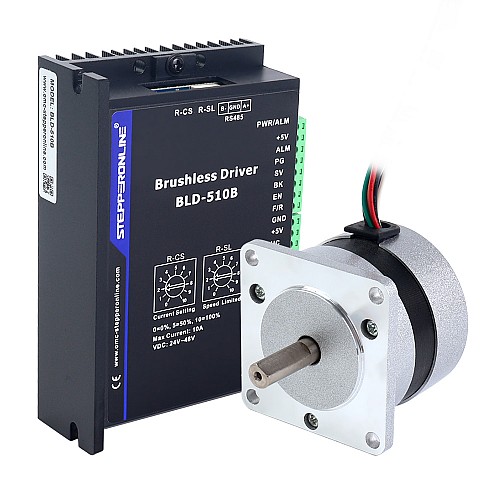

This kit includs:

1 x BLD-510B: Digital Brushless DC Motor Driver 12V-48VDC Max 15.0A 400W

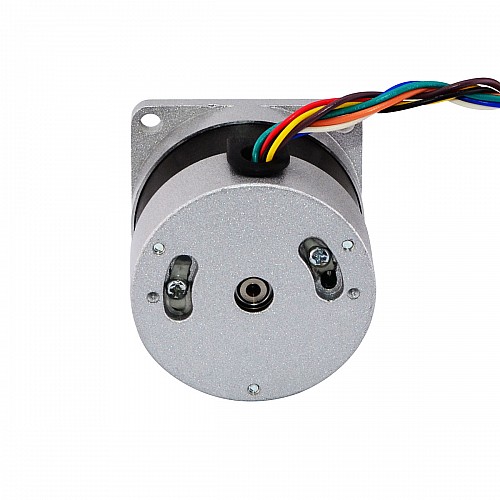

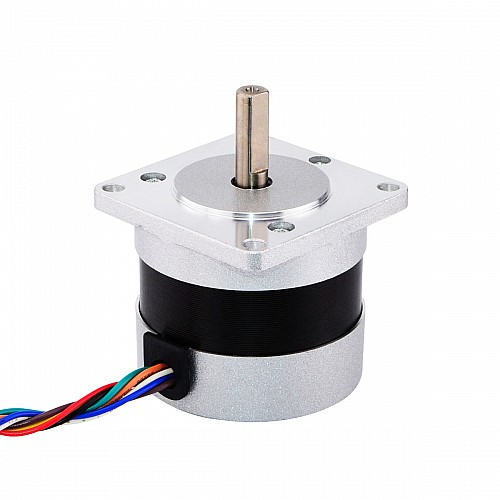

1 x 57BLR43-36-01: 36V 4400RPM 0.055Nm 25W 1.0A Ф57x43mm Brushless DC Motor

Motor Specification

Manufacturer Part Number: 57BLR43-36-01
Phase: 3
Poles: 4
Rated Voltage: 36V
Rated Speed: 4400±10%RPM
Rated Torque: 0.055Nm(7.79oz.in)
Rated Current: 1±10%A
Rated Power: 25W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Frame Size: Φ57mm
Body Length: 43mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Shaft Type: D-cut
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

Driver Specification

Parameters	BLD-510B
Input Voltage(VDC)	12	24	36	48
Continuous Output Current(A)	10.0	8.3	5.5	8.3
Rated Output Power(W)	120	200	200	400
Peak Current(A)	15.0

The recommended power supply is LM50-22B36.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	1
Rated Power(W)	25
Rated Speed(rpm)	4400
Rated Torque(Nm)	0.055
Rated Voltage(V)	36
Physical Specification
Body Length(mm)	43
Frame Size(mm)	Nema 23 (57 x 57)
IP Rating	20
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	25
With Gearbox	No

File	Size
57BLR43-36-01_Full_Datasheet.pdf	111.59KB	Download
57BLR43-36-01.STEP	1.02MB	Download
stepperonline_bldc_software_V2.7.zip	26.54KB	Download
BLD-510B_Manual.pdf	728.14KB	Download
