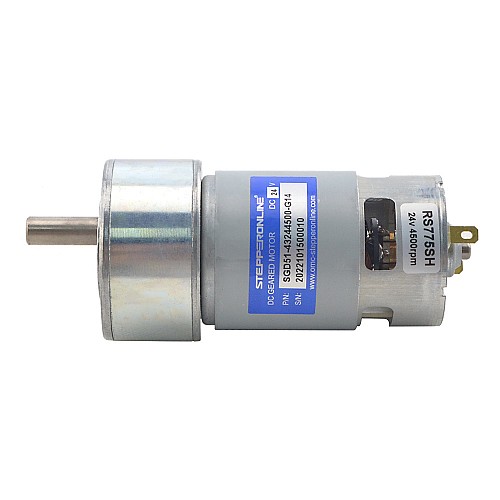

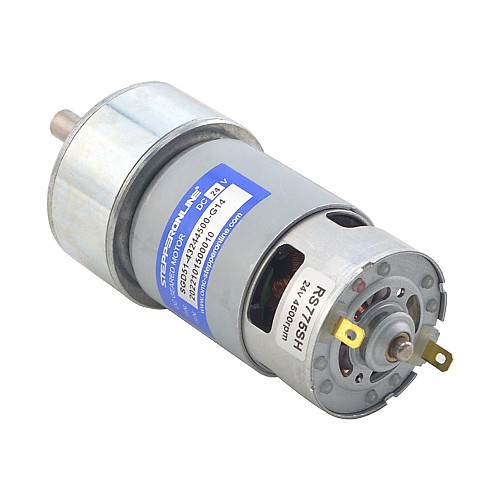

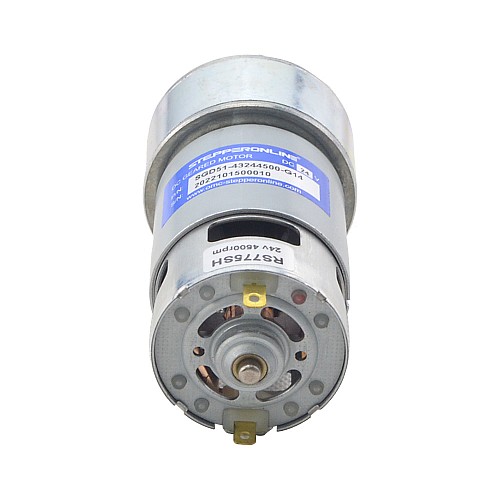

Brushed 24V DC Gear Motor 5Kg.cm/245RPM 14:1 Spur Gearbox

0 reviews - Write a review

A$0.00

In Stock: 1
Model: SGD51-43244500-G14
Gross Weight: 0.62kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

This is a standard 24 volt brushed DC gear motor, generating 5kg.cm of torque at 245rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 14 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

Part Number: SGD51-43244500-G14
Rated Voltage: 24V
Rated Torque: 5kg.cm(69.15oz.in)
Rated Current: <=3500mA
Rated Speed: 245rpm
No-load Current: <=600mA
No-load Speed: 326rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor

Gearbox Specification

Gearbox Type: Spur Gearbox
Gear Ratio: 14 : 1

Physical Specification

Motor Size: Φ42.8 x 68mm
Gearbox Size: Φ50.8 x 26.4mm
Shaft Diameter: Φ8mm
Shaft Length: 21.5mm
D-cut Length: 13mm

Electrical Specification
Motor Type	Brushed DC Motor
Rated Current(A)	3.5
Rated Speed(rpm)	245
Rated Torque(kg.cm)	5
Rated Torque(oz.in)	69.15
Rated Voltage(V)	24
Physical Specification
Gear Ratio(xx:1)	14
Gearbox Shape	Round
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
