AU On Sale - EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor

-29 %

AU On Sale - EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for 10mm Shaft Nema 23 Stepper Motor

0 reviews - Write a review

A$95.02

A$67.63

In Stock: 200
Model: AU-EG23-G20-D10
Gross Weight: 1.20kg
Certificated: ISO, CE, REACH

Click country for live inventory

Ships from

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the Australia are advised to give priority to the Australia local warehouse, as this ensures faster delivery, more convenient after-sales service, and avoids customs clearance, saving both time and cost.
Customers from all countries are also welcome to choose the China warehouse.

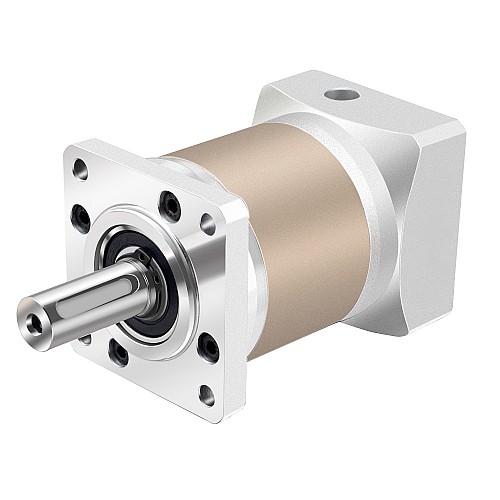

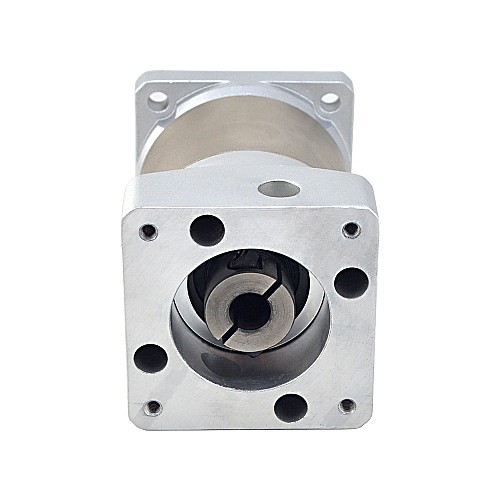

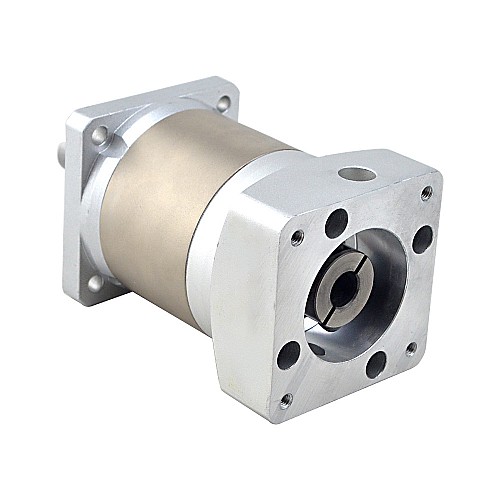

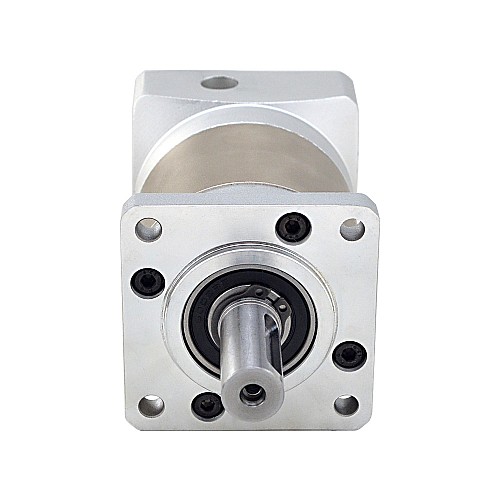

This high-precision planetary gearbox stocked in Australia is belong to EG series gearbox, it with gear ratio 20:1 and a maximum 20arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard 10mm diameter shaft of Nema 23 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG23-G20-D10
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 20:1
Efficiency: 94%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: <=20arcmin
Max.Permissible Torque: 30Nm(265.52lb-in)
Moment Permissible Torque: 60Nm(531.04lb-in)
Noise: <=55dB(1000rpm)/65dB(3000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 60 x 60mm
Gearbox Length: 89.5mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ14mm
Output Shaft Length: 35mm
Input Shaft Diameter: Φ10mm
Input Shaft Length: 12-31mm

Physical Specification
Backlash at No-load	<=20 arcmin
Frame Size(mm)	60 x 60
Gear Material	Alloy Steel
Gear Ratio(xx:1)	20
Gearbox Length(mm)	89.5
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	10
Input Shaft Length(mm)	12 - 31
Inventory Method	Dedicated Inventory
IP Rating	54
Matching Motor Size	Nema 23 Stepper Motor
Output Shaft Diameter(mm)	14
Output Shaft Length(mm)	35
Output Shaft Type	Keyway
Product Series	EG
Weight(g)	1090
